Ring Type Current Transformer 14mm ID – 30/5A, 40/5A | MCE CP45/14

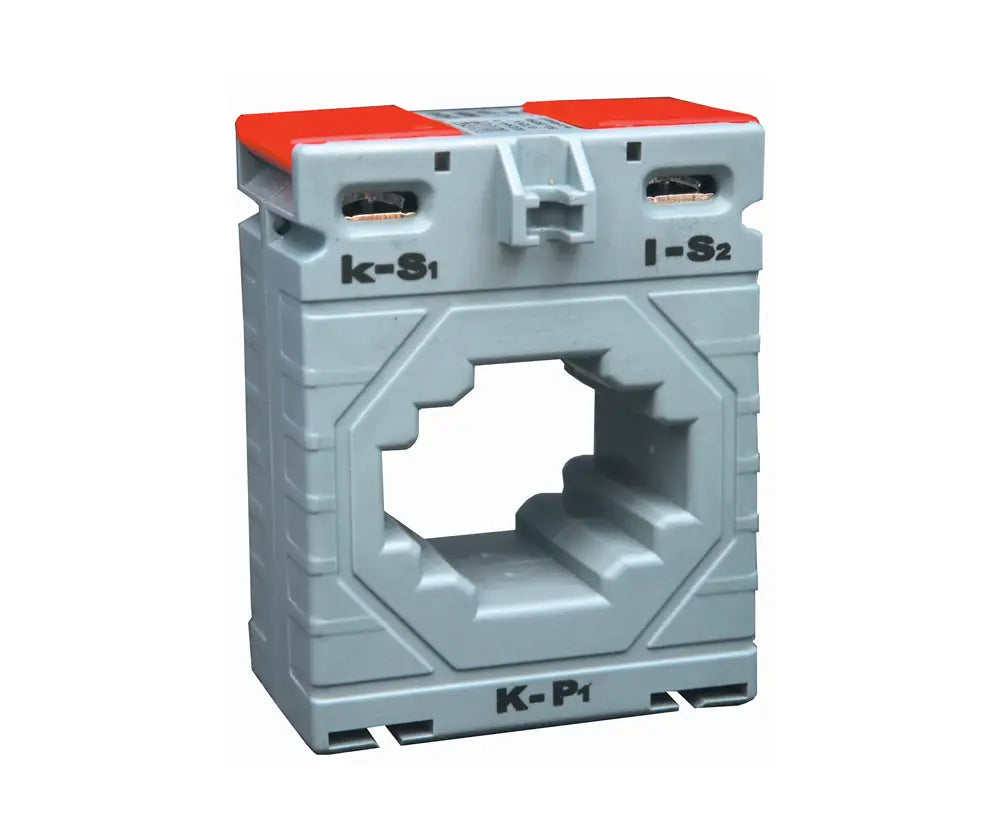

The MCE CP45/14 is a ring type (window) current transformer with a 14mm inner diameter and a 5A secondary output. It is used to step a measured load current down to 5A for ammeters, kWh meters and monitoring equipment, and is suitable for electricians, panel builders and maintenance teams. It is available in 30/5A and 40/5A ratios.

• Application: Current measurement for ammeters, energy meters and monitoring instruments
• Inner diameter: 14mm window for the primary conductor
• Ratios: 30/5A and 40/5A, 5A secondary
• Accuracy: Class 1.0, 2.5VA burden

Key Features

• Ring type design: the primary cable or busbar passes through the centre window
• Standard 5A secondary suits most panel ammeters and meters
• Class 1.0 accuracy for general metering
• Compact body for use in tight panels

Typical Applications

• CT-operated ammeters on small distribution boards
• Energy metering in sub-distribution panels
• Load monitoring on small cables
• Switchboard and panel building

Technical Specifications

What’s Included

• 1 x MCE CP45/14 ring type current transformer (selected ratio)

Please note: Installation fittings, electrical protection, cables, brackets, meters or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Select the ratio based on the maximum load current of the circuit.
• Confirm the primary conductor fits through the 14mm window before ordering.
• Do not leave the secondary open-circuit while the primary is energised; short the secondary or connect the meter.
• Check that the connected meter is rated for a 5A CT secondary and that the burden suits the CT.
• Installation should be carried out by a suitably qualified person.
