Ring Type Current Transformer 40mm ID – 150/5A to 300/5A | MCE CP62/40

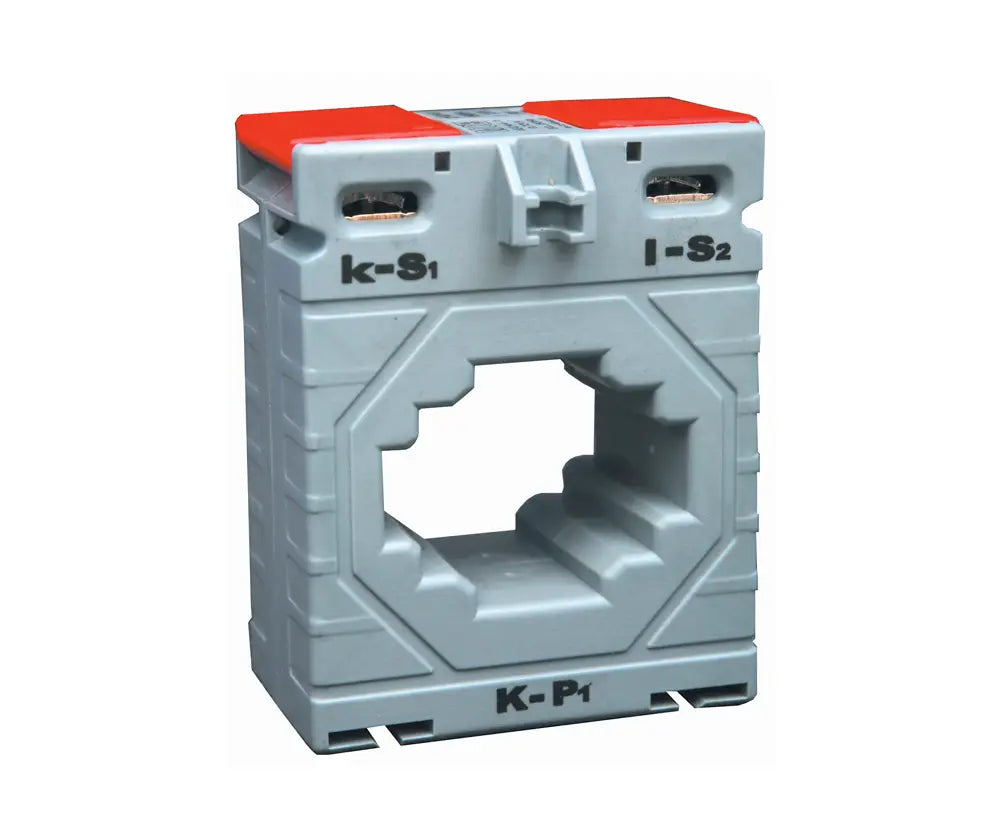

The MCE CP62/40 is a ring type (window) current transformer with a 40mm inner diameter and a 5A secondary output. It steps a measured load current down to 5A for ammeters, kWh meters and monitoring equipment, and suits electricians, panel builders and maintenance teams. Four ratios are available from 150/5A to 300/5A.

• Application: Current measurement for ammeters, energy meters and monitoring instruments
• Inner diameter: 40mm window for the primary conductor
• Ratios: 150/5A, 200/5A, 250/5A and 300/5A, 5A secondary
• Accuracy: Class 1.0, 5VA burden

Key Features

• Ring type design: the primary cable or busbar passes through the centre window
• Larger 40mm window for bigger cables
• Class 1.0 accuracy for general metering
• 5A secondary suits standard panel ammeters and meters

Typical Applications

• CT-operated ammeters on distribution boards
• Energy metering in main and sub-distribution panels
• Load monitoring on feeders and motor circuits
• Switchboard and panel building

Technical Specifications

What’s Included

• 1 x MCE CP62/40 ring type current transformer (selected ratio)

Please note: Installation fittings, electrical protection, cables, brackets, meters or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Select the ratio based on the maximum load current of the circuit.
• Confirm the primary cable or busbar fits through the 40mm window before ordering.
• Do not leave the secondary open-circuit while the primary is energised.
• Check that the connected meter is rated for a 5A CT secondary and that the burden suits the CT.
• Installation should be carried out by a suitably qualified person.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application.

Need help choosing? If you are unsure whether this product is suitable, contact Zisabo with your cable or busbar size, load current and the meter you intend to connect, and we will assist where possible.
