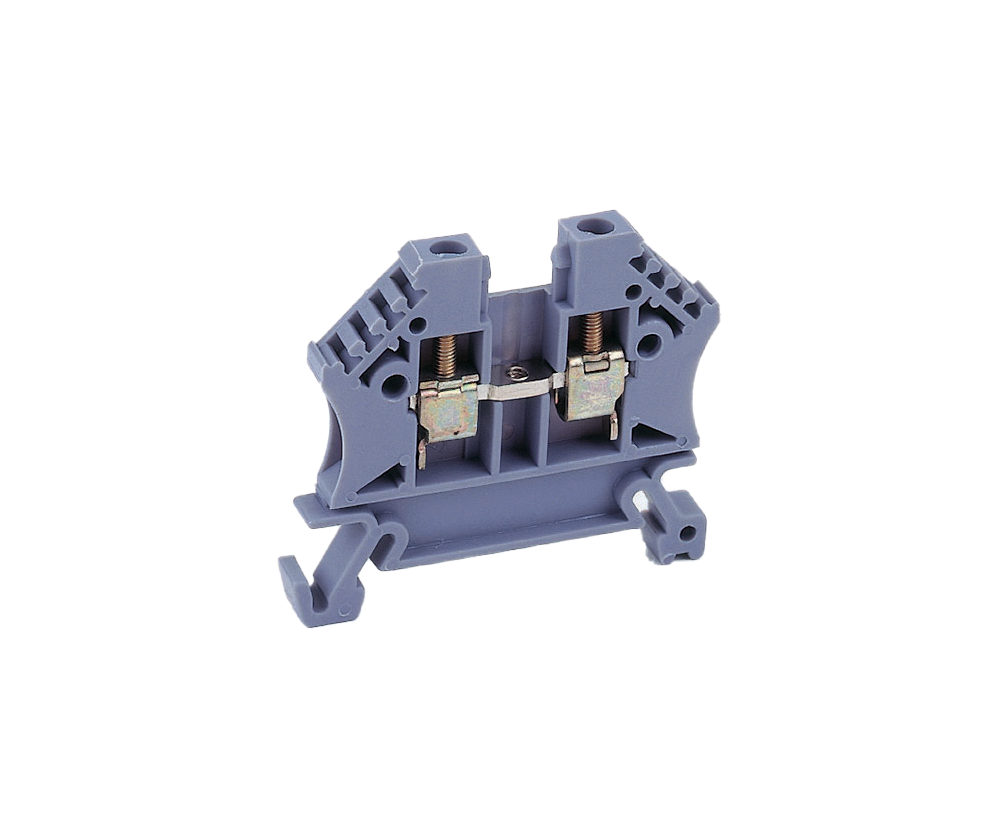

Standard DIN Rail Terminal Block – Polyamide 6.6 | 2.5mm to 70mm | Single Pole

These standard single-pole DIN rail terminal blocks are manufactured from Polyamide 6.6 (PA6.6) and are designed for use in electrical control panels, distribution boards, switchgear, and industrial panel wiring. They mount on standard DIN rail and accept a wide range of conductor cross-sections. Available in sizes from 2.5mm² through to 70mm² to suit a full range of panel wiring applications. The 70mm terminal is fully insulated and does not require an end plate. Sold individually.

• Application: Single-pole DIN rail terminal block for panel wiring and circuit termination
• Material: Polyamide 6.6 (PA6.6)
• Sizes available: 2.5mm / 4mm / 6mm / 10mm / 16mm / 35mm / 70mm
• Mounting: Standard DIN rail snap-on
• Termination: Screw clamp
• Note: 70mm terminal is fully insulated – no end plate required

Key Features

• Polyamide 6.6 body – flame-retardant, heat-resistant engineering plastic suitable for panel environments
• Screw clamp termination for reliable, secure conductor connection
• Snap-on DIN rail mounting for fast installation and removal
• Full size range from 2.5mm² to 70mm² to accommodate control and power wiring in the same terminal range
• 70mm² terminal is fully insulated – no end plate required on this size
• Sold per piece – order exactly the quantity required

Typical Applications

• Control panel and distribution board wiring termination
• Industrial switchgear and motor control centre (MCC) panel building
• Machine wiring and process control panels
• Power and signal circuit termination on DIN rail
• Junction boxes and enclosures requiring DIN rail terminal connections

Technical Specifications

Variant Specifications

What's Included

• 1 x Standard DIN Rail Terminal Block in selected size

Please note: DIN rail, end plates, protective covers, bridge bars, and markers are not included. End plates are not required for the 70mm terminal (fully insulated). For other sizes, use compatible end plates and accessories from the Zisabo terminal block accessory range.

Installation & Compatibility Notes

• Select the terminal size based on the conductor cross-section you need to terminate and the required current rating.
• Ensure the wire cross-section falls within the wire range for the selected terminal size.
• The 70mm terminal (43405) is fully insulated and does not require an end plate at either end of the row.
• Use compatible end plates, protective covers, division plates, bridge bars, and markers from the Zisabo range to complete your installation.
• Mount on standard 35mm DIN rail. Snap into place and terminate conductors with an appropriate screwdriver.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation and correct application. Zisabo supplies quality electrical panel accessories with practical support. Contact us if you need assistance selecting the correct terminal size or compatible accessories for your installation.
