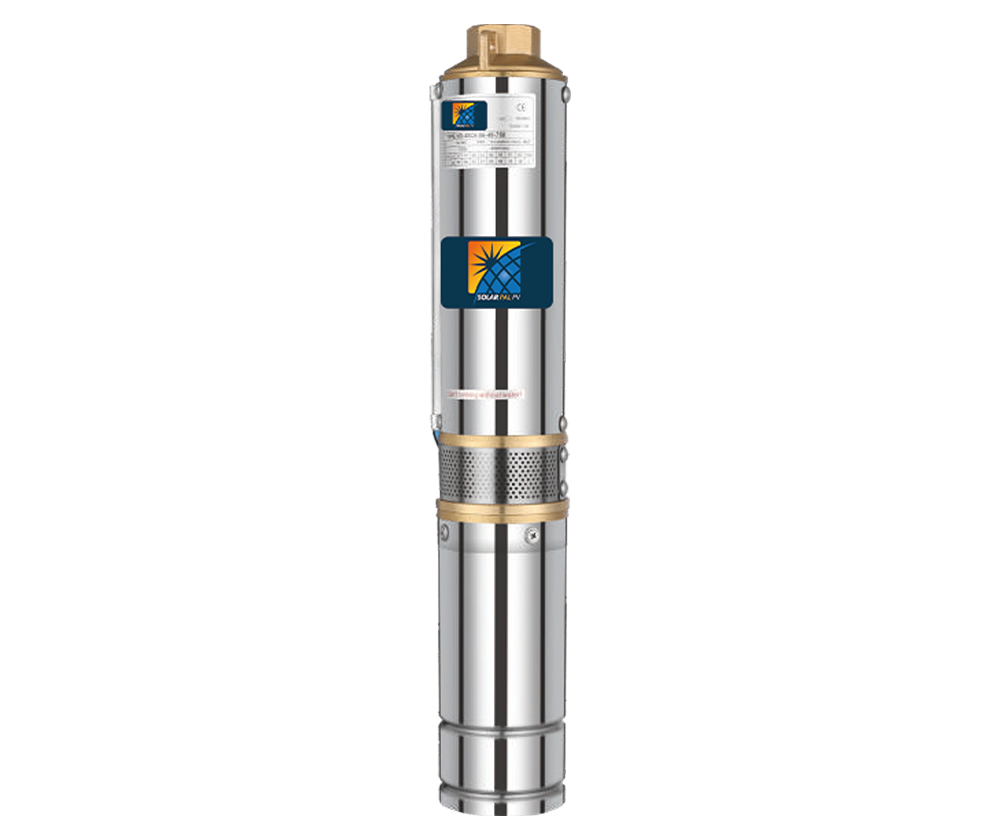

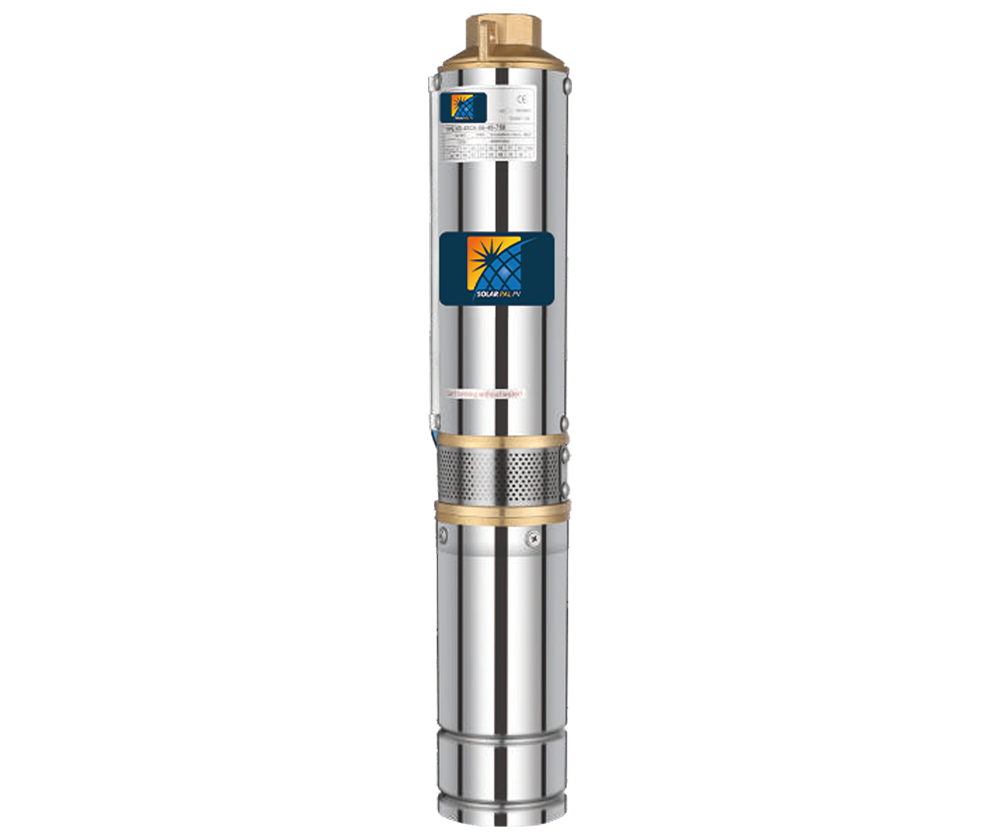

TYPHOON 3" DC Brushless Solar Borehole Pump

The Solar Pal PV TYPHOON is a 3" DC brushless solar borehole pump with a plastic impeller stack, built for off-grid and load-shedding-resilient water supply where higher flow is needed. It runs directly off solar panels via its DC brushless motor, making it a practical choice for farmers, borehole users and properties needing higher-volume water supply without mains power.

• Application: Suitable for higher-flow solar-powered borehole water supply, off-grid pumping and load-shedding backup
• Key specification: 3" diameter, DC brushless pump with plastic impeller, 600W-1500W depending on model
• Borehole compatibility: 3" pump diameter, suitable for 4" and larger boreholes
• Solar panels: Sold separately — TYPHOON-50 needs 3 x 330W panels, TYPHOON-125 needs 8 x 330W panels
• Installation: Supplied complete with an installation pack, 1 x float switch and DC controller

Key Features

• Brushless DC motor with plastic impeller stages for higher flow rates than the CYCLONE screw pump range
• Runs directly from solar panels through the included DC controller — no need for mains AC power or a separate inverter
• Compact 3" body fits standard 4" and larger borehole casings
• Includes an installation pack and float switch (dry-run/tank-full protection) as standard
• Two power options to match different flow and head requirements — TYPHOON-50 for higher flow at lower head, TYPHOON-125 for high head applications

Typical Applications

• Off-grid borehole water supply for homes, farms and rural properties needing higher flow
• Load-shedding-resilient household or farm water supply
• Livestock watering and irrigation from a borehole
• Remote sites with no reliable grid connection

Technical Specifications

What's Included

• 1 x TYPHOON solar borehole pump (model per variant selected)
• 1 x DC controller
• 1 x installation pack
• 1 x float switch

Please note: Solar panels, a weatherproof DC isolator, borehole cable extensions and mounting/wiring accessories beyond the installation pack are not included unless specifically listed above. A weatherproof DC isolator is required to isolate the panels for maintenance — refer to the ODD16 to 32D/E2/E4/E22 range for selection according to your application, or contact Zisabo for guidance.

Installation & Compatibility Notes

• Confirm which model you need based on your required head and flow — TYPHOON-50 for higher flow at up to 50m head, TYPHOON-125 for up to 125m head at lower flow.
• Size your solar panel array to the optimum input voltage range and minimum power shown in the spec table — panels are sold separately, and TYPHOON-125 needs a larger array (8 x 330W panels).
• Confirm your borehole diameter is 4" or larger before ordering — this is a 3" pump.
• A weatherproof DC isolator must be fitted between the panels and controller for safe maintenance isolation.
• Installation should be carried out by a suitably qualified installer.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your required flow, head, borehole diameter and available solar panel setup, and we will assist where possible.
