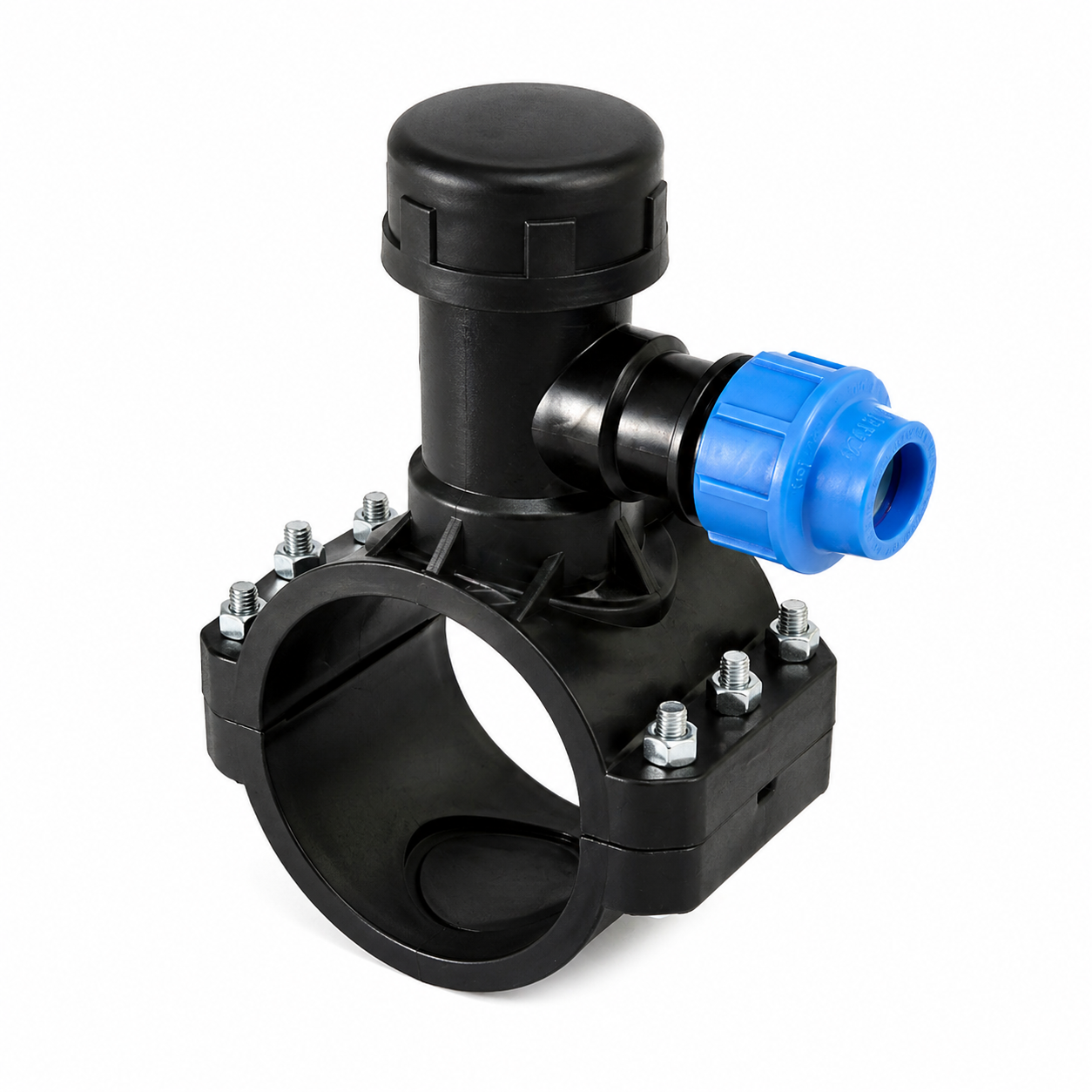

Unidelta Compression Tapping Saddle PN16 6 Bolt | Live-Tapping PE Pipe Saddle
The Unidelta Compression Tapping Saddle PN16 6 Bolt | Live-Tapping PE Pipe Saddle is designed for controlled branch tapping on polyethylene pipe systems, offering a practical solution for irrigation, civil water and commercial pipeline installations.
Best for:
Creating branch connections where a reliable tapping saddle is required on PE pipeline installations.
Creating branch connections where a reliable tapping saddle is required on PE pipeline installations.

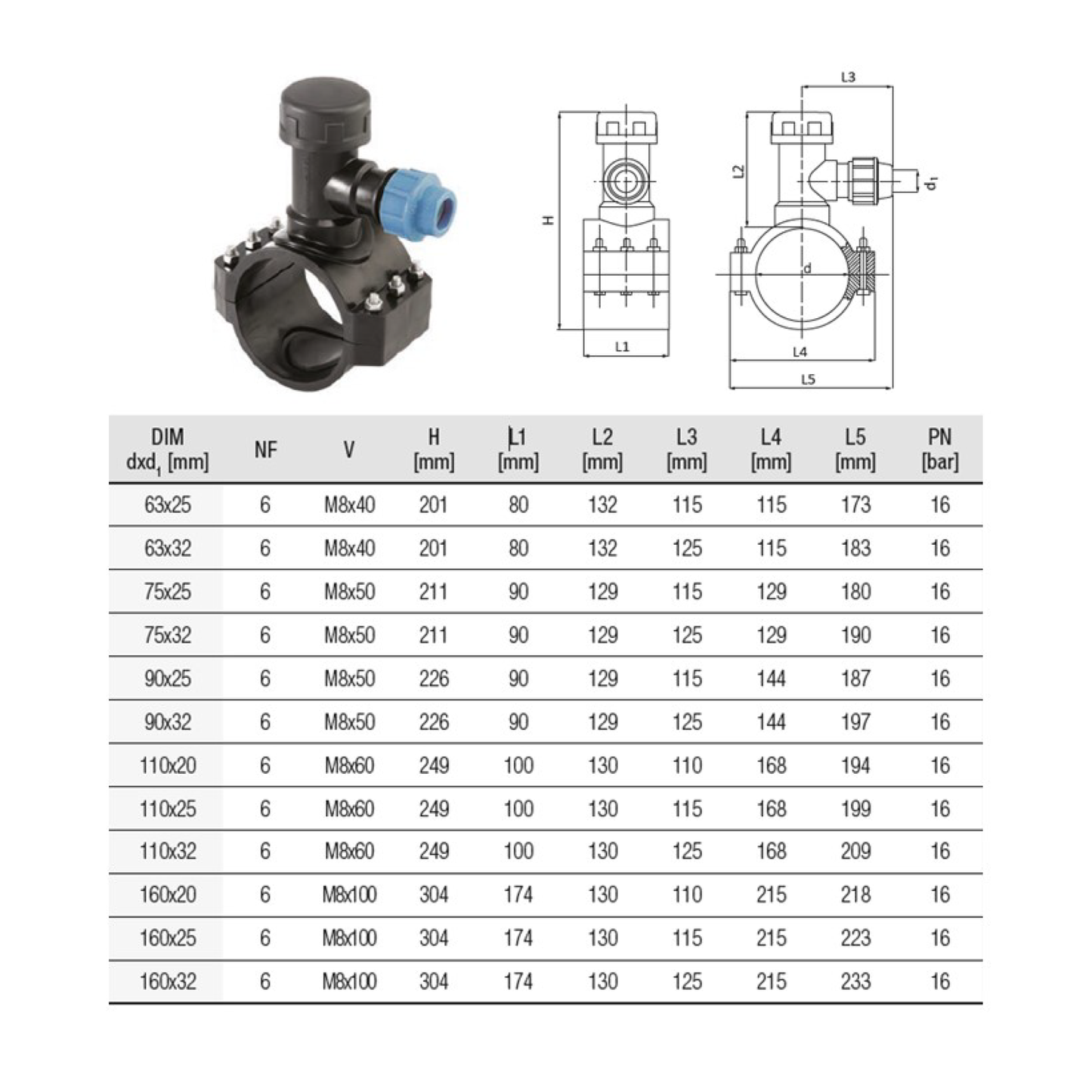

Available sizes:
110mm x 20mm, 110mm x 25mm, 110mm x 32mm, 160mm x 20mm, 160mm x 25mm, 160mm x 32mm
110mm x 20mm, 110mm x 25mm, 110mm x 32mm, 160mm x 20mm, 160mm x 25mm, 160mm x 32mm
Key advantages
- Designed for controlled tapping of PE pipe branches
- Pressure rated: PN16
- Robust polypropylene body with stainless-steel/A4 hardware where applicable
- Ideal for irrigation and civil water systems
Technical details
| Brand | Unidelta |
| Connection system | Mechanical compression connection for PE pipe |
| Pressure rating | PN16 |
| Temperature guide | Up to 45°C within polyethylene pipe application limits |
| Material guide | UV-stabilised polypropylene saddle body with nitrile rubber gasket and metal reinforcing/hardware components where applicable. |
| Standards guide | Manufactured to recognised ISO, UNI and DIN reference standards with potable-water suitability guidance. |
Installation guidance
- Cut the PE pipe square and remove burrs before assembly.
- Insert the pipe fully into the fitting body until it reaches the internal stop.
- Hand-tighten the nut, then tighten securely using the correct fitting tool where required.
- Always pressure-test the installation before covering or commissioning the line.
Guarantees
Guarantees
Manufacturer warranty applies against proven manufacturing defects
Materials
Materials
UV-stabilised polypropylene body
Shipping
Shipping
3 - 5 Business Days
Additional Information
Additional Information
Unidelta compression range for PE pipe systems. Select the correct variant size and thread combination before ordering. Pressure rating and suitability may vary by item and installation conditions.
