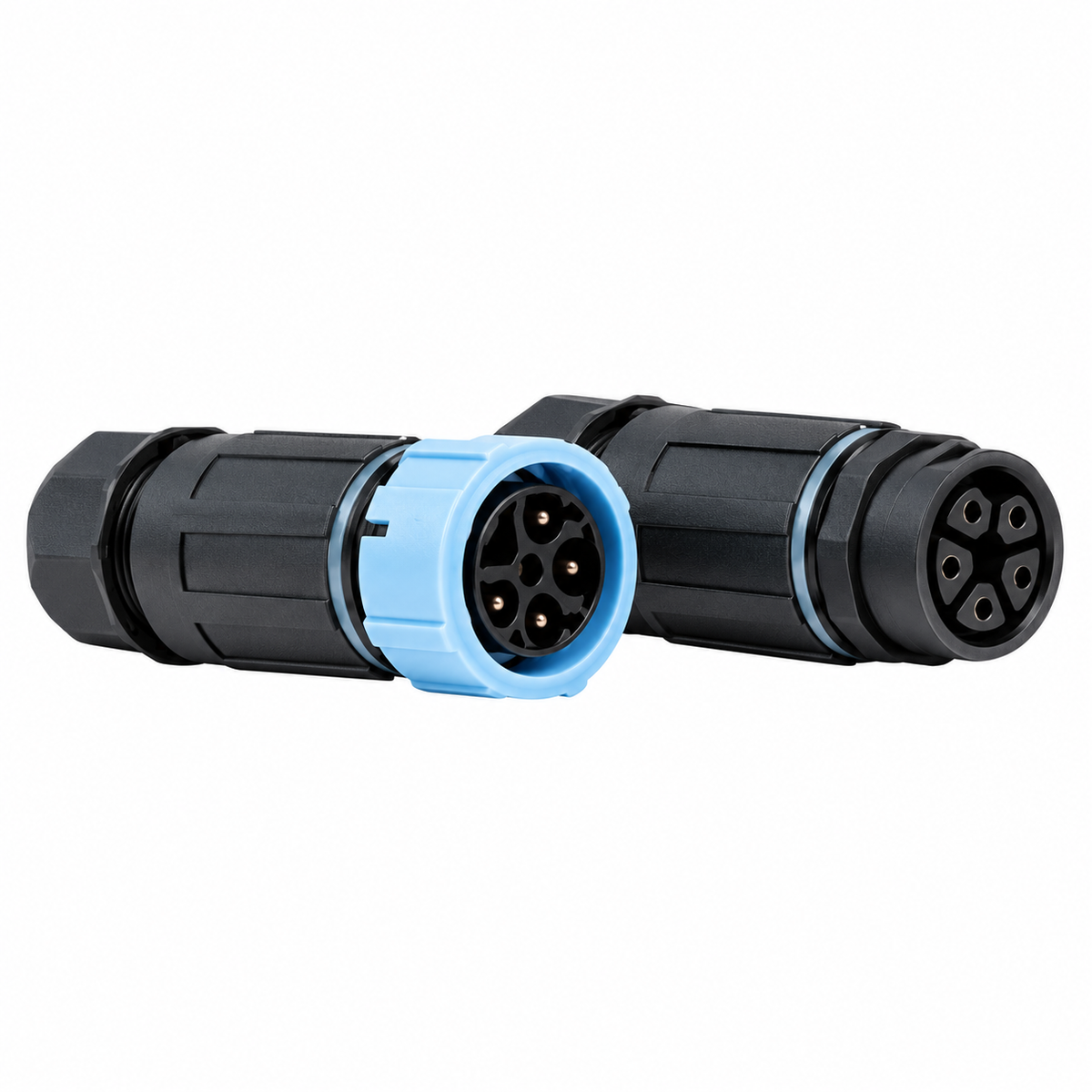

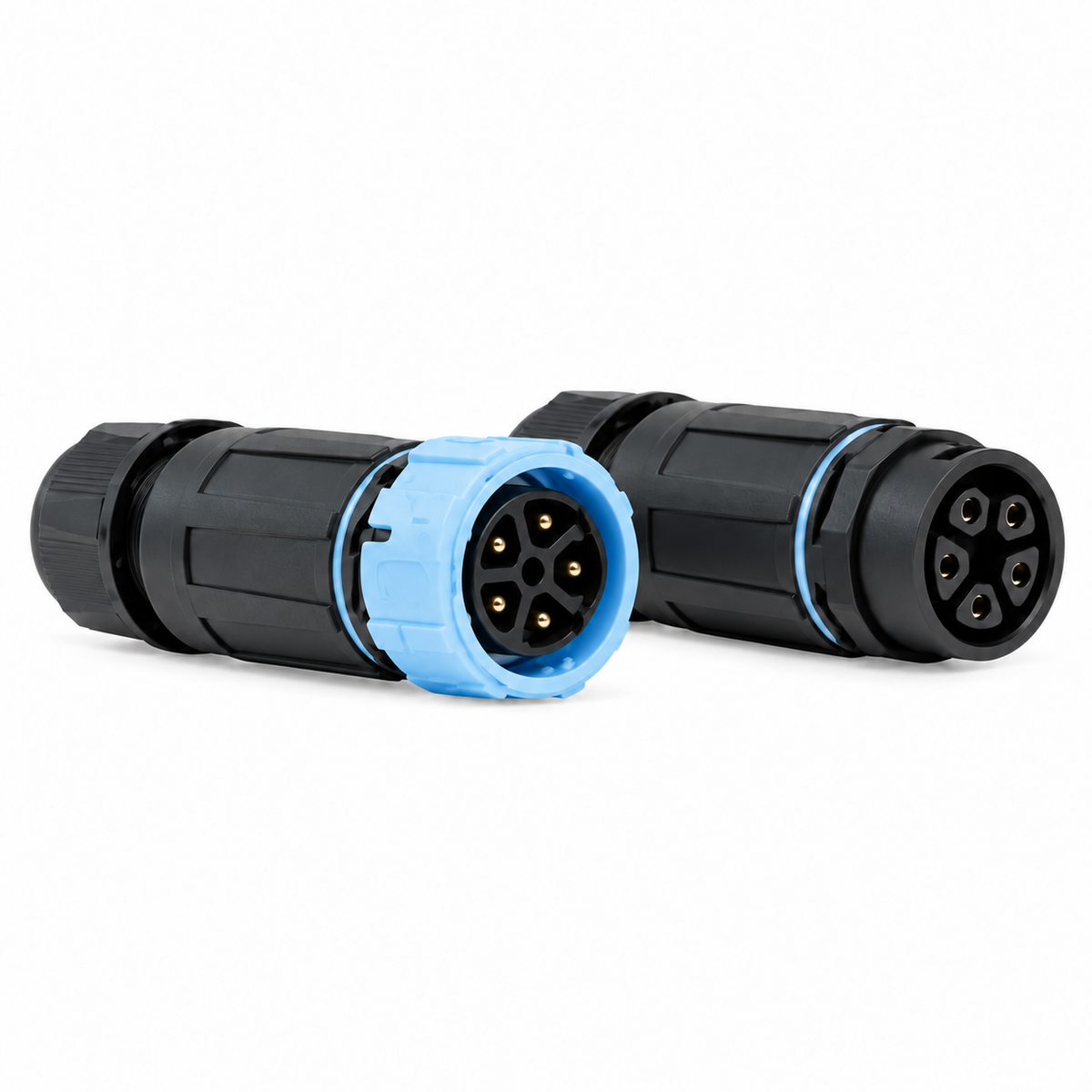

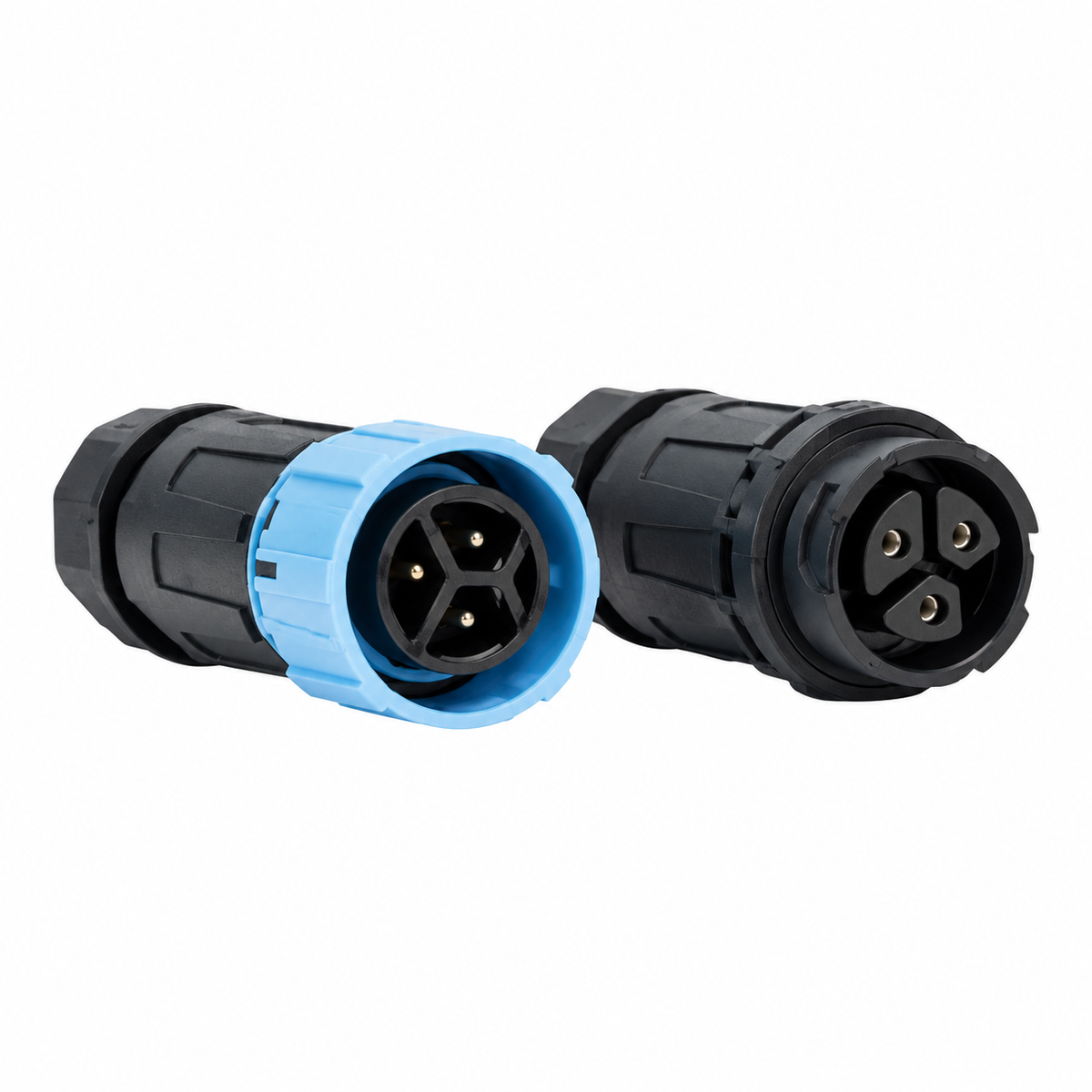

Waterproof Male & Female Quick Cable Connector IP68, 450V 24A | MCE WCC-MFM Series

The MCE WCC-MFM Series is a male and female plug-in quick cable connector pair with IP68 waterproof protection. It lets the buyer connect and disconnect a cable run quickly, which suits electricians, installers and maintenance teams working on outdoor lighting, pool and garden equipment, pumps and other wet locations. Available in 3, 4 and 5 connection versions.

• Type: Male and female plug-in connector pair
• Protection: IP68 sealed connection for wet and outdoor locations
• Rating: 450V, 24A
• Connections: 3, 4 or 5 pin versions
• Wire size: 0.5mm² to 2.5mm²
• Temperature range: -40°C to +105°C

Key Features

• Plug-in male and female design allows equipment to be disconnected without cutting the cable
• IP68 sealing helps keep moisture and dust out of the connection
• Accepts conductors from 0.5mm² up to 2.5mm²
• Cable gland sizes of 20mm (3 pin) and 25mm (4 and 5 pin)
• Quick installation with no soldering required

Typical Applications

• Detachable connections on outdoor and garden lighting
• Pool, pond and water feature equipment
• Pump and irrigation controller connections
• Domestic, commercial or light industrial equipment connections

Technical Specifications

What's Included

• 1 x MCE WCC-MFM male and female quick cable connector in the selected model (3, 4 or 5 pin)

Please note: Cable, electrical protection, tools and any other accessories are not included unless specifically listed above.

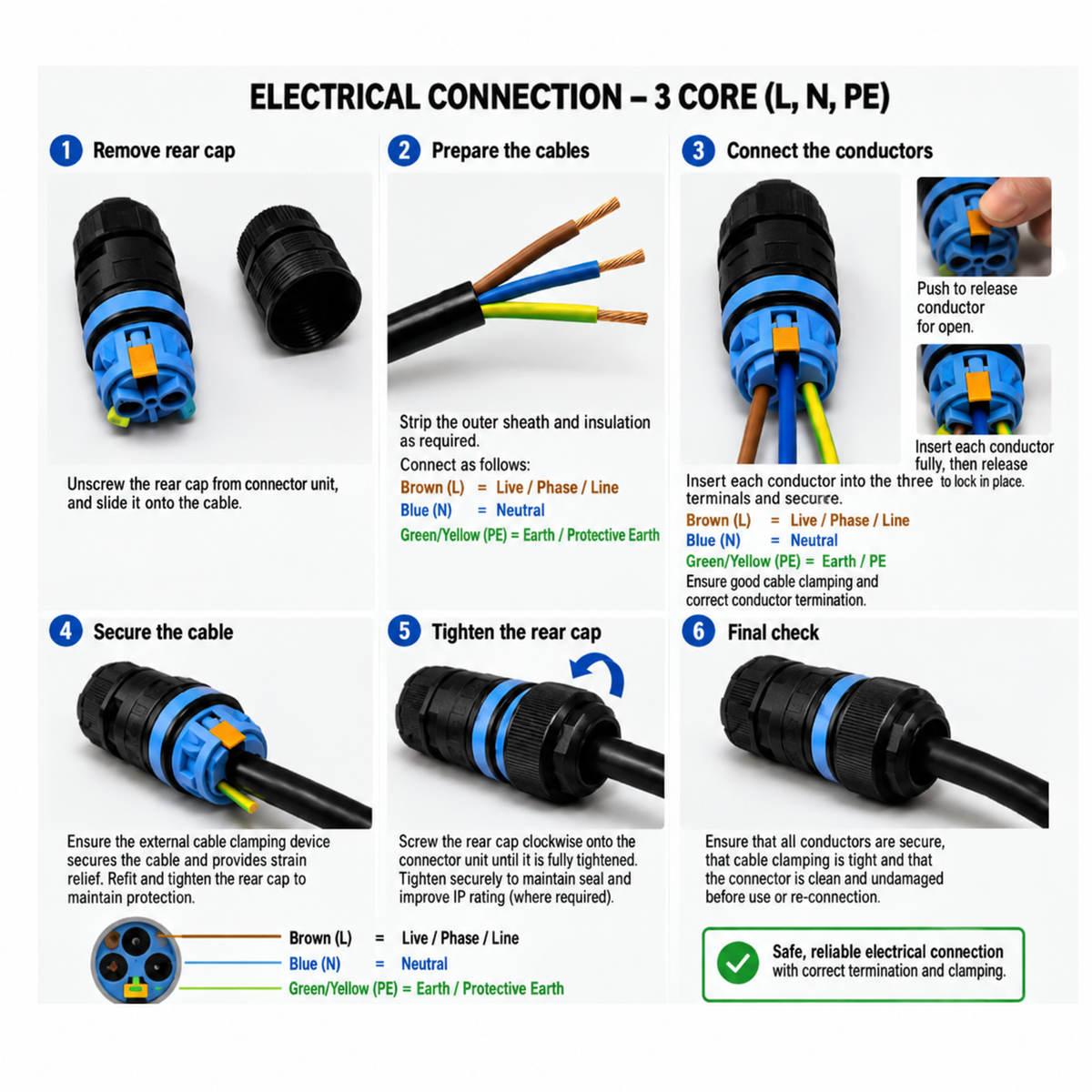

Installation Guide

Electrical connection – 3 core (L, N, PE) example:

1. Remove rear cap: Unscrew the rear cap from the connector unit and slide it onto the cable.
2. Prepare the cables: Strip the outer sheath and insulation as required. Brown (L) = Live / Phase / Line, Blue (N) = Neutral, Green/Yellow (PE) = Earth / Protective Earth.
3. Connect the conductors: Push the release tab to open the terminal, insert each conductor fully into its terminal, then release to lock it in place. Ensure good cable clamping and correct conductor termination.
4. Secure the cable: Ensure the external cable clamping device secures the cable and provides strain relief. Refit and tighten the rear cap to maintain protection.
5. Tighten the rear cap: Screw the rear cap clockwise onto the connector unit until it is fully tightened. Tighten securely to maintain the seal and improve the IP rating (where required).
6. Final check: Ensure all conductors are secure, the cable clamping is tight and the connector is clean and undamaged before use or re-connection.

Please note: The guide shows a 3 core example. For 4 and 5 pin versions, terminate each conductor in the same way and make sure every conductor is in the correct terminal. Installation should be carried out by a suitably qualified person with the supply isolated.

Installation & Compatibility Notes

• Select the version with the same number of connections as your cable cores (for example, 3 pin for Live, Neutral and Earth).
• Check that your cable outer diameter falls within the gland range for the model selected, and that conductor size is between 0.5mm² and 2.5mm².
• Confirm the circuit voltage and current are within 450V and 24A.
• Installation should be carried out by a suitably qualified person, with the supply isolated, where electrical work is required.
• Make sure the connector is fully locked and the cable gland tightened so the IP68 seal is effective.
