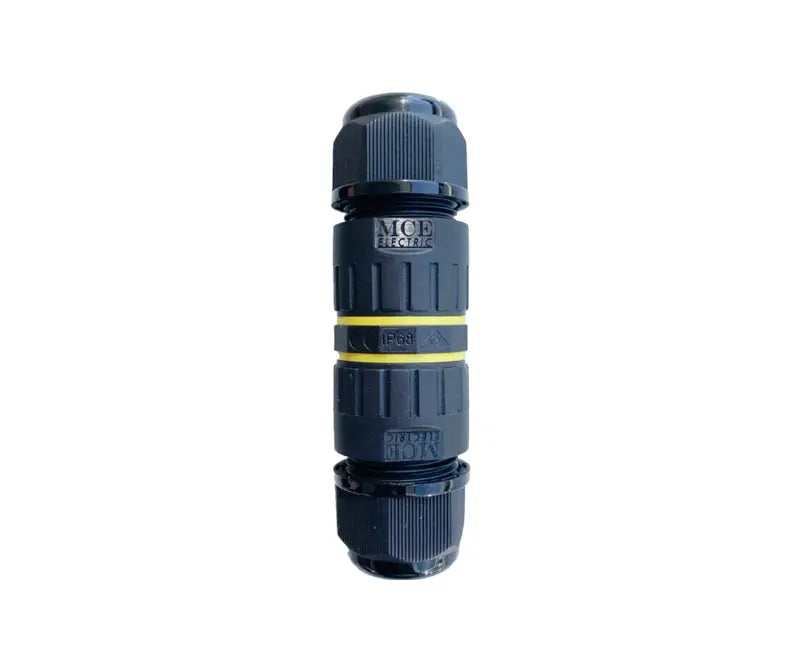

Weatherproof Cable Connector IP68 2 to 5 Pole, 400V | MCE WCC

The MCE WCC weatherproof cable connector is an IP68-rated connector for joining cables in damp or outdoor locations. It is suitable for electricians, installers and maintenance teams working on outdoor lighting, pumps, garden and exposed cable runs, and is available with 2 to 5 contacts and M16, M20 or M25 gland sizes.

• Protection: IP68
• Voltage rating: 400V
• Contacts: 2 to 5 (model dependent)
• Gland sizes: M16, M20 and M25
• Operating temperature: -40°C to +105°C

Key Features

• IP68 rating suits wet and outdoor connection points
• Gland-sealed cable entry sized to the cable outer diameter
• Multiple contact and current options so the connector can be matched to the circuit
• Wide operating temperature range

Typical Applications

• Outdoor and garden lighting connections
• Pump and submersible cable joints
• Exposed or damp cable runs
• Domestic, commercial or light industrial use

Technical Specifications

What’s Included

• 1 x MCE WCC weatherproof cable connector in the selected variant

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Check the cable outer diameter, conductor size and number of cores against the variant before ordering.
• Check that the circuit voltage and current are within the connector rating.
• Follow the supplier instructions so the gland seals correctly, as IP68 depends on correct assembly.
• Electrical connections should be made by a suitably qualified person.

Warranty & Support

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? Contact Zisabo with your cable type, core count, voltage and current and we will assist where possible.
