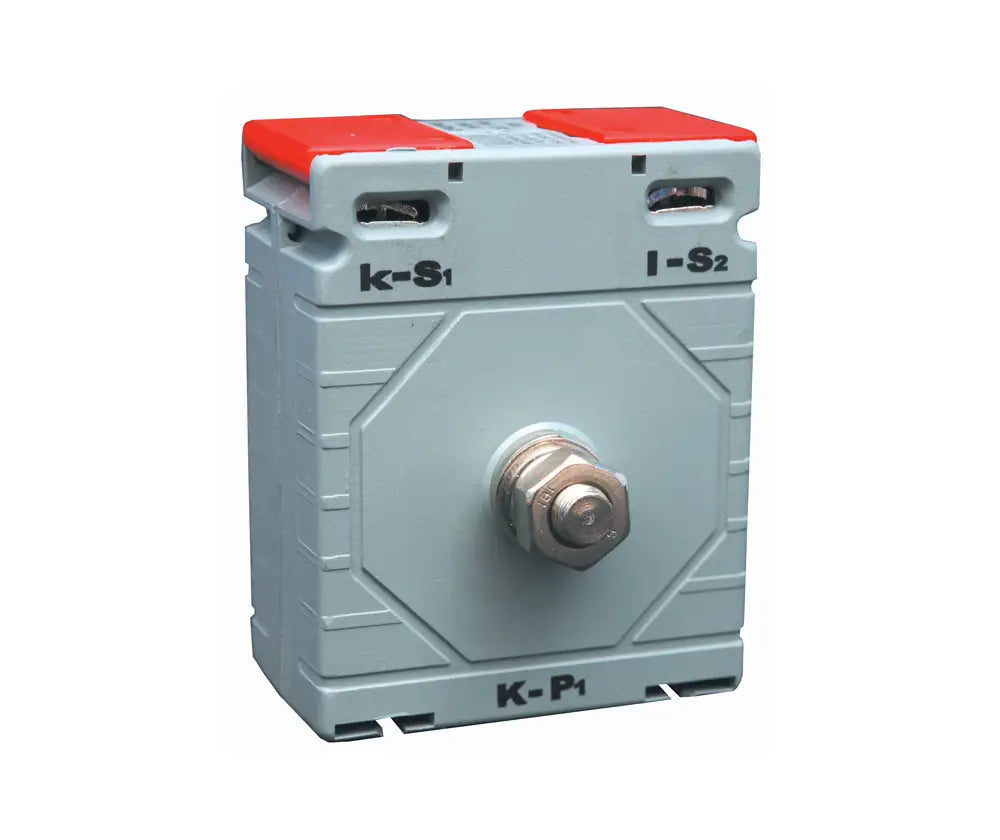

Wound Primary Current Transformer 5/5A to 25/5A, 1.5-2.5VA | MCE CP62/WS

The MCE CP62/WS is a wound primary (primary round) current transformer with a 5A secondary, available in 5/5A, 10/5A, 15/5A, 20/5A and 25/5A ratios. It steps a primary current down to 5A so that ammeters, meters and other instruments can be connected safely. It suits electricians, panel builders and metering installers working with low-current circuits.

• Application: Current measurement for 5A secondary instruments
• Ratios: 5/5A, 10/5A, 15/5A, 20/5A, 25/5A
• Burden: 1.5VA or 2.5VA, depending on ratio
• Accuracy class: 3.0 or 1.0, depending on ratio
• Secondary: 5A

Key Features

• Five low-current ratios in the same CP62/WS body
• Wound primary design for low-current circuits
• Class 1.0 accuracy on the 15/5A, 20/5A and 25/5A ratios (per supplier)

Typical Applications

• Feeding CT-operated ammeters and meters
• Panel and switchboard current measurement
• Small motor and load monitoring

Technical Specifications

What’s Included

• 1 x MCE CP62/WS current transformer (ratio as selected)

Please note: Meters, ammeters, cable and mounting accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Choose a ratio that suits the maximum current you want to measure and the scale of your 5A instrument.
• Never leave a current transformer secondary open circuit while the primary is carrying current.
• Installation must be carried out by a suitably qualified electrician.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you are unsure which ratio suits your installation, contact Zisabo with your load current and the instrument you plan to connect, and we will assist where possible.
