WPE Stainless Steel Filter Housing | Industrial Grade
WPE Stainless Steel Filter Housing | Industrial Grade
Couldn't load pickup availability

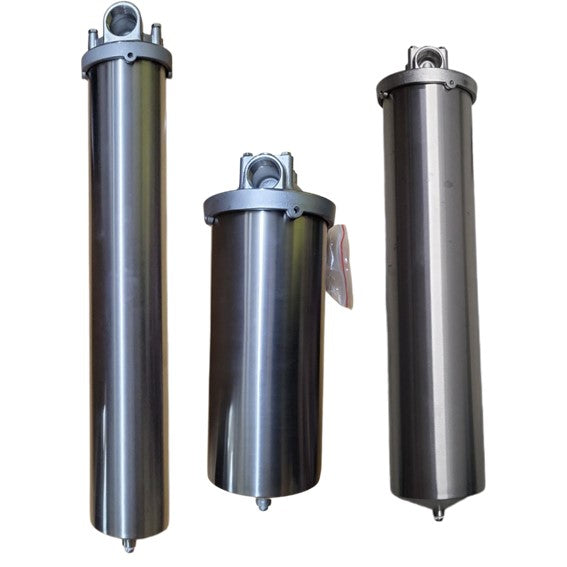

A 304 stainless steel filter housing designed for industrial applications where durability, heat resistance and outdoor installation matter.
Key benefits
- 304 stainless steel construction
- Higher temperature rating than plastic housings
- Suitable for demanding industrial environments
- Supplied with mounting bracket (on stainless housings)
Specifications
- Housing type: Stainless steel filter housing
- Material: 304 stainless steel
- Length: 10 to 20 inch
- Max pressure: 10 bar
- Max temperature: 90°C
Ideal for
- Industrial filtration
- Installations exposed to sunlight
- Higher temperature applications
Guarantees
Guarantees
Store Refund Policy
Materials
Materials
Shipping
Shipping
2 - 7 working days
Additional Information
Additional Information
Stainless steel housings are mainly used in industrial applications. Were there may be pipe hammer or hydraulic shock from fast opening and closing valves and were units need to be installed in direct sunlight.
Head and body: 304 stainless steel.
304 stainless steel is not recommended for brine or sea water (316 stainless steel must be used for brine or Sea water)
Filter housing must be protected against freezing, operate up to 90° and 10bars
Housings must be protected from water hammer
Standard Diameter:
Inlet and Outlet: 10 Inch - 1/2" and 3/4" BSP Threaded; 20 Inch - 3/4" BSP Threaded
Max Flow Rate: 10 Inch - 19LPM; 20 Inch - 38 LPM
Large Diameter:
Inlet and Outlet: 10 Inch/20 Inch - 1" BSP Threaded
Max Flow Rate: 10 Inch/20 Inch - 85LPM
