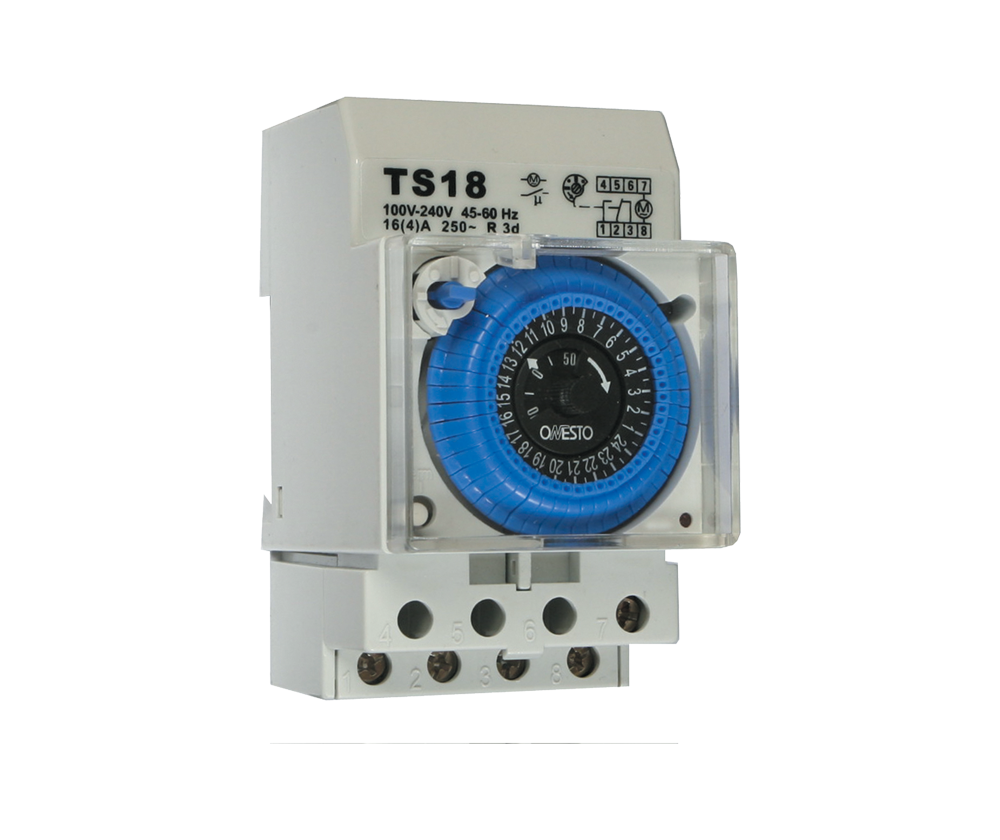

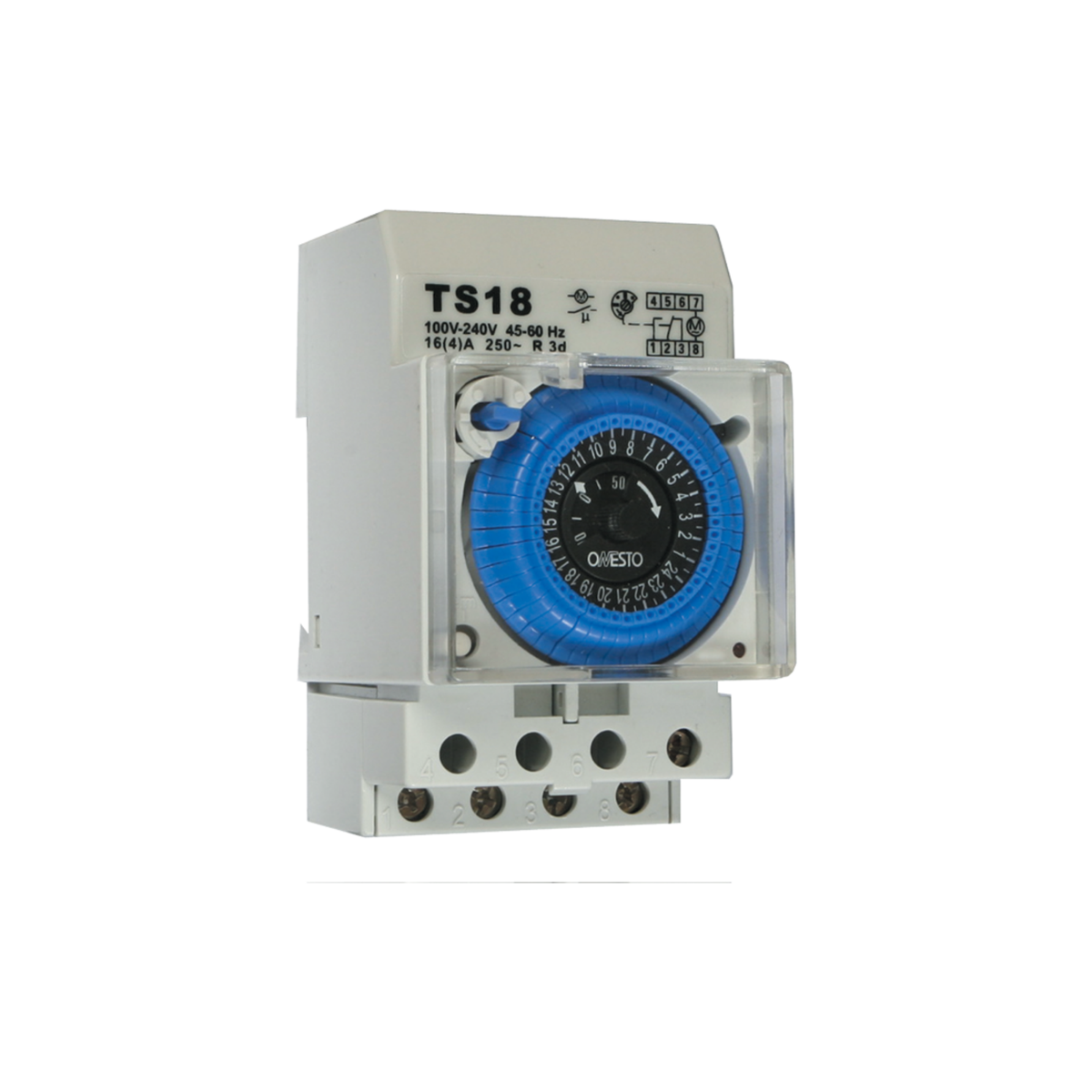

24 Hour Analog Time Switch, DIN Mount

The MCE Electric TS18 series is a 24-hour dial-programmed analog time switch for automatic on/off control of mains-powered equipment, available with or without a power reserve to keep time through an outage. It suits homeowners, contractors and installers who want a simple, reliable mechanical timer without digital programming.

• Application: Automatic on/off switching for geysers, pumps, lighting and similar loads on a 24-hour cycle
• Key specification: 24-hour program dial, programmable every 30 minutes, 16A@230V (resistive)
• Power reserve: Choose No Reserve (TS18A) or 200 Hour Reserve (TS18) to suit whether load-shedding/outages are a concern
• Mounting: DIN rail

Key Features

• Simple mechanical dial programming — no digital menus to navigate
• Programmable in 30-minute steps across a 24-hour cycle
• 1 changeover switching contact, 16A@230V (resistive) rating
• 200 Hour Reserve variant (TS18) keeps the correct time-of-day through outages of up to 200 hours; the No Reserve variant (TS18A) resets and needs re-setting after a power cut
• DIN rail mount for standard distribution board or enclosure installation

Typical Applications

• Geyser automatic on/off scheduling
• Pump and irrigation timing control
• Lighting and general load scheduling on a daily cycle

Technical Specifications

What's Included

• 1 x 24-hour analog time switch (power reserve per variant selected)

Please note: DIN rail enclosure, wiring accessories and electrical protection are not included unless specifically listed above.

Installation & Compatibility Notes

• Choose TS18 (200 Hour Reserve) if you experience frequent power outages/load-shedding and don't want to manually reset the time after every outage; choose TS18A if reserve isn't needed.
• Confirm the switched load's current draw is within the 16A resistive rating before ordering.
• Installation should be carried out by a suitably qualified person.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this timer is correct for your application, contact Zisabo and we will assist where possible.
