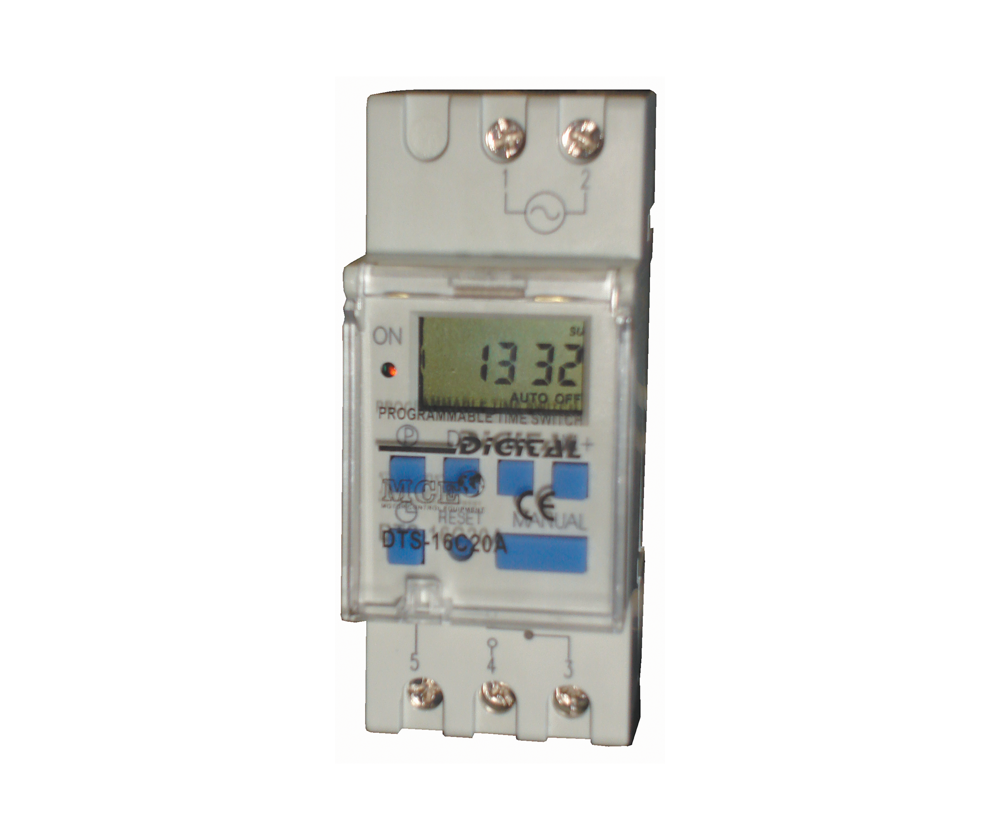

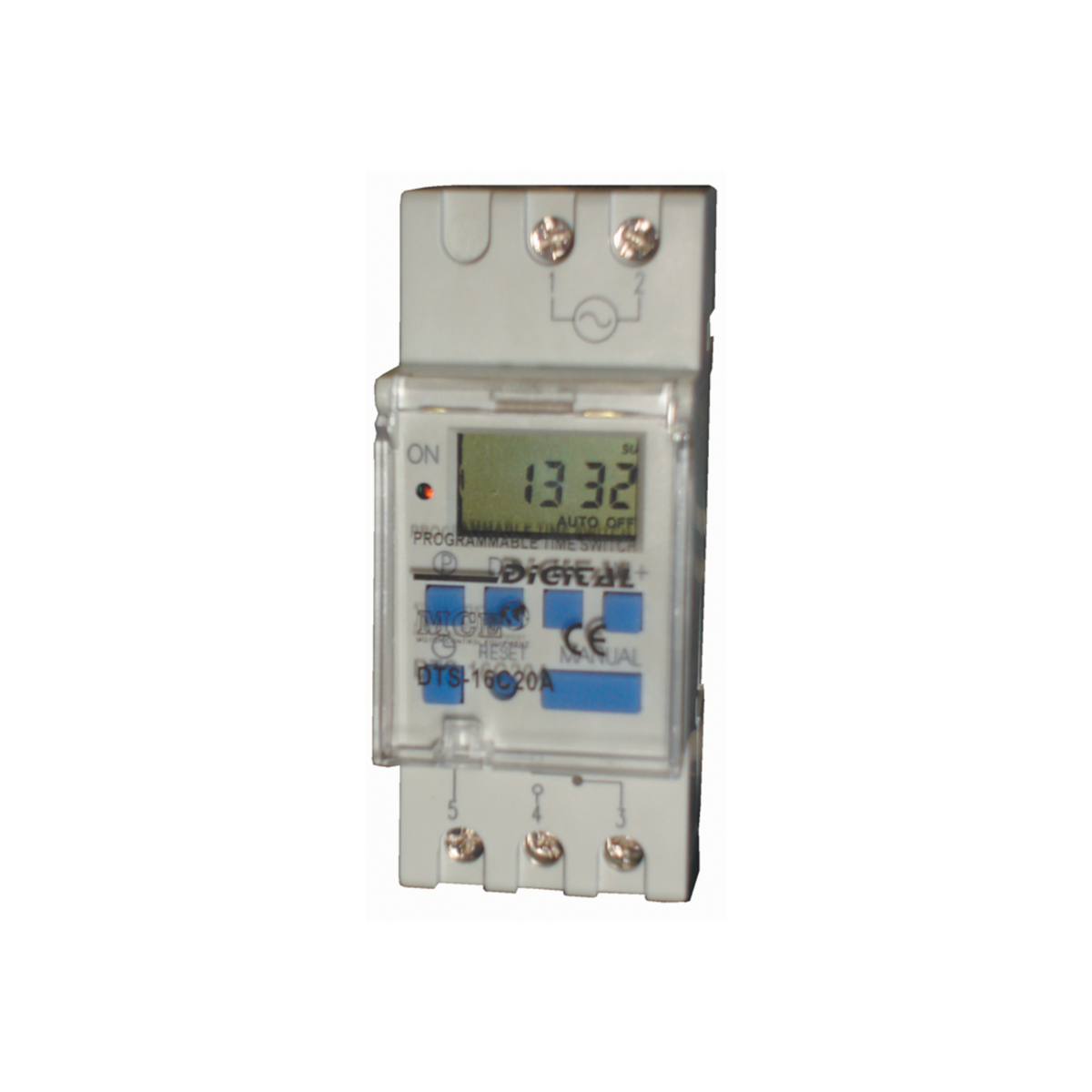

7 Day Digital Timer, 16A 12VDC

The MCE Electric DTS-16C16A-AD is a 7-day digital timer built for 12VDC installations, making it suitable for solar and other low DC voltage systems where mains-voltage timers don't apply. It suits installers automating DC-powered equipment such as solar lighting, low-voltage pumps or 12V control circuits.

• Application: Automatic on/off switching for 12VDC solar or low-voltage DC installations
• Key specification: 16A, 12VDC, 7-day programmable, DIN mount
• Power reserve: 150 hours (keeps time during a power outage)
• Programming: 1 channel, 16 On & 16 Off operations, 18 pulse and countdown functions

Key Features

• Built specifically for 12VDC systems — suitable for solar or other low-voltage DC installations rather than mains AC timers
• 150-hour power reserve keeps the programmed schedule and time-of-day through a power interruption
• 1-minute minimum switching time, with 16 On and 16 Off operations across a 7-day program
• 18 pulse and countdown functions plus an LCD display for straightforward programming
• DIN rail mount for standard distribution board or enclosure installation

Typical Applications

• Solar lighting and low-voltage DC equipment scheduling
• 12V pump or valve automatic control
• Off-grid and solar system automation

Technical Specifications

What's Included

• 1 x DTS-16C16A-AD 12VDC digital timer

Please note: DIN rail enclosure, wiring accessories and electrical protection are not included unless specifically listed above.

Installation & Compatibility Notes

• This timer is rated for 12VDC only — do not connect to mains AC voltage.
• Confirm the switched load's current draw is within the 16A rating before ordering.
• Installation should be carried out by a suitably qualified person.
