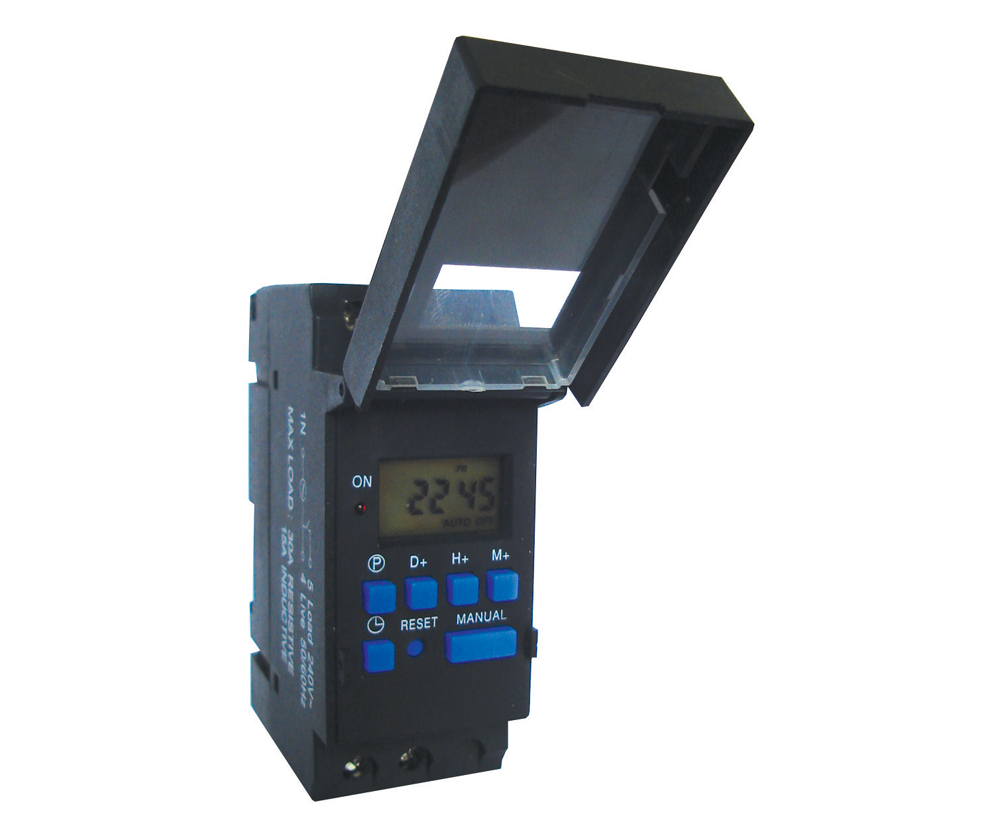

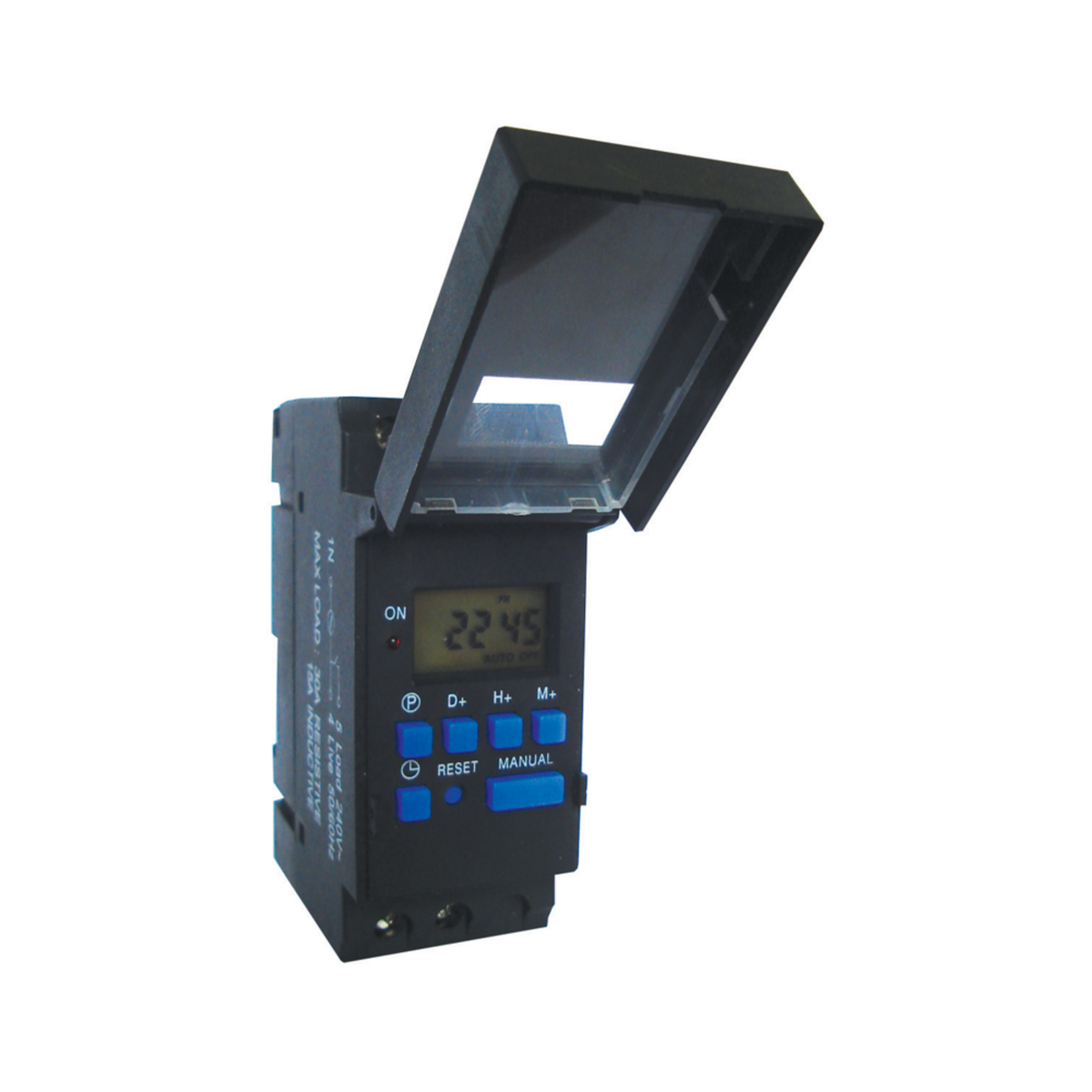

7 Day Digital Timer, 20A, Mini Rail Mount

The MCE Electric GTS-16C20A-MR is a 7-day digital timer in a compact mini-rail format, for automatic on/off control of mains-powered equipment. It suits installers who need a smaller-footprint timer than the standard DIN mount range, including for pulse-setting programs used in schools and factories.

• Application: Automatic on/off switching for general electrical loads in a compact footprint
• Key specification: 20A@250V (resistive), 7-day programmable, mini rail mount
• Power reserve: 150 hours (keeps time during a power outage)
• Programming: 1 channel, 16 On & 16 Off operations, 8 pulse and countdown functions

Key Features

• Compact mini-rail form factor for tighter enclosure spaces than a standard DIN timer
• 150-hour power reserve keeps the programmed schedule and time-of-day through a power interruption
• 1-minute minimum switching time, suitable for pulse-setting programs used in schools and factories
• 16 On and 16 Off operations across a 7-day program, plus 8 pulse and countdown functions
• LCD display for straightforward programming and status checking

Typical Applications

• Compact enclosure or panel installations needing scheduled switching
• Schools/factories using pulse-setting programs
• General load scheduling where space is limited

Technical Specifications

What's Included

• 1 x GTS-16C20A-MR digital timer

Please note: Mini rail enclosure, wiring accessories and electrical protection are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm your enclosure supports mini rail mounting (not standard DIN) before ordering — see the DTS-16C20A for the standard DIN mount equivalent.
• Confirm the switched load's current draw is within the 20A resistive rating before ordering.
• Installation should be carried out by a suitably qualified person.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this timer is correct for your application, contact Zisabo and we will assist where possible.
