Brass Terminal Bar, Screw-On, 8 x 12mm & 9 x 19mm | MCE TB-184 & TB-230

MCE uninsulated brass terminal bars are screw-on bars that give multiple connection points for neutral, earth or phase conductors in distribution boards and panels. They suit electricians and panel builders and are available in 8 x 12mm (TB-184, plated) and 9 x 19mm (TB-230) sizes.

• Material: Brass (TB-184 plated)

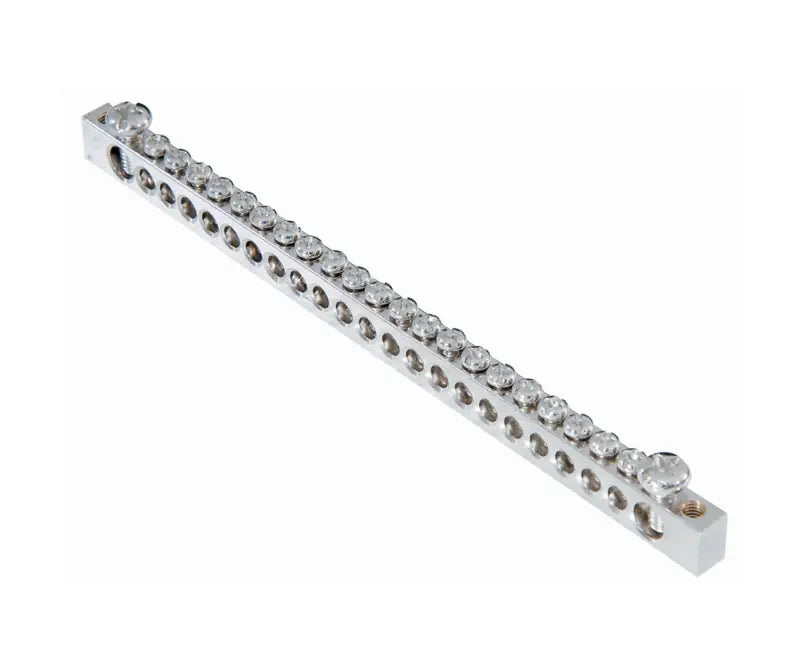

• TB-184: 8 x 12mm, 2 x 6mm and 21 x 4.5mm connections

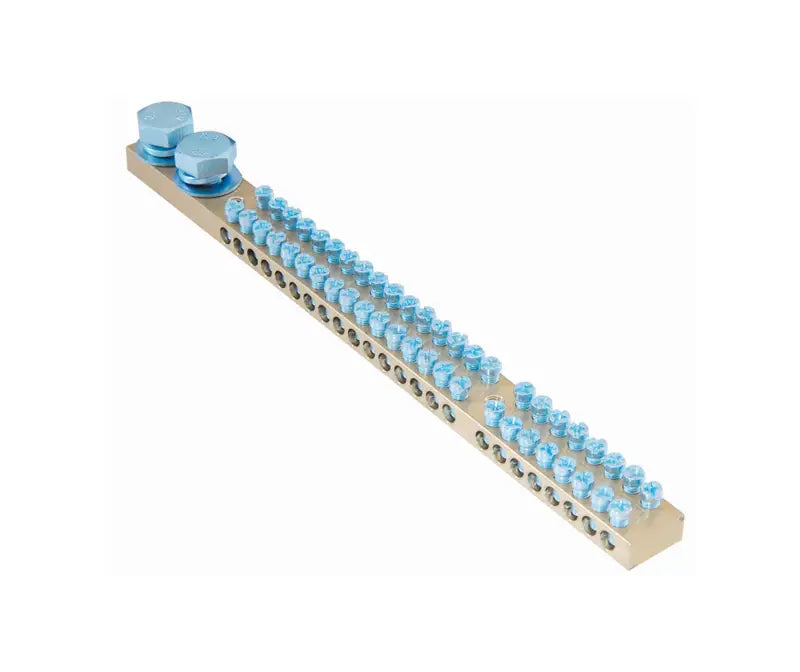

• TB-230: 9 x 19mm, 2 x 10mm and 24 x 5mm double connections
• Fixing: Screw on

Key Features

• Large number of connection points on a single bar
• Two bar sizes for lighter or heavier distribution

Typical Applications

• Neutral and earth bars in distribution boards
• Panel building and upgrades

Technical Specifications

What’s Included

• 1 x MCE brass terminal bar, selected model

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Bars are uninsulated; allow for insulation and clearances in the enclosure.
• Confirm the length and current rating with Zisabo if required.
• Installation should be carried out by a suitably qualified person.
