Busbar Insulator 6kV to 25kV, SM & S842 Series, Colour Coded | MCE

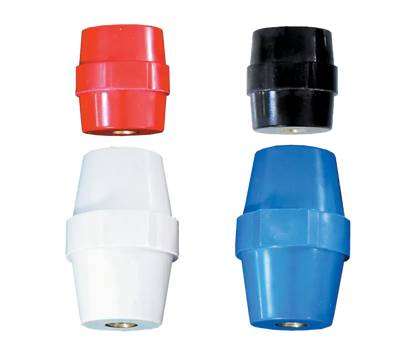

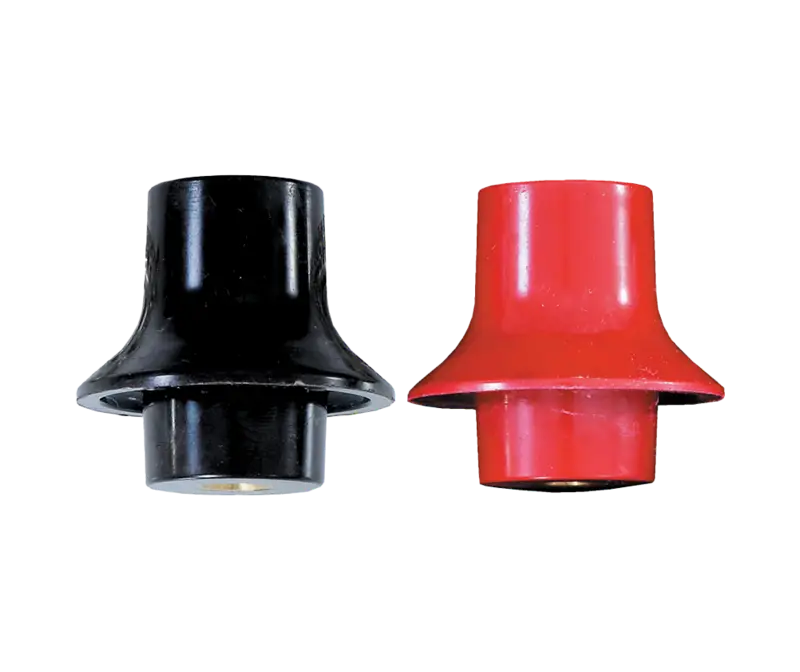

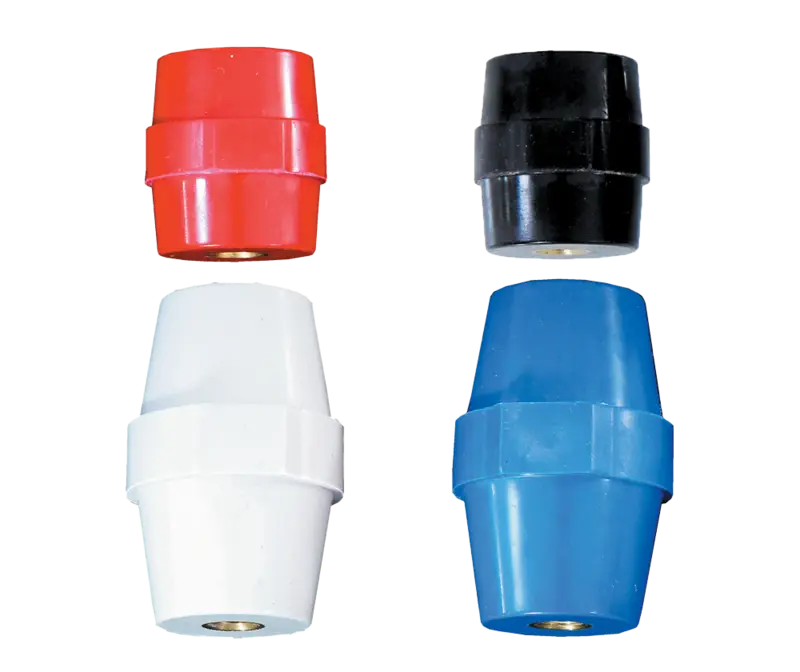

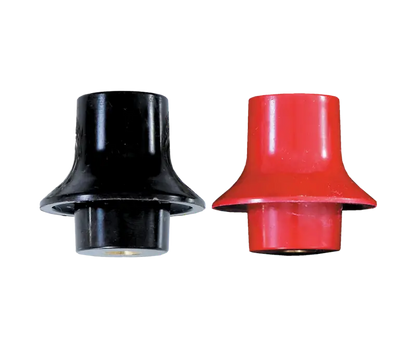

MCE busbar insulators support and insulate busbars in switchboards and distribution panels. They suit panel builders and electricians and are available in the SM and S842 series with voltage withstand ratings from 6kV to 25kV and four colour codes (R, W, B and BL).

• Voltage withstand: 6kV to 25kV (model dependent)
• Tensile strength: 500lbs to 1500lbs
• Screw size: 6mm, 8mm or 10mm
• Colour codes: R, W, B, BL

Key Features

• Nine models to match load and busbar size

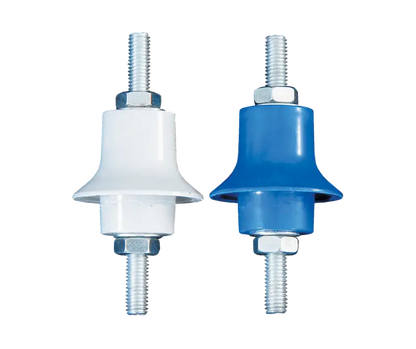

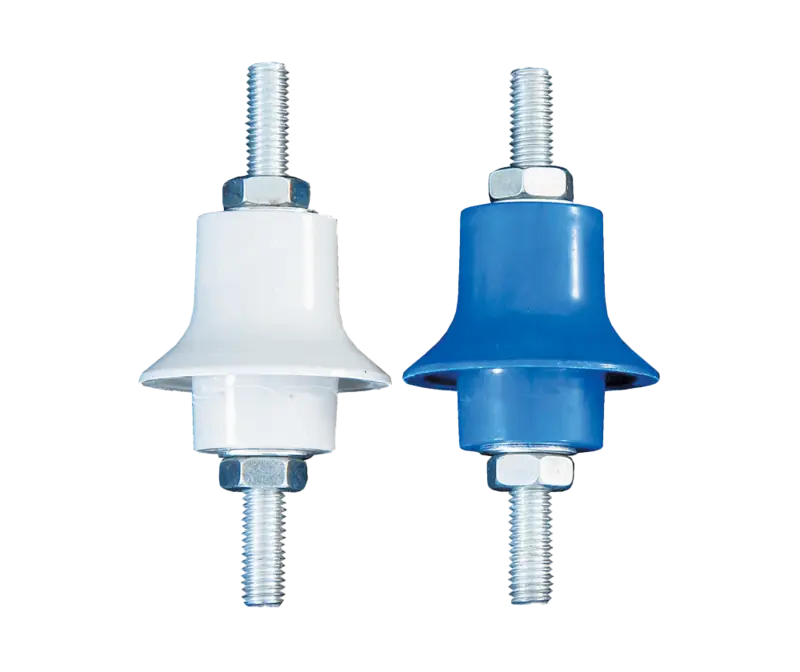

• Stud version available (S842-3, 8 x 22)

Typical Applications

• Busbar support in switchboards
• Panel and distribution board busbar systems

Technical Specifications

What’s Included

• 1 x MCE busbar insulator, selected model and colour code

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Select by voltage withstand, load and screw size.
• Confirm the colour code meaning with Zisabo before ordering.
• Installation should be carried out by a suitably qualified person.

Warranty & Support

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.
