Combination Surge Arrestor 40kA with NPE, 1+1 & 3+1 Module | Onesto SPD

The Onesto BY7-40 Combination Surge Protection Device is a compact, DIN rail mounted surge arrestor combining line and neutral-to-earth (NPE) protection in a single narrow module. Rated at 40kA, it is available in a 2-module 1+1 (single pole + neutral) configuration for single-phase boards, or a 4-module 3+1 (three pole + neutral) configuration for three-phase boards, at 275V or 385V. It is a practical, space-saving choice for boards needing a higher discharge rating than the 20kA combination unit, while still combining line and neutral protection in one compact housing.

• Application: Suitable for TN/TT distribution boards requiring combined line and neutral-to-earth protection at a higher discharge rating
• Key specification: 40kA maximum discharge current (Imax), Class II / Type 2 SPD

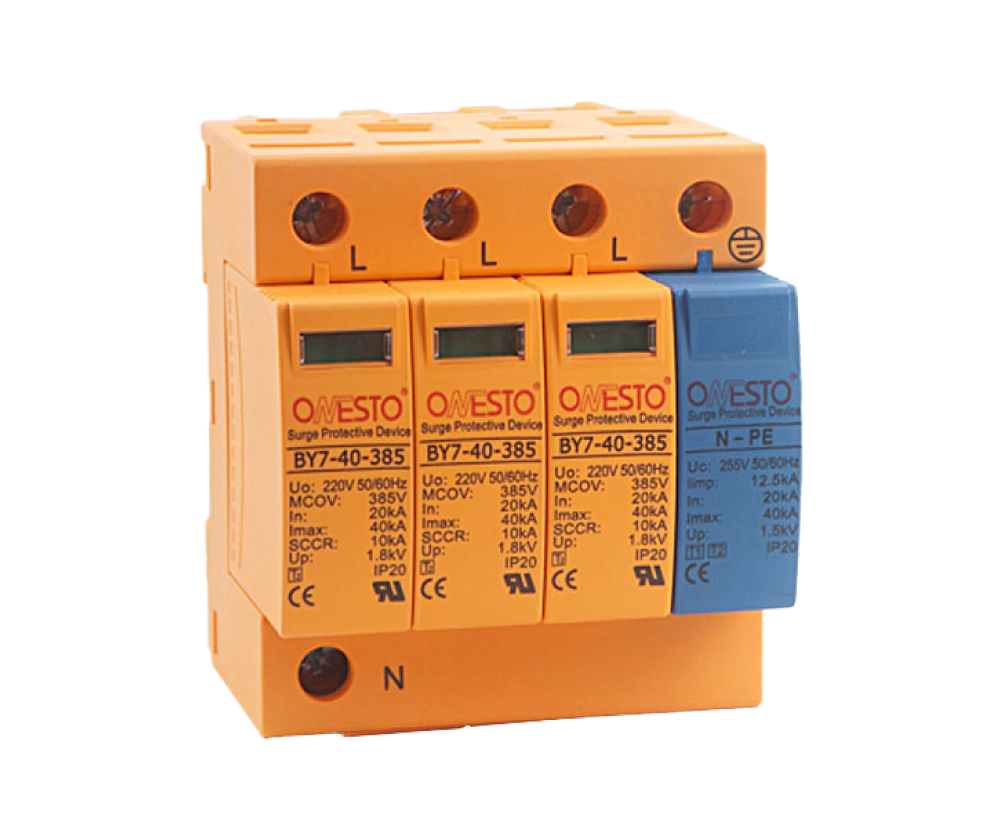

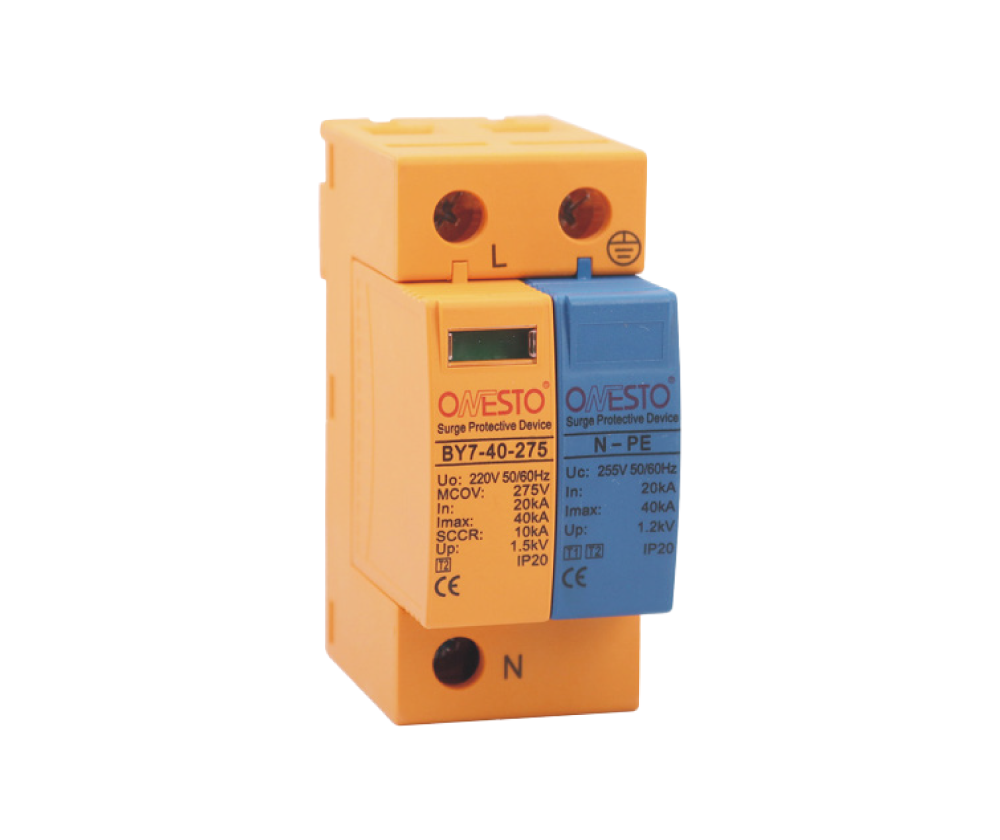

• Configuration: 1+1 module (single-phase + neutral) or 3+1 module (three-phase + neutral)
• Voltage: 275V or 385V operating voltage options
• Space-saving: Combines line and NPE protection in one compact DIN rail unit
• Status indicator: Green/red indication window shows functional or failed status

Key Features

• Combines line surge protection and neutral-to-earth (NPE) protection in a single compact DIN rail module, saving board space compared to separate devices
• 40kA maximum discharge current (Imax), 20kA nominal discharge current (In)
• Voltage protection level (Up) of approximately 2.0kV
• Visual green (functional) / red (failed) indication window
• PA66 UL94-V0 flame-retardant housing, IP20 degree of protection
• Suitable for TN and TT earthing systems

Typical Applications

• Domestic and commercial distribution boards with limited DIN rail space needing a higher discharge rating
• Single-phase boards requiring 1+1 (line + neutral) protection
• Three-phase boards requiring 3+1 (three-phase + neutral) protection
• Farm, rural and commercial properties needing combined line/neutral surge protection with greater surge exposure
• Retrofitting combined SPD protection into existing boards

Technical Specifications

What's Included

• 1 x Onesto BY7-40 Combination Surge Protection Device (module configuration and voltage as selected)

Please note: DIN rail, distribution board wiring, circuit breakers and installation accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm whether your board is single-phase (use 1+1) or three-phase (use 3+1) before ordering.
• Confirm your board's earthing system (TN or TT) and system voltage (275V or 385V) before ordering.
• Confirm wiring capacity requirements against your board's cable sizes before installation.
• Installation should be carried out by a suitably qualified electrician in line with local wiring regulations.
• Check the status indicator periodically — a red window means the SPD has operated and must be replaced.
