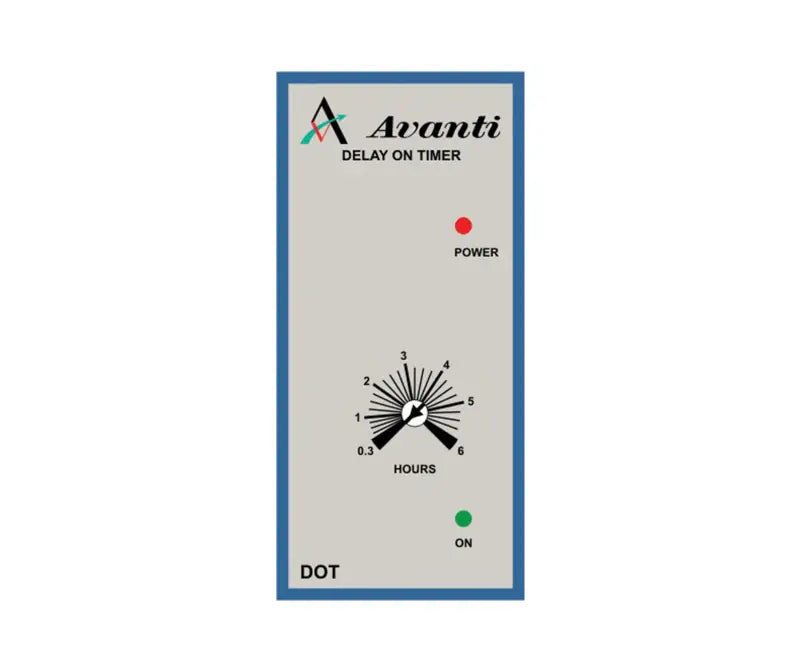

Delay On Timer, 11 Pin Plug-In, 12V to 400V, 6 Sec to 60 Hrs | Avanti A-DOT

This delay-on timer in a plug-in 11 pin format from Avanti is suitable for installers, electricians and maintenance teams, and is a practical choice for delaying the switch-on of pumps, motors or contactors.

• Application: Delaying the switch-on of pumps, motors or contactors
• Available options: 15 models - select supply voltage and time range above
• Mounting: 11 pin plug-in
• Supply voltages: 12VAC/DC, 24VAC/DC, 230VAC, 400VAC (model dependent)
• Time ranges: 6 sec, 60 sec, 6 min, 60 min, 6 hours, 60 hours (model dependent)

Key Features

• Manufacturer: Avanti, supplied through MCE Electric
• Product type: Delay on timer
• Mounting: 11 pin plug-in
• Supply voltages: 12VAC/DC, 24VAC/DC, 230VAC, 400VAC (model dependent)
• Time ranges: 6 sec, 60 sec, 6 min, 60 min, 6 hours, 60 hours (model dependent)
• Plug-in 11 pin format allows quick replacement without rewiring the panel

Typical Applications

• Delaying the switch-on of pumps, motors or contactors
• Sequential start-up of equipment
• Control panel timing circuits
• Industrial and commercial automation

Technical Specifications

Models and ordering codes:

• A-DOT-AD-60SEC – 12VAC/DC / 60 Sec
• A-DOT-AD-6MIN – 12VAC/DC / 6 Min
• A-DOT-BD – 24VAC/DC / 60 Sec
• A-DOT-BD-6MIN – 24VAC/DC / 6 Min
• A-DOT-M-6SEC – 230VAC / 6 Sec
• A-DOT-M-60SEC – 230VAC / 60 Sec
• A-DOT-M-6MIN – 230VAC / 6 Min
• A-DOT-M-60MIN – 230VAC / 60 Min
• A-DOT-M-6H – 230VAC / 6 Hours
• A-DOT-M-60H – 230VAC / 60 Hours
• A-DOT-Q-6SEC – 400VAC / 6 Sec
• A-DOT-Q-60SEC – 400VAC / 60 Sec
• A-DOT-Q-6MIN – 400VAC / 6 Min
• A-DOT-Q-60MIN – 400VAC / 60 Min
• A-DOT-Q-60H – 400VAC / 60 Hours

What’s Included

• 1 x Delay On Timer (model as selected)

Please note: Installation fittings, relay bases or sockets, enclosures, cables, electrical protection and accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the supply voltage, time range and exact model before ordering.
• This is a plug-in 11 pin device. Confirm you have, or order, a suitable 11 pin relay base.
• Check the load, contact rating and wiring requirements against the specification table.
• Installation should be carried out by a suitably qualified person where required, with the supply isolated.
• Specifications are taken from the MCE Electric catalogue. Contact Zisabo if you need a detail that is not listed.
