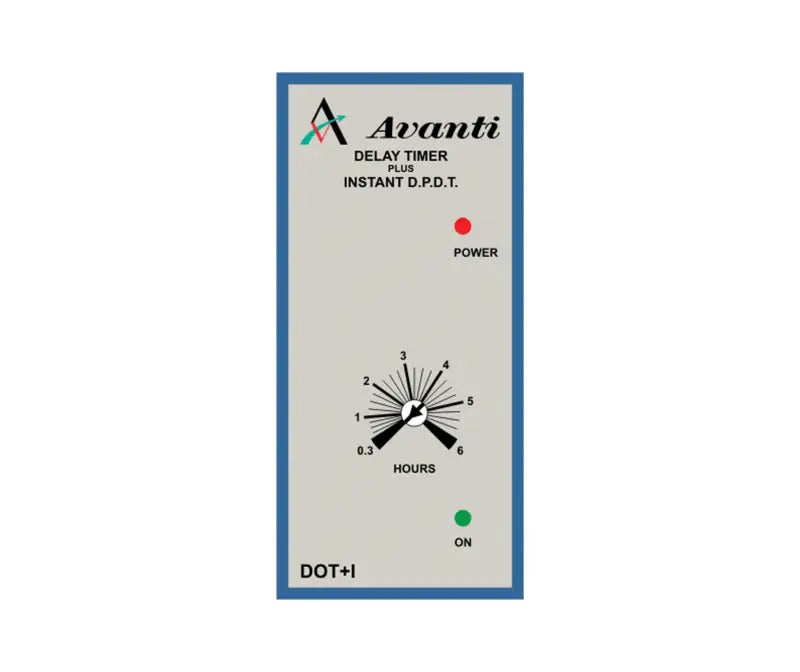

Delay On Timer With Instantaneous Contact, 11 Pin Plug-In | Avanti A-DOT+I

This delay-on timer with an instantaneous output, in a plug-in 11 pin format from Avanti is suitable for installers, electricians and maintenance teams, and is a practical choice for delayed switch-on with an immediate signal.

• Application: Delayed switch-on with an immediate signal
• Available options: 4 models - select supply voltage and time range above
• Mounting: 11 pin plug-in
• Supply voltages: 12V, 230V (model dependent)
• Time ranges: 60 sec, 6 min, 6 hours (model dependent)

Key Features

• Manufacturer: Avanti, supplied through MCE Electric
• Product type: Delay on timer with instantaneous output
• Mounting: 11 pin plug-in
• Supply voltages: 12V, 230V (model dependent)
• Time ranges: 60 sec, 6 min, 6 hours (model dependent)
• Plug-in 11 pin format allows quick replacement without rewiring the panel

Typical Applications

• Delayed switch-on with an immediate signal
• Pump and motor start sequencing
• Control panel timing circuits

Technical Specifications

Models and ordering codes:

• A-DOT+I-A60SEC – 12V / 60 Sec
• A-DOT+I-M60SEC – 230V / 60 Sec
• A-DOT+I-6MIN – 230V / 6 Min
• A-DOT+I-M-6H – 230V / 6 Hours

What’s Included

• 1 x Delay On Timer With Instantaneous Contact (model as selected)

Please note: Installation fittings, relay bases or sockets, enclosures, cables, electrical protection and accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the supply voltage, time range and exact model before ordering.
• This is a plug-in 11 pin device. Confirm you have, or order, a suitable 11 pin relay base.
• Check the load, contact rating and wiring requirements against the specification table.
• Installation should be carried out by a suitably qualified person where required, with the supply isolated.
• Specifications are taken from the MCE Electric catalogue. Contact Zisabo if you need a detail that is not listed.

Warranty & Support

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your application details, supply voltage, load and required timing or protection settings, and we will assist where possible.
