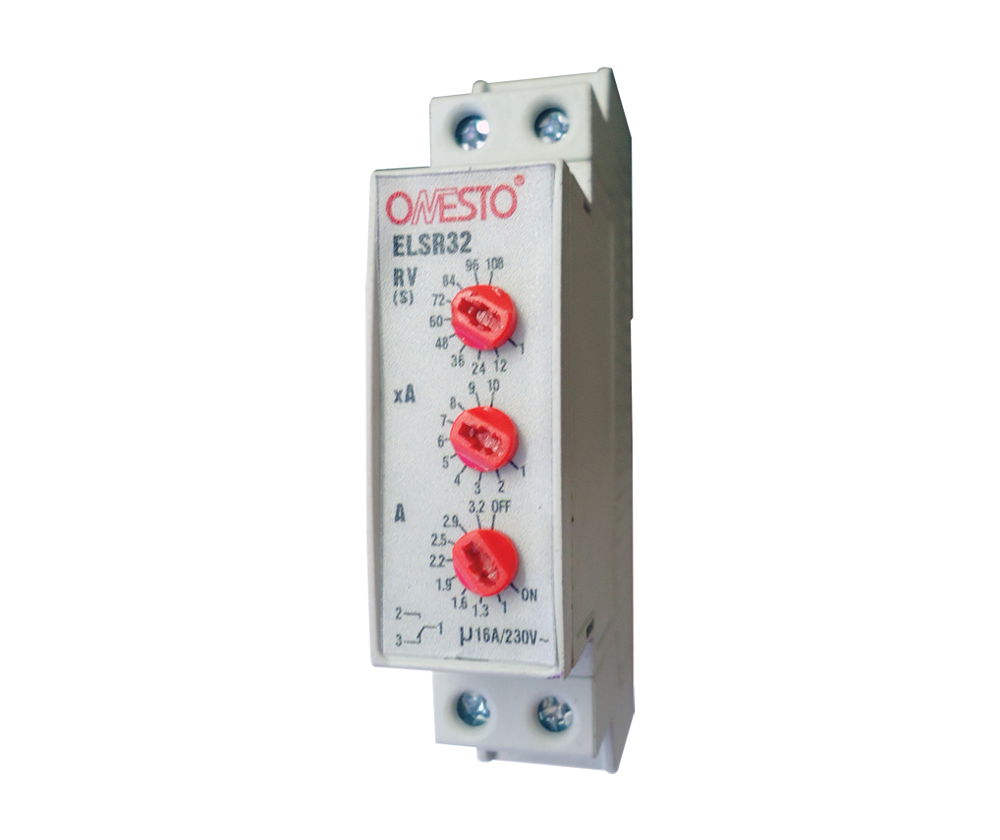

Electronic Load Shed Relay 1-32A, 230VAC | Onesto

The ELSR32 Electronic Load Shed Relay monitors current draw and automatically switches off a non-essential load once a set current threshold is exceeded, helping manage electricity costs and avoid overloading a circuit. It is suitable for homeowners, electricians and property managers looking to automate load shedding on a specific circuit.

• Application: Automatic load shedding based on current draw
• Adjustment range: 0.1A to 32A via internal current transformer
• Supply voltage: 230VAC
• Mounting: 1 DIN module, 18mm wide, 58mm deep

Key Features

• Adjustable 0.1-32A threshold via internal CT, with external CT support for higher references
• Off-delay setting from 0 to 120 seconds avoids short-cycling of the controlled load
• 16A/250VAC switching capacity suits typical household non-essential circuits
• Compact single DIN module keeps installation neat in a standard distribution board

Typical Applications

• Household electricity cost reduction
• Non-essential load shedding (geysers, pool pumps, etc.)
• Demand management on metered supplies
• Panel builder load management circuits

Technical Specifications

What's Included

• 1 x ELSR32 Electronic Load Shed Relay

Please note: External current transformer (if required) and load wiring are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the load's normal running current falls within the 0.1-32A internal CT range, or plan for an external CT.
• Confirm 230VAC supply and 16A/250VAC switching capacity suit the controlled load.
• Installation should be carried out by a suitably qualified electrician where required.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your application details, voltage, current rating, pin/base configuration or installation environment, and we will assist where possible.
