Eurolux Flush Plastic DB Board TXM – EB28

R 148.44

Sale Sold out

Taxes included. Shipping calculated at checkout.

18 in stock

Model TXM-6P TXM-8P TXM-10P TXM-12P TXM-15P TXM-18P TXM-36P

The Eurolux Flush Plastic DB Board TXM is a reliable flush-mount plastic DB board from the Eurolux range, designed for housing circuit protection in a flush-mounted distribution board. It is suitable for homeowners, electricians, contractors and maintenance teams and offers a practical, like-for-like choice for electrical installations.

Application: Housing circuit protection in a flush-mounted distribution board.
Mounting: Flush.
Fitting material: Plastic.
Models: TXM-6P, TXM-8P, TXM-10P, TXM-12P, TXM-15P, TXM-18P and TXM-36P.

Key Features

Eurolux product: part of the Eurolux range, which helps with like-for-like replacements and additions.
Choice of model: TXM-6P, TXM-8P, TXM-10P, TXM-12P, TXM-15P, TXM-18P and TXM-36P, so you can match the correct item to the installation.
Mounting: Flush.
Fitting material: Plastic.

Typical Applications

New distribution board installations
Replacing an existing board
Domestic, commercial and light industrial electrical installations

Technical Specifications

Brand	Eurolux
Product type	Flush-mount plastic DB board
Model	EB28, EB29, EB30, EB31, EB32, EB33, EB34
Mounting	Flush
Fitting material	Plastic

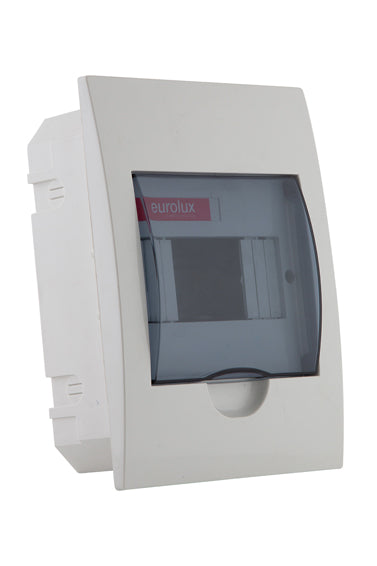

Dimensions – TXM-6P	Height 222mm, Width 170mm, Depth 85mm

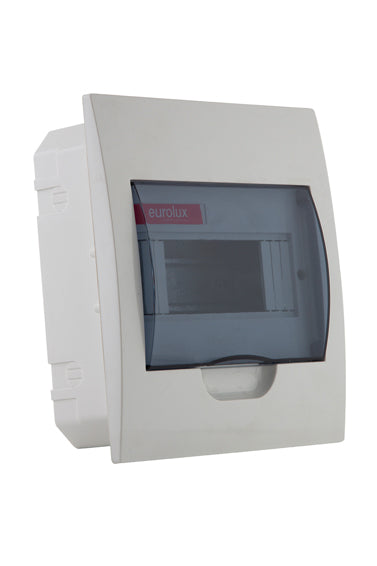

Dimensions – TXM-8P	Height 220mm, Width 205mm, Depth 85mm

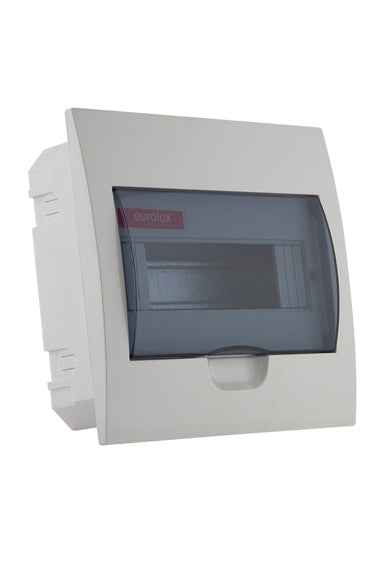

Dimensions – TXM-10P	Height 243mm, Width 220mm, Depth 90mm

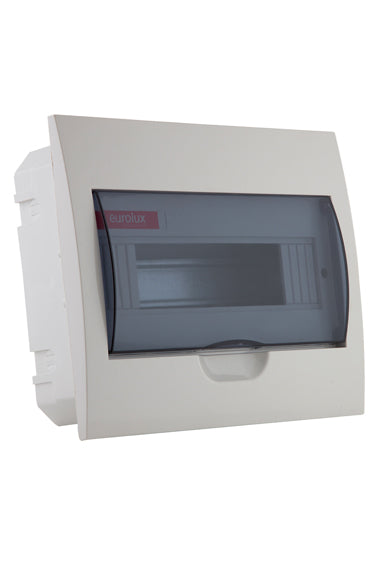

Dimensions – TXM-12P	Height 222mm, Width 280mm, Depth 90mm

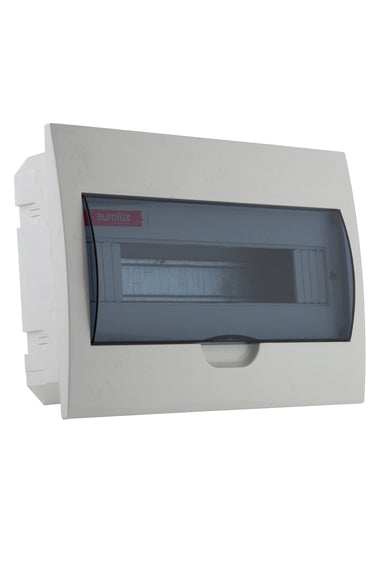

Dimensions – TXM-15P	Height 222mm, Width 335mm, Depth 90mm

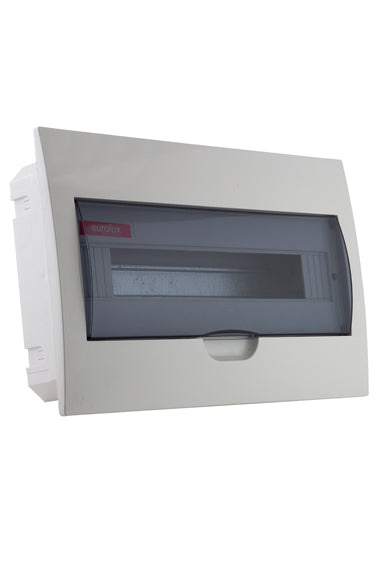

Dimensions – TXM-18P	Height 250mm, Width 400mm, Depth 98mm

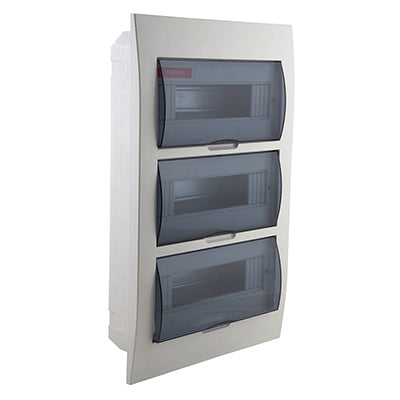

Dimensions – TXM-36P	Height 481mm, Width 300mm, Depth 96mm
Cut-out – TXM-6P	200 x 150 x 60 mm
Cut-out – TXM-8P	190 x 200 x 60 mm
Cut-out – TXM-10P	195 x 220 x 60 mm
Cut-out – TXM-12P	200 x 260 x 60 mm
Cut-out – TXM-15P	200 x 310 x 60 mm
Cut-out – TXM-18P	217 x 362 x 67 mm
Cut-out – TXM-36P	256 x 440 x 66 mm
Item codes	TXM-6P: EB28; TXM-8P: EB29; TXM-10P: EB30; TXM-12P: EB31; TXM-15P: EB32; TXM-18P: EB33; TXM-36P: EB34

What's Included

1 x Eurolux Flush Plastic DB Board TXM (select model)

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

Confirm the number of ways or modules, the dimensions and the mounting type (surface or flush) suit your installation and the devices you plan to fit. Breakers and other devices are not included. Installation must be carried out by a qualified electrician in line with SANS 10142-1 and local regulations. Isolate the supply before any work.
