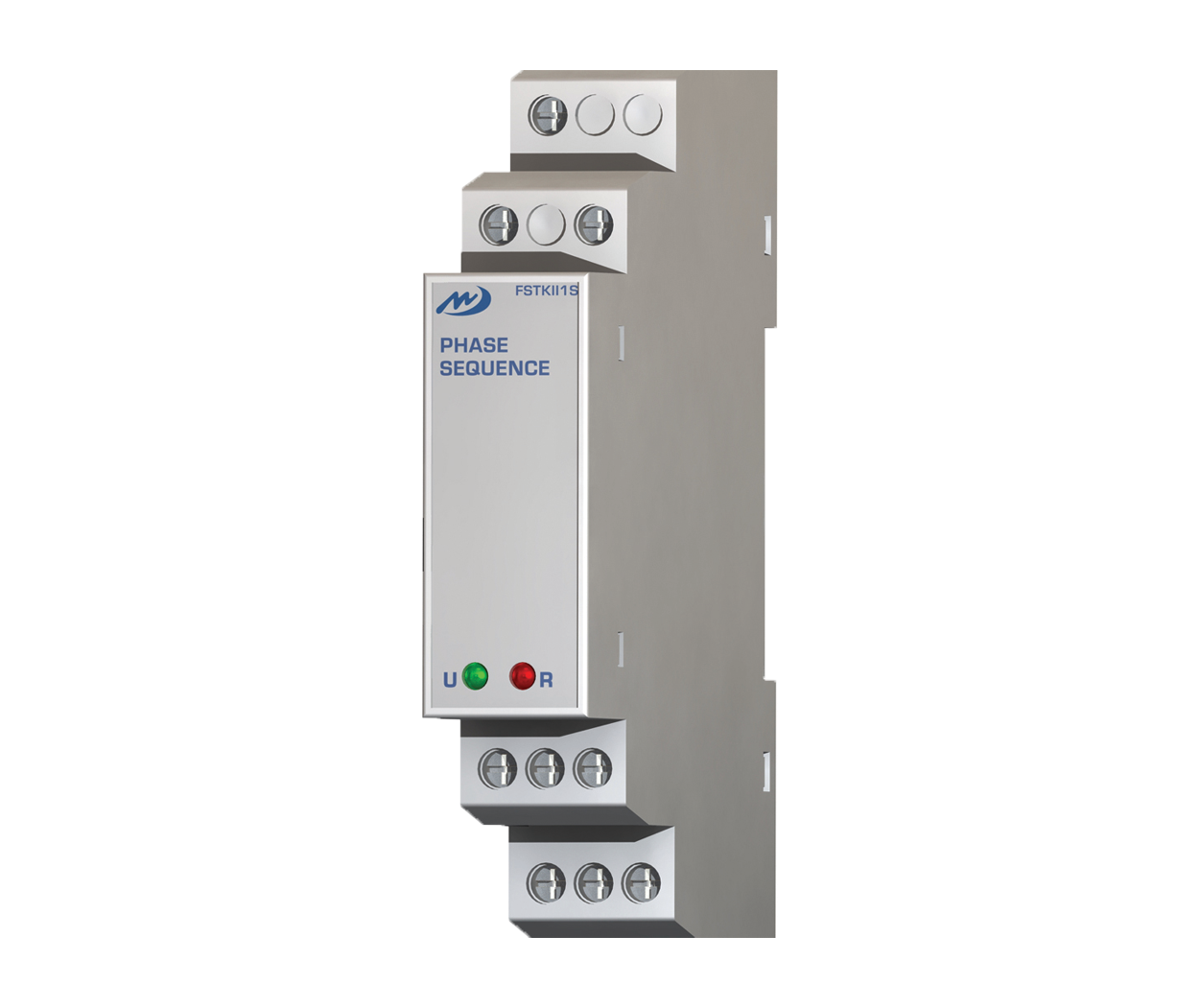

Phase Sequence Relay 230V-400V, DIN Mount

The FSTKII1S Phase Sequence Relay monitors three-phase supplies for correct rotation and loss of a phase, protecting motors and pumps from running in reverse or on an incomplete supply. It is suitable for electricians, panel builders and pump/borehole installers, and mounts in a compact 1-module DIN rail enclosure.

• Application: Phase rotation and phase-loss protection for 3-phase motors
• Voltage: 230V-400V, universal supply
• Output: SPDT output contact, 8A/250VAC
• Mounting: 1-module DIN rail (EN50.022), 98 x 17.5 x 64mm

Key Features

• Detects incorrect phase rotation and loss of a phase before it can damage a motor
• Energise-after-delay function avoids nuisance tripping on momentary supply issues
• Universal 230V-400V supply simplifies stocking across single installations
• Compact 1-module width saves panel space in crowded distribution boards
• RoHS compliant, self-extinguishing V0 housing material

Typical Applications

• Three-phase motor rotation protection
• Pump and borehole motor protection
• Panel builder phase monitoring circuits
• General industrial 3-phase supply monitoring

Technical Specifications

What's Included

• 1 x FSTKII1S Phase Sequence Relay

Please note: DIN rail enclosure and wiring are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm 3-phase supply voltage falls within 230V-400V before ordering.
• Confirm the motor/contactor circuit can accept the SPDT 8A/250VAC output rating.
• Installation should be carried out by a suitably qualified electrician where required.
