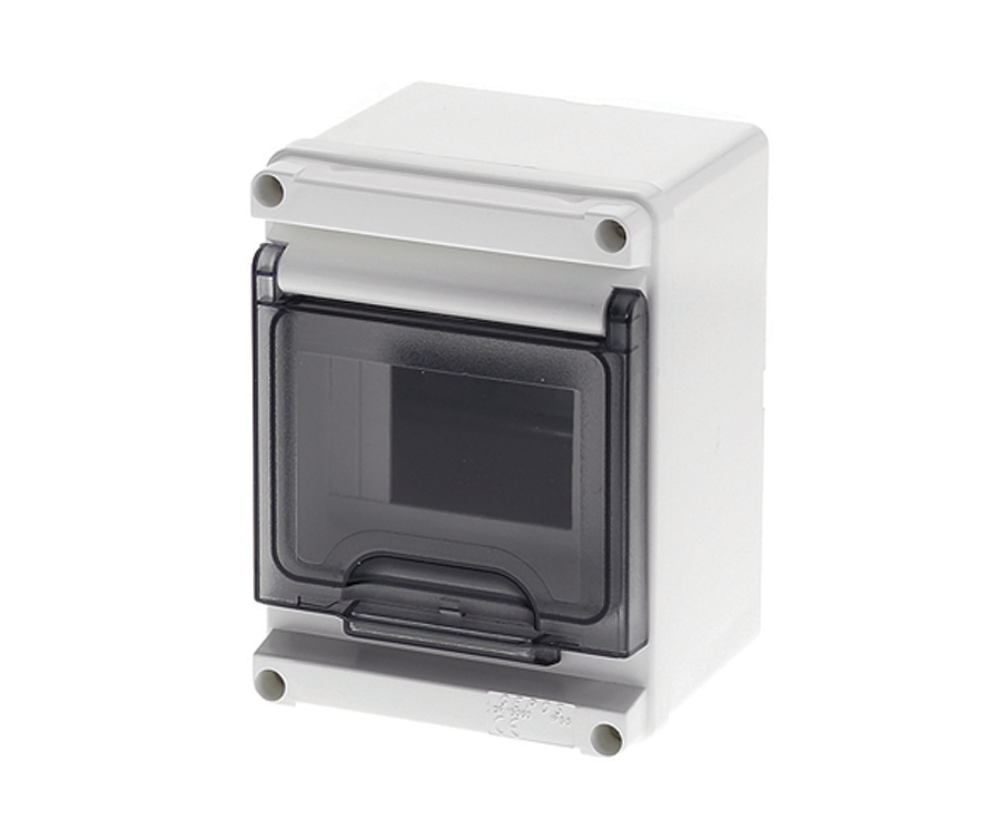

Geros Surface Mount DIN Rail Distribution Board, IP65, Smoky Door

R 351.90

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size 4-5 Module, 4/5 Way (GR15060) 6-8 Module, 6/8 Way (GR15062) 12 Module, 1x12 Way (GR15064) 24 Module, 2x12 Way (GR15066)

The MCE Electric Geros range is a surface-mounted, IP65-rated DIN rail distribution board with a smoky (tinted) door, built to Italian design standards for indoor and outdoor electrical distribution work. It suits electricians, installers and contractors needing a weatherproof enclosure to house circuit breakers and other DIN rail devices, in four sizes to match different circuit counts.

Application: Housing circuit breakers, RCDs and other DIN rail devices for distribution circuits
Key specification: IP65, smoky door, DIN rail mount, 4 sizes from 4-5 module up to 24 module
Build quality: Halogen free, IK07 shock resistance, conforms to EN60670-24:2005
Accessories: Earth and neutral bars sold separately

Key Features

IP65 rated with a smoky (tinted) door for weatherproof indoor or outdoor surface mounting
Halogen free construction with IK07 shock resistance and a 650°C glow wire test rating (EN 60335-1:94 + IEC 695-2-1)
Rated for -5°C to +60°C ambient temperature
Conforms to EN60670-24:2005
Four sizes (4-5, 6-8, 12 and 24 module) to match different circuit counts, from a small domestic sub-board up to a larger 2x12 way board

Typical Applications

Domestic and commercial sub-distribution boards
Outdoor or exposed-location electrical distribution requiring IP65 protection
Pump, irrigation or outbuilding circuit distribution
Retrofitting or expanding an existing installation with a weatherproof enclosure

Technical Specifications

Brand	MCE Electric
Range	Geros
Model	GR15060 / GR15062 / GR15064 / GR15066
Product type	Surface mount DIN rail distribution board
IP rating	IP65 (per catalogue spec sheet, which labels all four sizes IP65 — see note below on a supplier data discrepancy for two sizes)
Door	Smoky (tinted)
Mounting	Surface mount, DIN rail

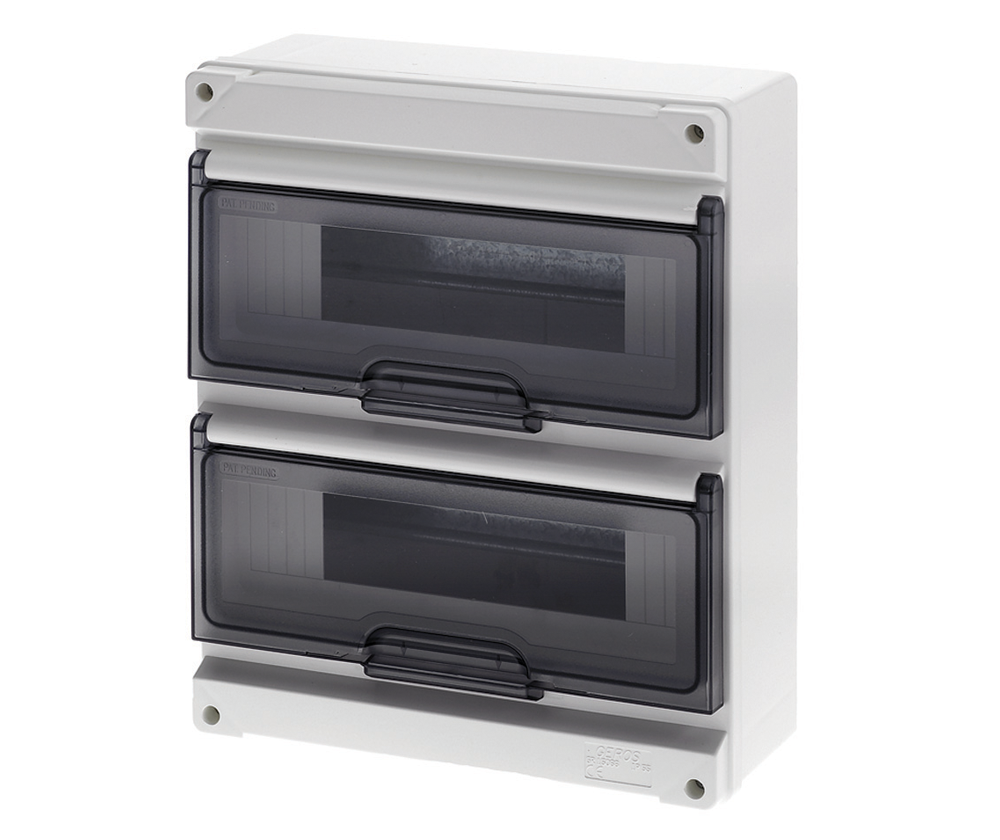

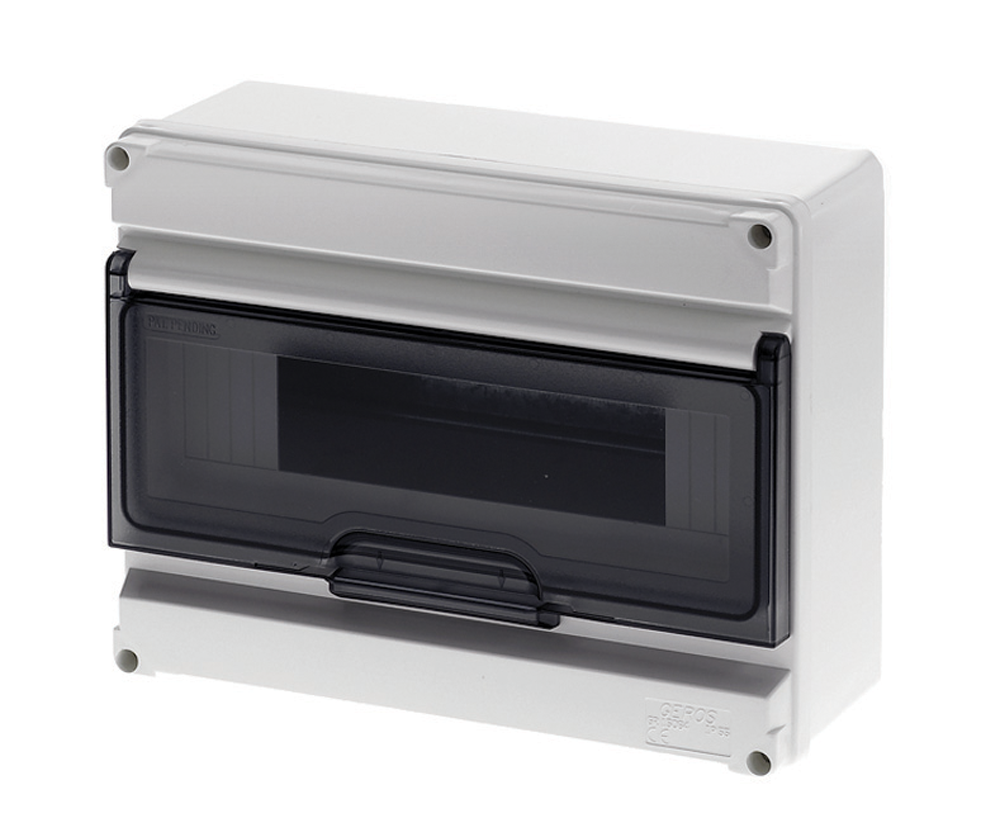

Module / way count	4-5 Module / 4-5 Way (GR15060); 6-8 Module / 6-8 Way (GR15062); 12 Module / 1x12 Way (GR15064); 24 Module / 2x12 Way (GR15066)
Dimensions (W x L x D)	112 x 154 x 75mm (GR15060); 170 x 170 x 75mm (GR15062); 240 x 202 x 75mm (GR15064); 240 x 331 x 80mm (GR15066)
Shock resistance	IK07
Glow wire test	650°C, EN 60335-1:94 + IEC 695-2-1
Temperature rating	-5°C to +60°C
Material	Halogen free plastic
Standards	EN60670-24:2005
Earth & neutral bars	Sold separately
Warranty	Applicable manufacturer/supplier warranty, subject to correct installation and application

What's Included

1 x Geros surface mount DIN rail distribution board enclosure (size per variant selected)

Please note: Earth bars, neutral bars, circuit breakers, RCDs and other DIN rail devices are not included unless specifically listed above.

Installation & Compatibility Notes

Confirm the module/way count you need before ordering — this determines board size and how many DIN rail devices it can house.
Flagged for confirmation: the supplier's catalogue page labels all four board sizes IP65, but the supplier price list describes the GR15060 (4-5 module) and GR15066 (24 module) as IP55 rather than IP65. Contact Zisabo to confirm the exact IP rating for these two sizes before ordering if this matters for your installation location.
Earth and neutral bars are sold separately — order these alongside the board if needed.
Installation should be carried out by a suitably qualified electrician.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure which size or IP rating is correct for your installation, contact Zisabo with your circuit count and installation location, and we will assist where possible.
