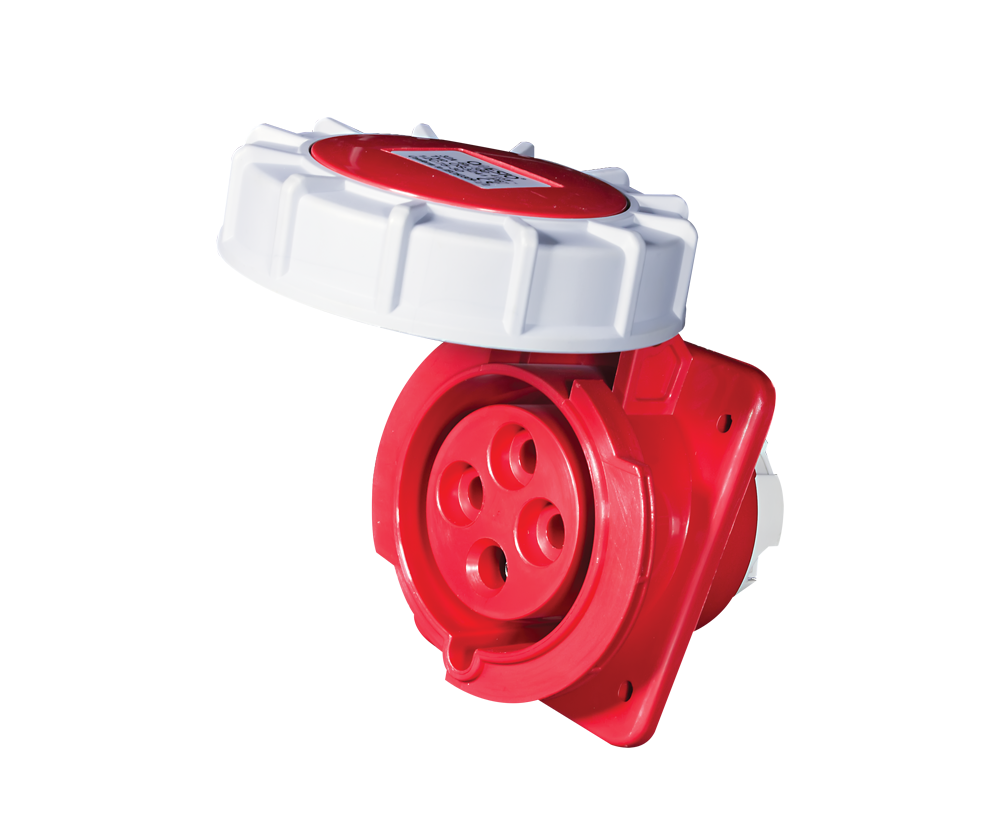

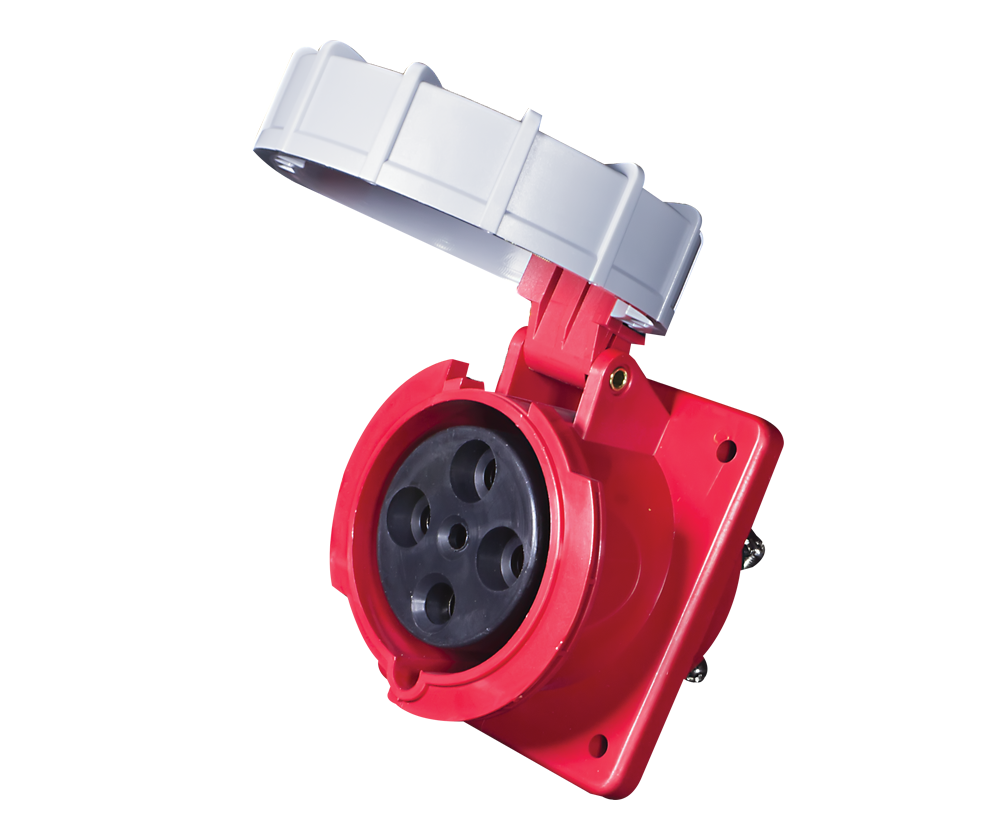

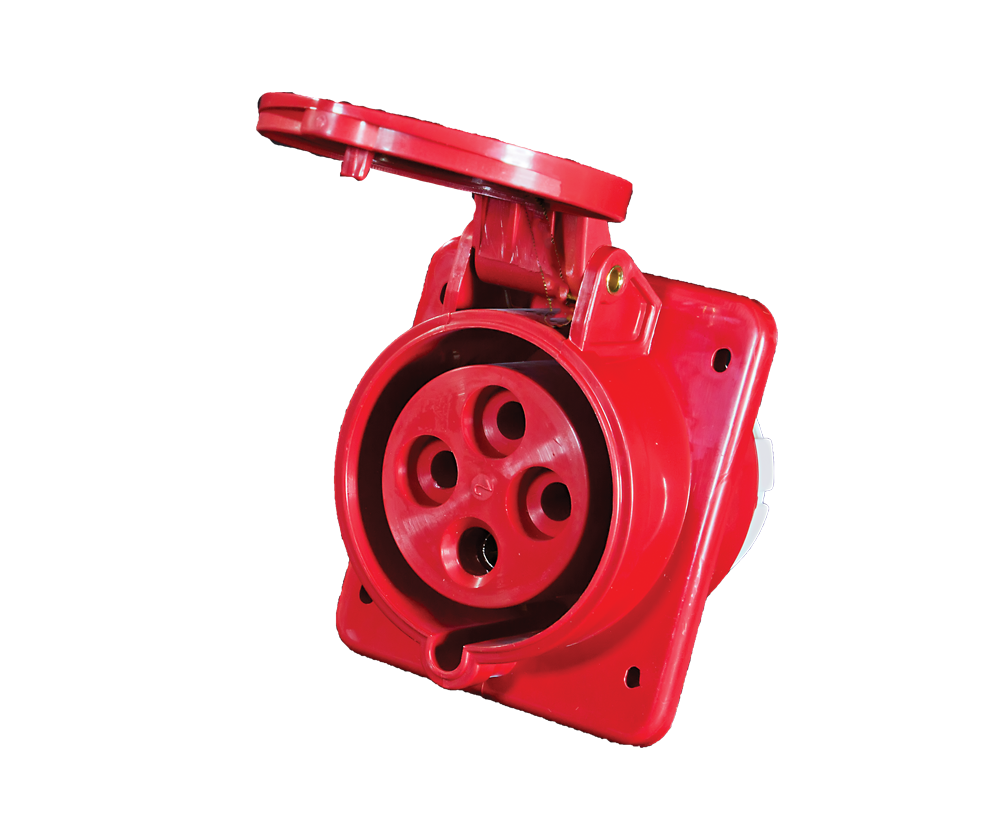

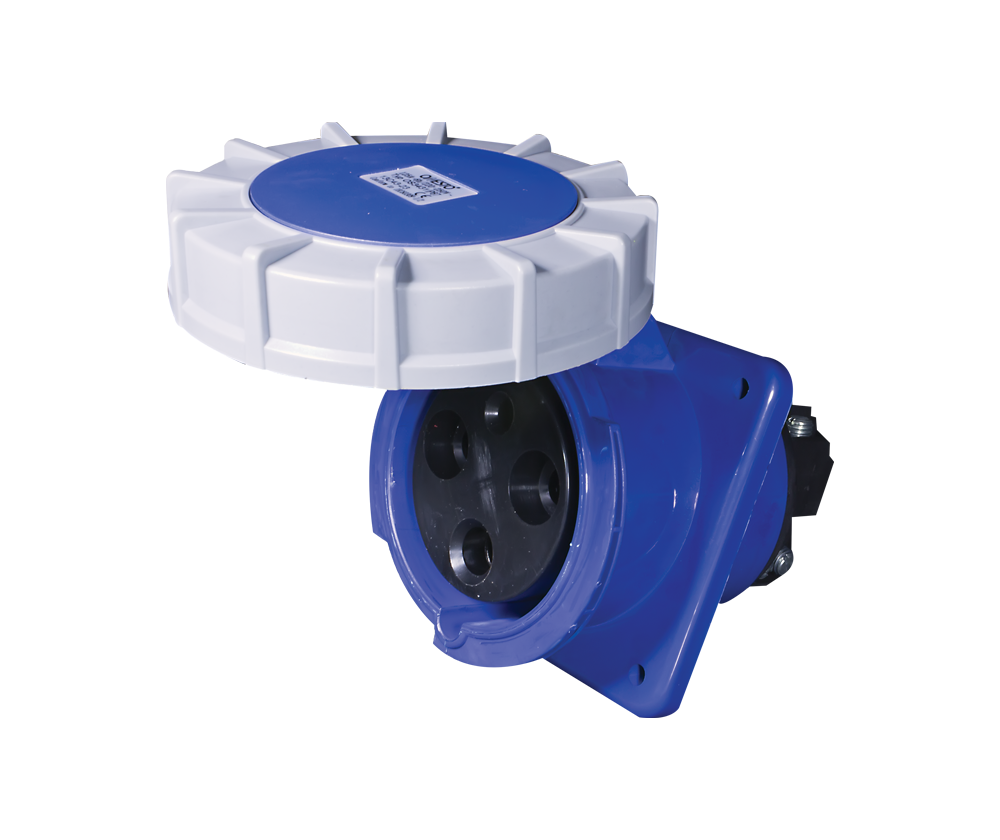

Industrial CEE Angle Panel Socket 16A-125A | IP44 & IP67 | 3P, 4P & 5P | Onesto Onyx Range

The Onesto Onyx Angle Panel Socket is a heavy-duty industrial CEE (IEC 60309) socket designed for flange mounting into distribution boards, enclosures and machine panels. It is suitable for panel builders, electricians, contractors and OEMs who need a fixed industrial power connection point built into equipment or switchgear. The range covers 16A to 125A current ratings across 3 Pin, 4 Pin and 5 Pin configurations, in IP44 (indoor/protected) and IP67 (outdoor/washdown) protection ratings, so it can be matched to the correct application and plug type.

• Application: Suitable for panel-mounted industrial power connections in enclosures, distribution boards and machinery
• Current ratings: Available from 16A up to 125A
• Configurations: 3 Pin (2P+E, 230V), 4 Pin (3P+E, 380V) and 5 Pin (3P+N+E, 380V)
• Protection rating: IP44 for indoor/protected use or IP67 for outdoor and washdown environments
• Standard: Built to IEC 60309-1:1999 and IEC 60309-2:1999 + A1:2005 + A2:2012
• Mounting: Angled flange (panel mount), fitted through a cut-out in an enclosure or panel face

Key Features

• Manufactured to IEC 60309 CEE standards for interlocking, colour-coded industrial connectors
• Angled body and mounting flange allow the socket to be fitted through an enclosure or panel wall, with the connection face on the outside
• Colour-coded body (per CEE convention) helps installers identify voltage and current rating at a glance
• IP67-rated variants are suitable for outdoor or washdown panel installations
• Robust moulded body designed to withstand site, workshop and outdoor conditions
• Compatible with matching Onesto Onyx CEE plug tops and couplers

Typical Applications

• Distribution board and switchgear panel builds
• Generator and temporary power distribution panels
• Machine and equipment enclosures requiring a fixed power inlet/outlet
• Construction site power distribution cabinets
• Workshop and factory panel-mounted power points
• Outdoor and washdown-area panel installations (IP67 variants)

Technical Specifications

Note: 63A and 125A ratings are supplied in IP67 only.

What's Included

• 1 x CEE Angle Panel Socket (as selected)

Please note: Mounting screws, panel cut-out gaskets, matching plug tops or couplers, cable glands and wiring accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the required current rating (16A-125A) and pin configuration (3 Pin, 4 Pin or 5 Pin) before ordering
• Confirm voltage: 230V for 3 Pin (2P+E) units, 380V for 4 Pin and 5 Pin units
• Choose IP44 for indoor or protected panel installations only; choose IP67 for outdoor, washdown or exposed environments
• Check the panel cut-out size and mounting hole spacing against the product before fabricating the enclosure
• This socket must be installed by a suitably qualified electrician, with appropriate upstream circuit protection (isolator, breaker or RCD)
• Confirm compatibility with the plug or coupler it will be paired with before ordering

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you are unsure which current rating, pin configuration or protection rating is correct for your panel build, contact Zisabo with your voltage, current, pin configuration and installation environment details, and we will assist where possible.
