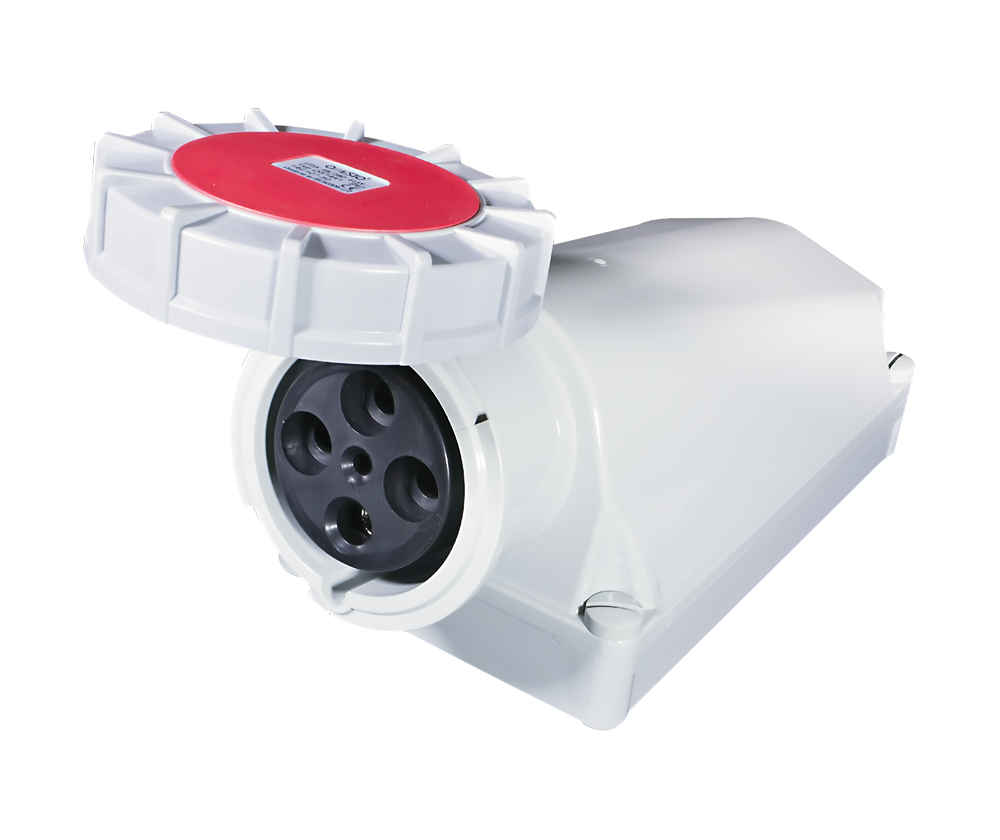

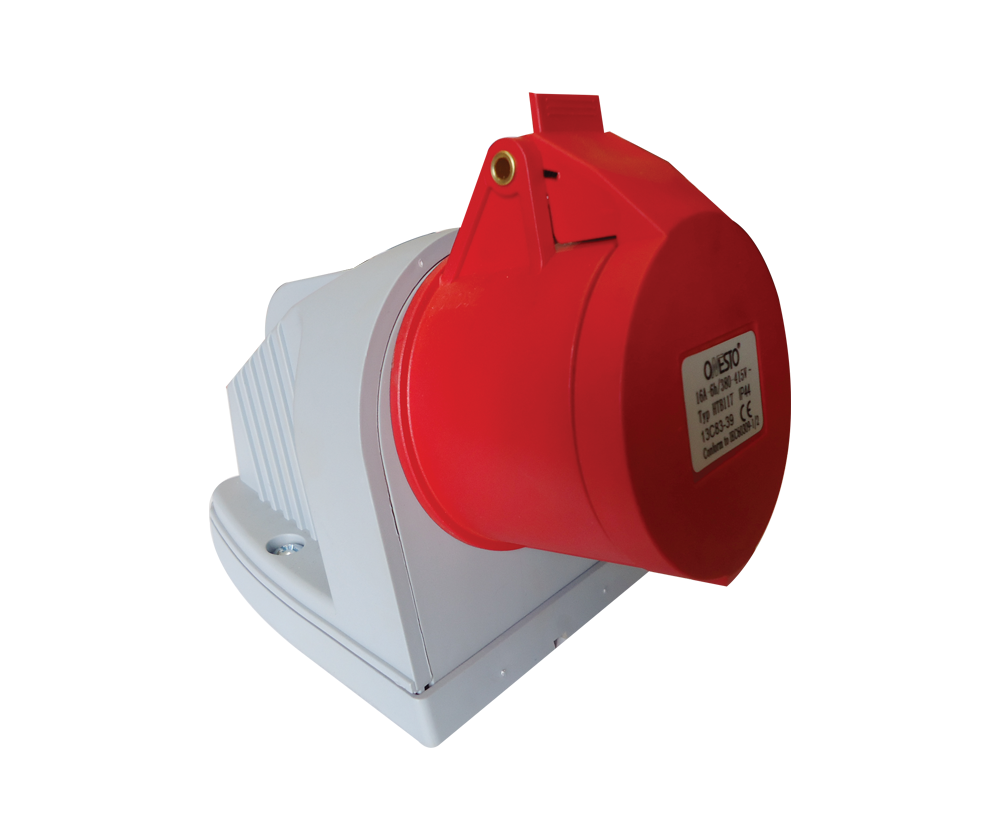

Industrial CEE Unswitched Socket Outlet 16A-125A | IP44 & IP67 | 3P, 4P, 5P & 7P | Onesto Onyx Range

The Onesto Onyx Unswitched Socket Outlet is a heavy-duty industrial CEE (IEC 60309) socket used to supply single-phase or three-phase power to matching CEE plugs and couplers. It is suitable for construction sites, workshops, factories, generators, marinas and other environments where a robust, weatherproof industrial power point is needed. The range covers 16A to 125A current ratings across 3 Pin, 4 Pin, 5 Pin and 7 Pin configurations, in IP44 (indoor/protected) and IP67 (outdoor/washdown) protection ratings, so it can be matched to the correct application and plug type.

• Application: Suitable for industrial, construction site, workshop, generator and outdoor power distribution
• Current ratings: Available from 16A up to 125A

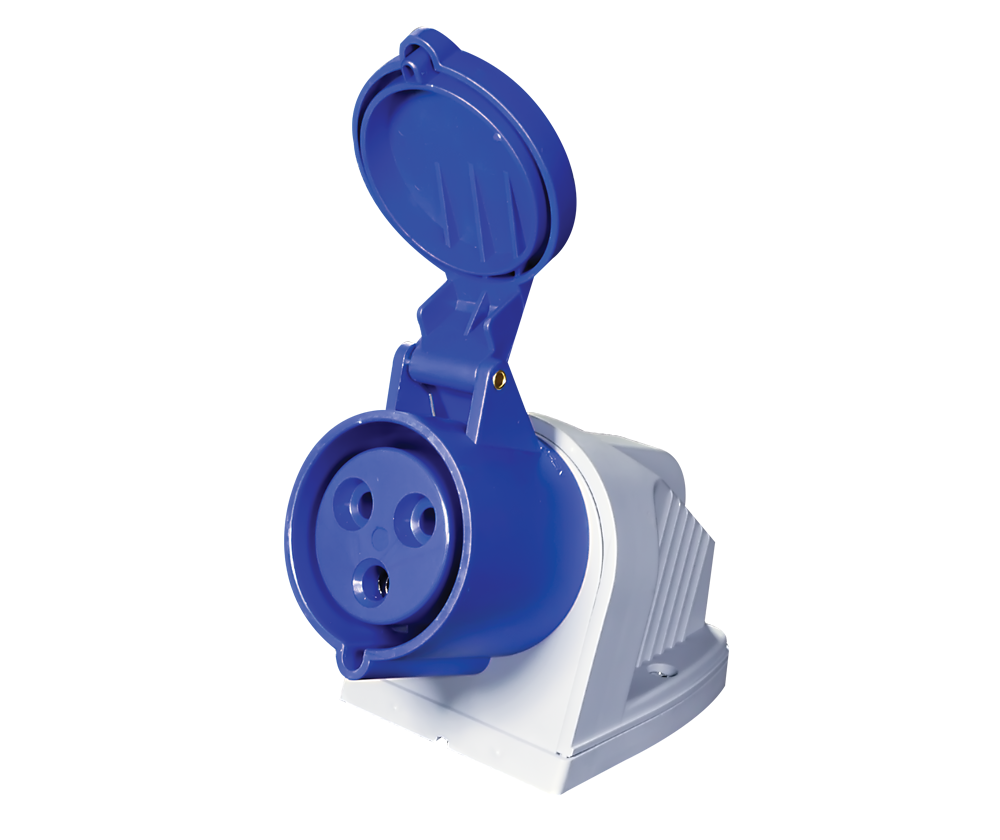

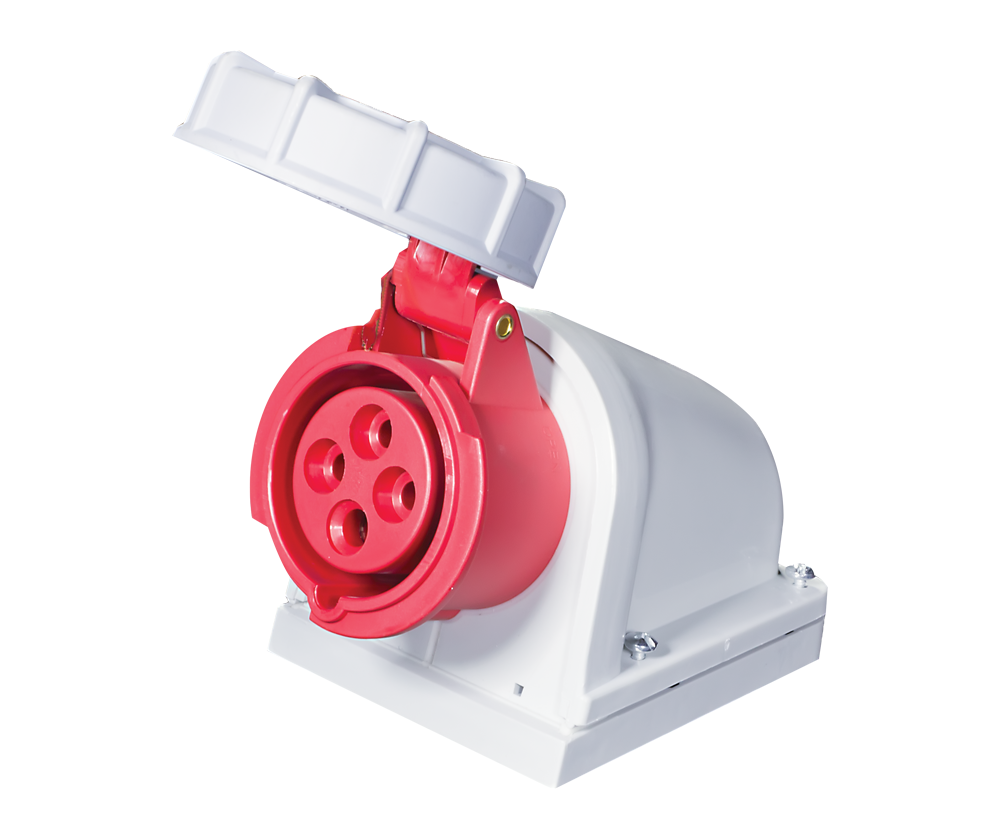

• Configurations: 3 Pin (2P+E, 230V), 4 Pin (3P+E, 380V), 5 Pin (3P+N+E, 380V) and 7 Pin (380V)
• Protection rating: IP44 for indoor/protected use or IP67 for outdoor and washdown environments
• Standard: Built to IEC 60309-1:1999 and IEC 60309-2:1999 + A1:2005 + A2:2012
• Mounting: Surface-mounted, suitable for panel, wall or enclosure installation

Key Features

• Manufactured to IEC 60309 CEE standards for interlocking, colour-coded industrial connectors
• Colour-coded body (per CEE convention) helps installers identify voltage and current rating at a glance

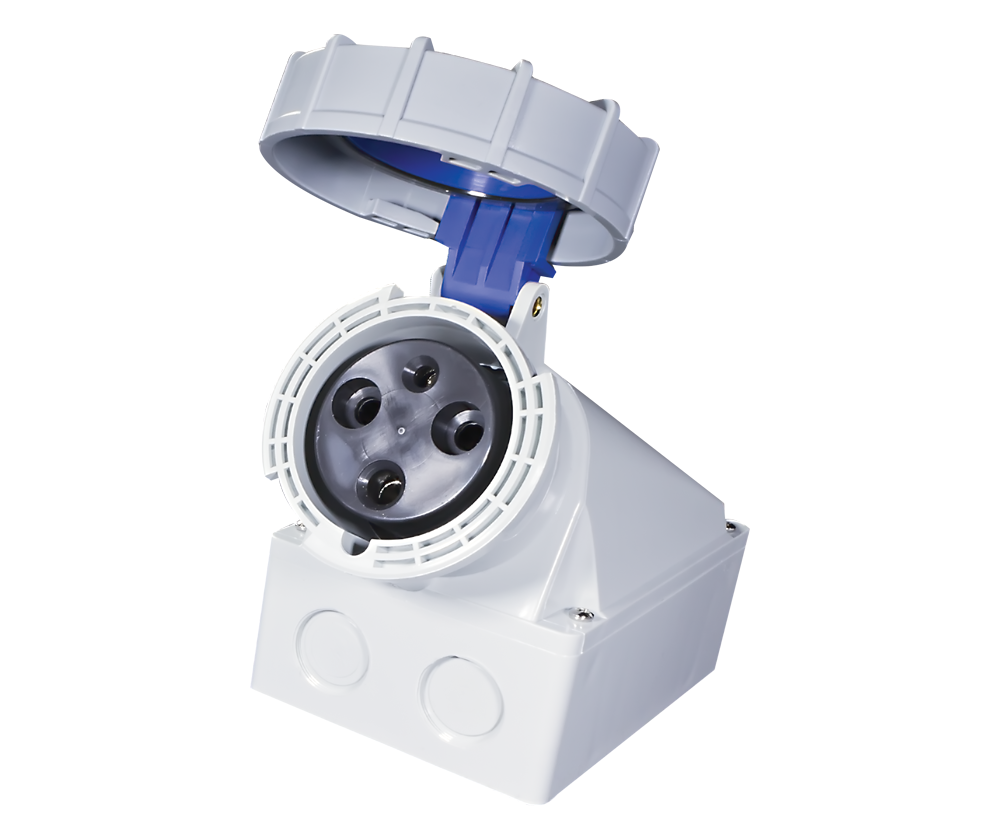

• IP67-rated variants include a spring-loaded hinged cover to protect the socket from dust and water ingress when not in use
• Robust moulded body designed to withstand site, workshop and outdoor conditions
• Wide amperage range (16A-125A) covers everything from portable tools and hand equipment to heavy machinery and distribution boards
• Compatible with matching Onesto Onyx CEE plug tops and couplers

Typical Applications

• Construction site power distribution
• Workshop and factory floor power points
• Outdoor and washdown-area installations (IP67 variants)
• Generator and temporary power connections
• Marine and agricultural power supply points
• Distribution boards, pump and motor control panels

Technical Specifications

Note: 63A and 125A ratings are supplied in IP67 only. The 7 Pin, 16A variant is supplied in a single protection rating as listed by the supplier (not separately offered in both IP44 and IP67).

What's Included

• 1 x CEE Unswitched Socket Outlet (as selected)

Please note: Mounting screws, enclosures, matching plug tops or couplers, cable glands and wiring accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the required current rating (16A-125A) and pin configuration (3 Pin, 4 Pin, 5 Pin or 7 Pin) before ordering
• Confirm voltage: 230V for 3 Pin (2P+E) units, 380V for 4 Pin, 5 Pin and 7 Pin units
• Choose IP44 for indoor or protected installations only; choose IP67 for outdoor, washdown or exposed environments
• This socket must be installed by a suitably qualified electrician, with appropriate upstream circuit protection (isolator, breaker or RCD)
• Confirm compatibility with the plug or coupler it will be paired with before ordering
