LED Pilot Light 22mm AC/DC | Swan Electric PL-AD16 Panel Indicator

The Swan Electric PL-AD16 is a reliable 22mm panel-mount LED pilot light designed to show the status of a circuit or machine on a control panel. It is suitable for electricians, panel builders and maintenance teams and offers a choice of four colours and two supply voltages, making it a practical choice for control panels, distribution boards and machine panels.

• Application: Status indication on control panels, DB boards and machine panels
• Panel hole size: 22mm
• Supply voltage: 24V AC/DC or 230V AC/DC (select your variant)

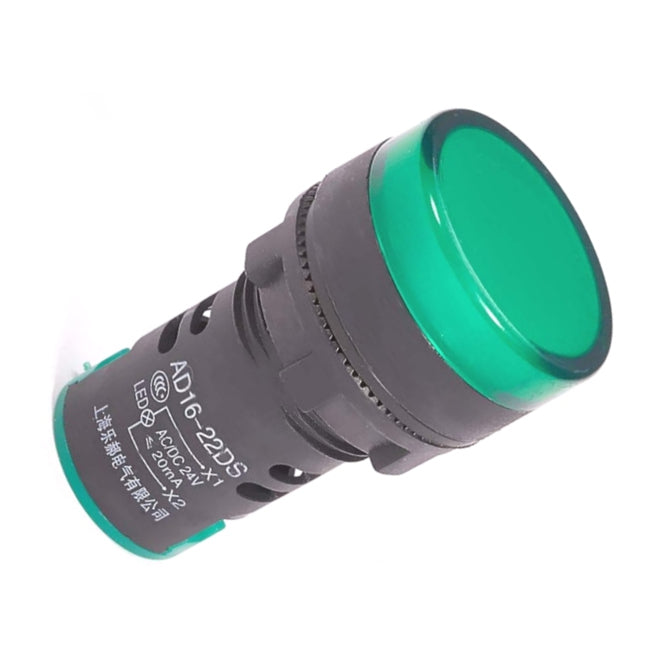

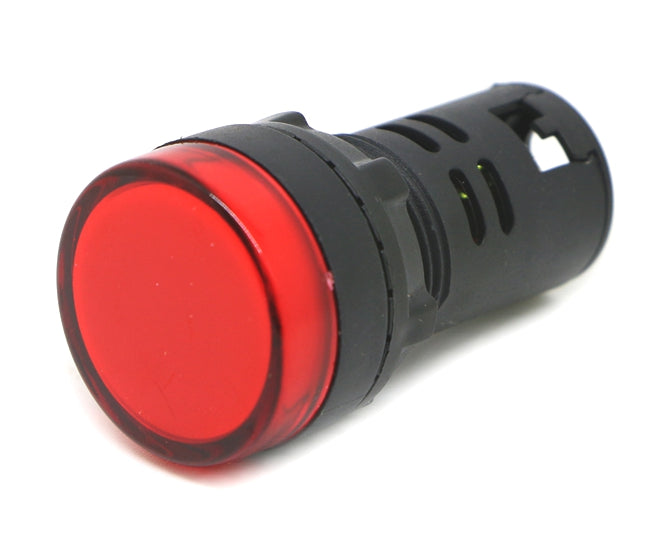

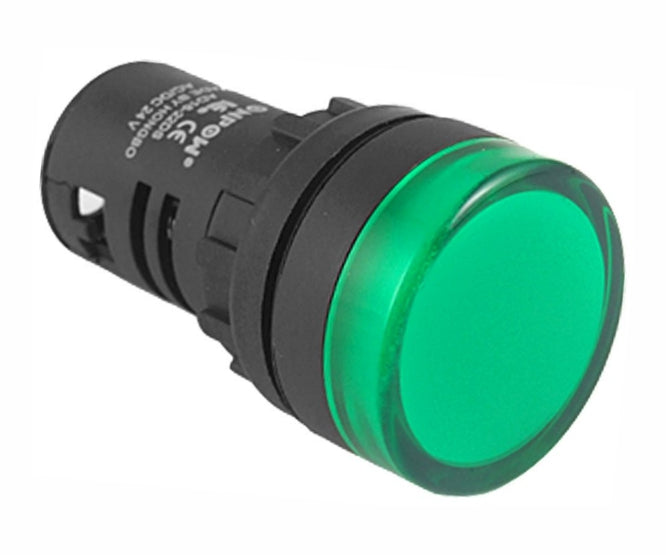

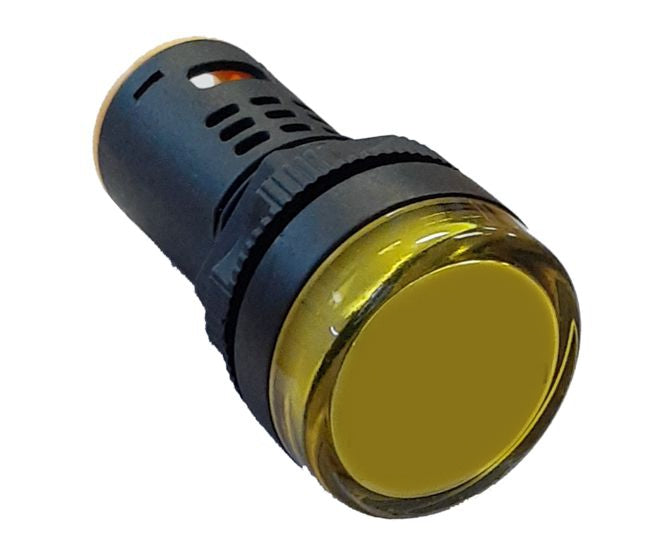

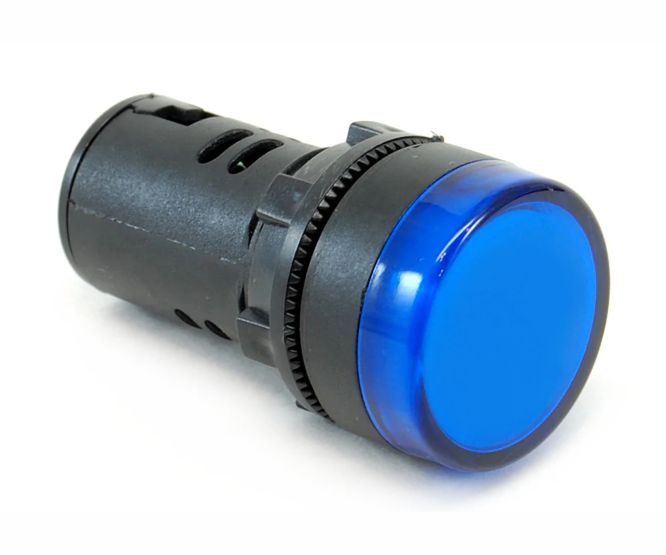

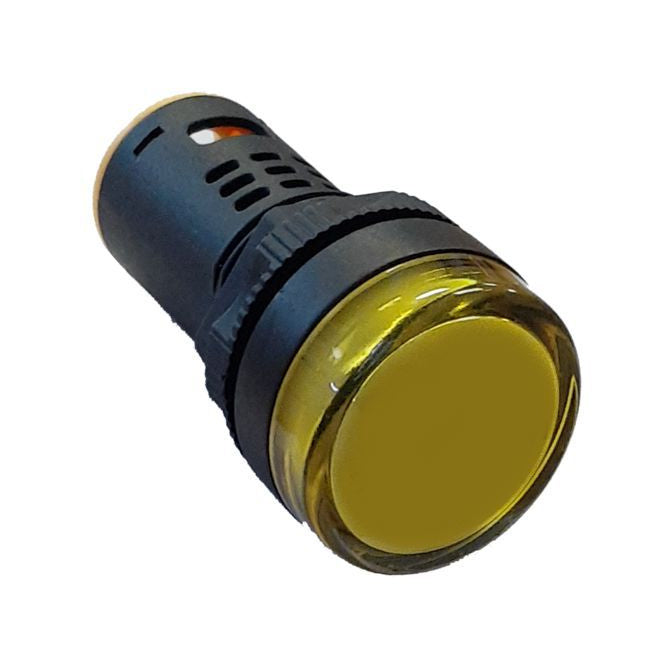

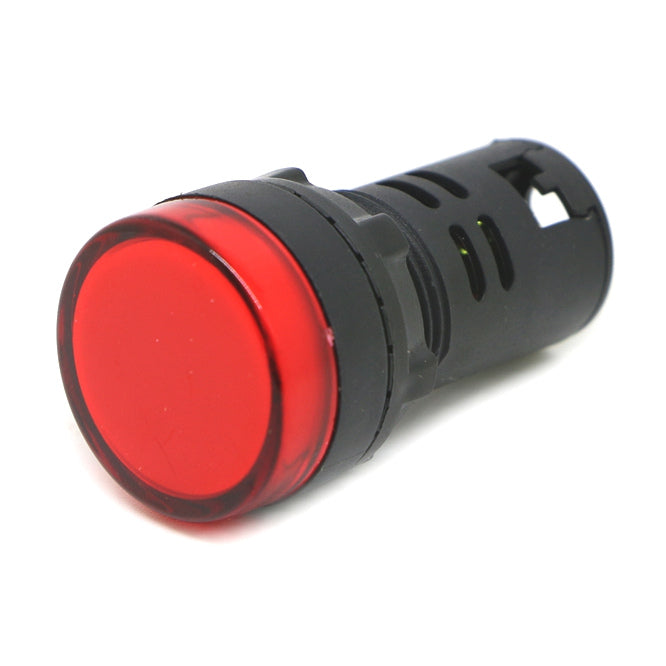

• Colours: Green, Yellow, Red and Blue
• Light source: LED

Key Features

• Standard 22mm mounting hole, so it fits common panel cut-outs
• LED indicator lamp for status display
• Colour options allow clear status coding on panels (for example running, standby, fault)
• Two voltage options let you match the control circuit without a separate transformer

Typical Applications

• Motor control and starter panels
• Distribution boards and control stations
• Pump control panels
• Machine status and power-on indication

Technical Specifications

What's Included

• 1 x Swan Electric PL-AD16 LED pilot light (selected colour and voltage)

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Check that your panel has a 22mm hole before ordering.
• Select the voltage that matches your control circuit exactly. 24V and 230V versions are not interchangeable.
• Installation must be carried out by a qualified electrician with the supply isolated.
• Refer to the technical datasheet on this page for terminal and wiring details.
