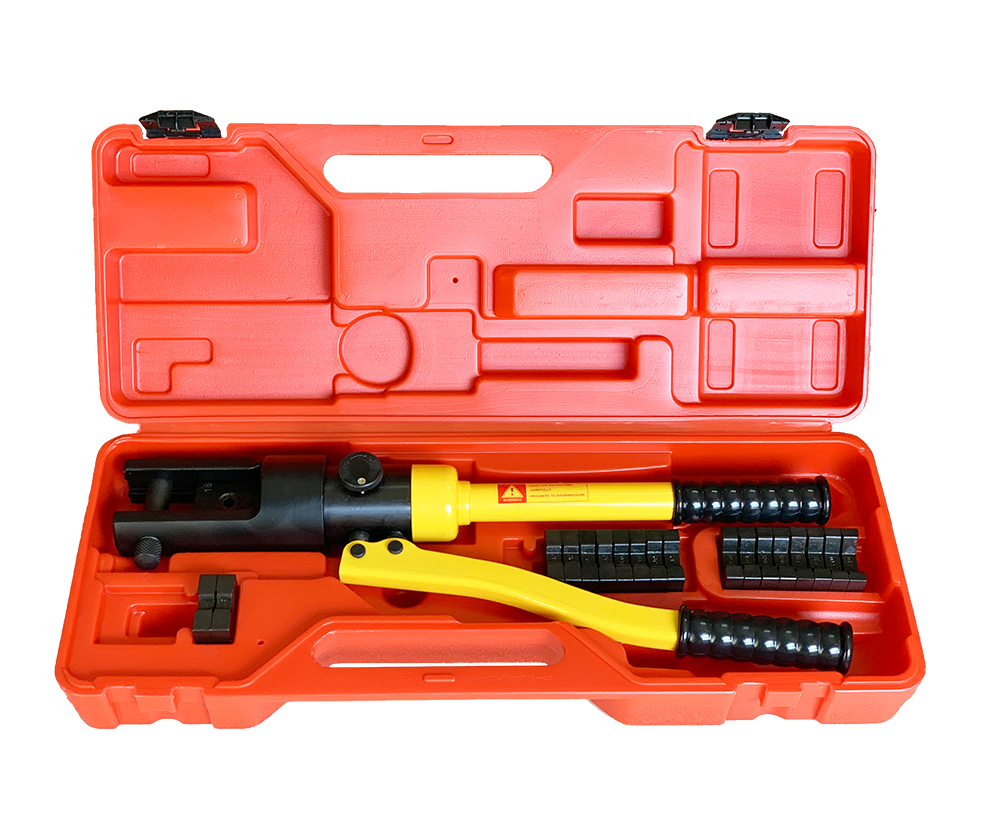

Manual Hydraulic Crimping Tool, 16mm-240mm

The MCE Electric YQK-240 is a manual hydraulic crimping tool for large cable lugs, producing a hexagonal crimp across a 16mm-240mm range. It suits electricians and contractors working on the heaviest gauge cable termination without needing a powered hydraulic pump.

• Application: Crimping large cable lugs with a hexagonal crimp profile
• Key specification: Wire size range 16mm-240mm, manual hydraulic action
• Crimp profile: Hexagonal
• Included dies: Complete with a full set of crimping dies

Key Features

• Manual hydraulic pump action generates the force needed for the largest cable lugs without electricity
• Produces a hexagonal crimp for reliable large-lug termination
• Covers 16mm-240mm, the widest range in the MCE Electric crimping tool line-up
• Supplied complete with dies — no need to source dies separately

Typical Applications

• Heavy-gauge cable lug termination up to 240mm
• Distribution board, substation and large panel feeder cable work
• Contractor and installer heavy cable termination on remote sites without power

Technical Specifications

What's Included

• 1 x YQK-240 manual hydraulic crimping tool
• Full set of crimping dies

Please note: Terminals and cable are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm your terminal size falls within the 16mm-240mm rated range and requires a hexagonal crimp profile before ordering.
• For smaller jobs, the JY-16120 mechanical crimping pliers may be a lighter, lower-cost alternative.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct application and use.

Need help choosing? If you are unsure whether this tool is correct for your terminal size, contact Zisabo and we will assist where possible.
