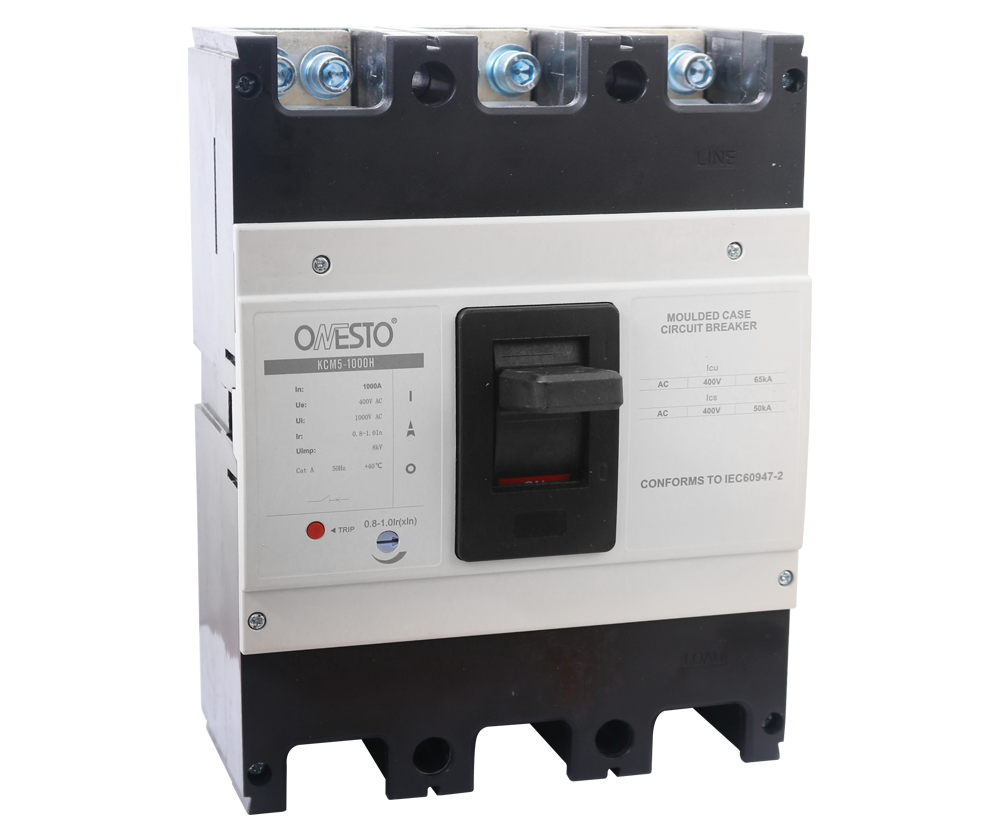

MCCB 1000H Frame, 800A-1000A Adjustable Thermal, 65kA - 3 Pole & 4 Pole | Onesto KCM5

The Onesto KCM5 1000H Frame MCCB is a heavy-duty adjustable thermal-magnetic moulded case circuit breaker for mixed load protection in large industrial electrical installations. It is suitable for electricians, panel builders, contractors and maintenance teams who need high-current protection that can be fine-tuned within its rated band on main incoming supply boards or large plant installations. Available in both 3 Pole and 4 Pole configurations, adjustable from 800A to 1000A.

• Application: Suitable for main incoming supply boards and large industrial plant protection
• Key specification: 800-1000A adjustable thermal band, 65kA Icu / 50kA Ics @ 400V, 690V rated operating voltage
• Pole configuration: Available in 3 Pole or 4 Pole
• Build quality: SABS approved to IEC 60947-2 / SANS 556-1, 1000H frame

Key Features

• Adjustable thermal trip (0.8-1 x In) lets you set the protection point within the 800-1000A band
• Fixed magnetic trip above 10 x In for fast short-circuit clearance
• Moulded case construction for durability in panel and enclosure installations
• Rated for continuous operation at 690VAC, 50/60Hz
• Compatible with matching shunt release, auxiliary contacts, alarm contacts, under-voltage release and vari-depth handle accessories for the 1000H frame range

Typical Applications

• Main incoming supply protection
• Large industrial plant and machinery protection
• Generator and genset protection circuits
• Large commercial and industrial building main protection

Technical Specifications

What's Included

• 1 x Onesto KCM5 1000H Frame Adjustable Thermal MCCB (as per selected pole configuration)

Please note: Enclosures, shunt release, auxiliary contacts, alarm contacts, under-voltage release, vari-depth handles and extension connectors are not included and are available separately.

Installation & Compatibility Notes

• Confirm the required number of poles before ordering.
• The thermal setting is adjustable only within the marked 800-1000A band.
• Confirm the breaker will be installed in a suitable enclosure rated for the 1000H frame size.
• Installation must be carried out by a suitably qualified electrician in accordance with local electrical regulations.
• Confirm incoming supply fault-level requirements before specifying, given the high current involved.
