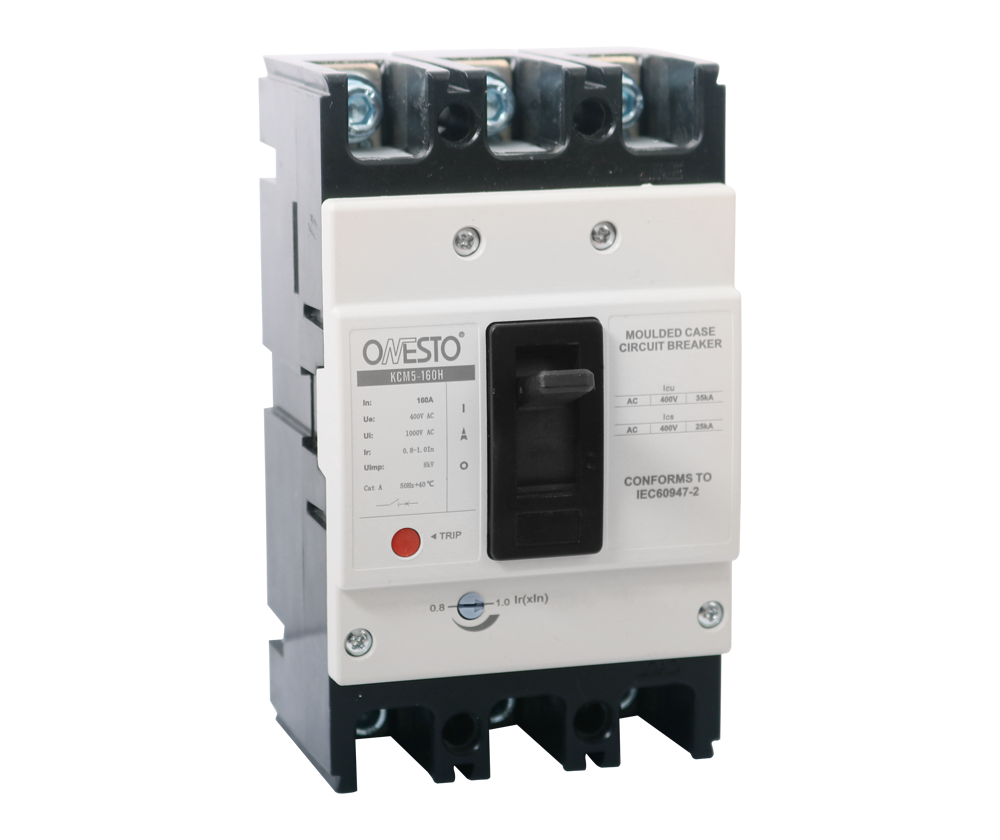

MCCB 160H Frame, 32A-160A Adjustable Thermal, 35kA - 3 Pole & 4 Pole | Onesto KCM5

The Onesto KCM5 160H Frame MCCB is an adjustable thermal-magnetic moulded case circuit breaker for mixed load protection, letting you fine-tune the current setting within each marked band instead of being locked to one fixed rating. It is suitable for electricians, panel builders, contractors and maintenance teams who need protection that can be set to match the actual load rather than over- or under-sizing a fixed breaker. Available in seven adjustable current bands from 32A to 160A, in both 3 Pole and 4 Pole configurations.

• Application: Suitable for distribution boards, sub-main protection and machinery feeder circuits where fine current adjustment is useful
• Key specification: Adjustable thermal 0.8-1 x In, fixed magnetic trip above 10 x In, 35kA Icu / 18kA Ics @ 400V, 690V rated operating voltage
• Current range: 32-40A, 40-50A, 52-65A, 64-80A, 80-100A, 100-125A or 128-160A
• Pole configuration: Available in 3 Pole or 4 Pole
• Build quality: SABS approved to IEC 60947-2 / SANS 556-1, 160H frame

Key Features

• Adjustable thermal trip lets you set the protection point within each band, reducing the number of fixed ratings you need to stock
• Fixed magnetic trip above 10 x In for fast short-circuit clearance
• Moulded case construction for durability in panel and enclosure installations
• Rated for continuous operation at 690VAC, 50/60Hz
• Compatible with matching shunt release, auxiliary contacts, alarm contacts, under-voltage release and vari-depth handle accessories for the 160H frame range

Typical Applications

• Domestic and commercial distribution board protection
• Sub-main circuit protection
• Motor and machinery feeder protection
• Generator and genset protection circuits
• Light industrial panel installations where load current may vary or grow

Technical Specifications

What's Included

• 1 x Onesto KCM5 160H Frame Adjustable Thermal MCCB (as per selected current band and pole configuration)

Please note: Enclosures, shunt release, auxiliary contacts, alarm contacts, under-voltage release, vari-depth handles and extension connectors are not included and are available separately.

Installation & Compatibility Notes

• Confirm the required current band and number of poles before ordering.
• The thermal setting is adjustable only within the marked band (0.8-1 x In) — select the band that covers your actual load current, not just the closest number.
• Confirm the breaker will be installed in a suitable enclosure rated for the 160H frame size.
• Installation must be carried out by a suitably qualified electrician in accordance with local electrical regulations.
