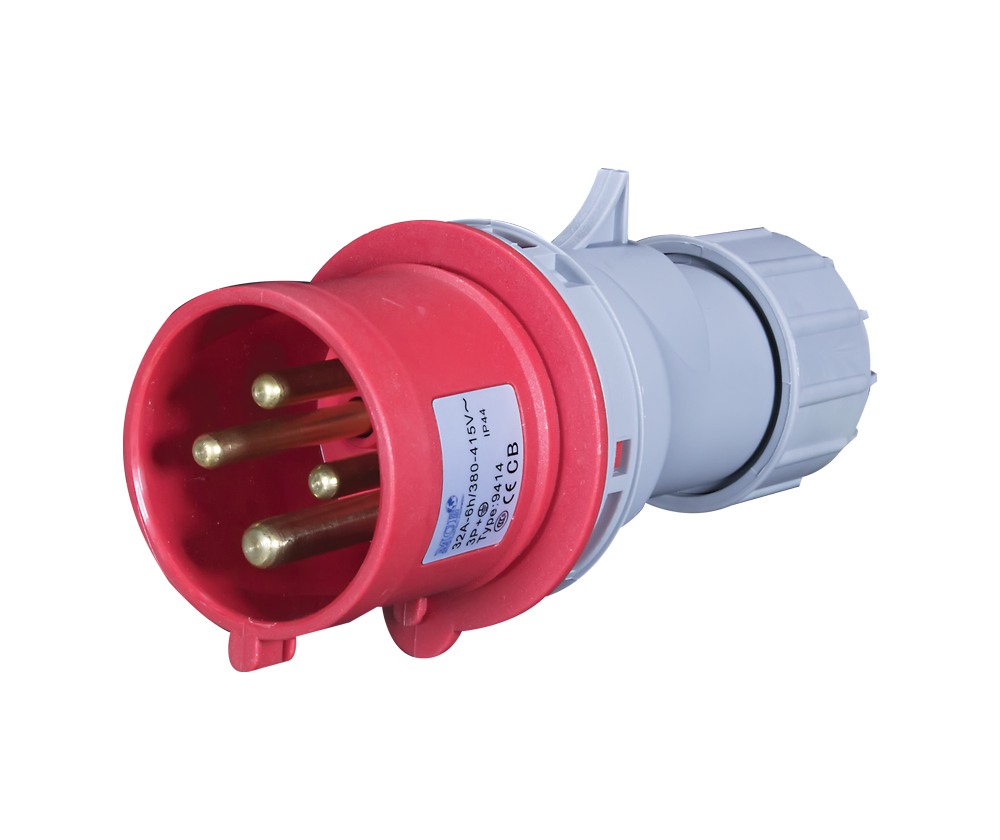

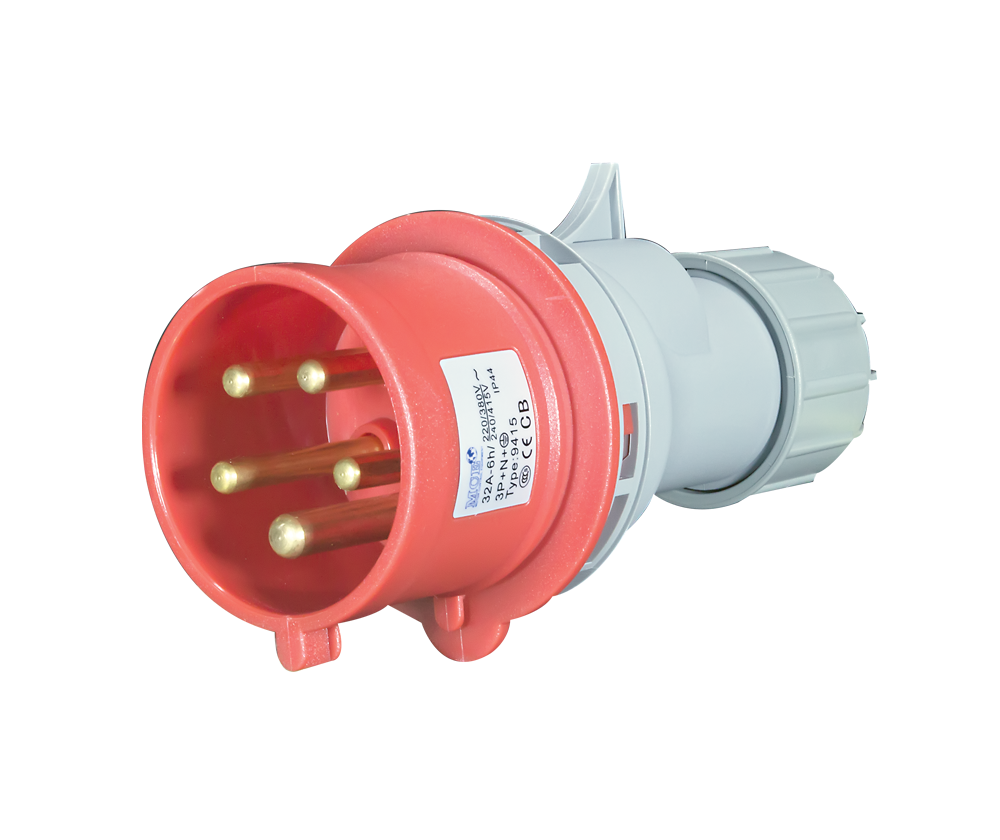

MCE IP44 Industrial CEE Male Plug Top – 16A & 32A | 3P, 4P & 5P

MCE IP44-rated industrial CEE male plug tops for use with matching CEE socket outlets and appliance inlets. Available in 16A and 32A ratings with 3-pin (2P+E / 230V single phase), 4-pin (3P+E / 380V three phase), and 5-pin (3P+N+E / 380V three phase with neutral) configurations. Colour-coded to IEC 60309 standard: blue for 230V single-phase, red for 380V three-phase. The IP44 splash-proof rating makes these suitable for industrial, commercial, and temporary power applications including site power, generator connections, motor feeds, and panel distribution systems.

• Application: Industrial power connections, site power, generator hookup, motor feeds, panel distribution
• Current ratings: 16A and 32A
• Configurations: 3 Pin (2P+E / 230V), 4 Pin (3P+E / 380V), 5 Pin (3P+N+E / 380V)
• Protection: IP44 splash-proof rated
• Colour coding: Blue = 230V single phase / Red = 380V three phase
• Type: Male plug top – for use with CEE socket outlets or CEE appliance inlets

Key Features

• IP44 rated for splash protection in industrial and semi-outdoor environments
• Available in 16A and 32A to suit different load and circuit requirements
• Three pin configurations: 3-pin (230V single phase), 4-pin (380V 3-phase), 5-pin (380V 3-phase + neutral)
• Standard IEC 60309 CEE industrial plug format – compatible with matching CEE sockets and inlets
• Colour-coded per IEC standard for quick visual identification on site
• Economical design suitable for high-volume contractor and site installations

Typical Applications

• Site power and temporary power connections
• Generator and distribution board connections
• Industrial panel power feeds
• Motor and machinery power connections
• Pump and compressor power supply
• Commercial power distribution
• Workshop and factory power outlets

Technical Specifications

Variant Reference

What's Included

• 1 x MCE IP44 CEE Male Plug Top (as per selected specification)

Please note: Cable, socket outlets, appliance inlets, and installation accessories are not included. Matching CEE socket outlets and panel mount appliance inlets are available separately from Zisabo.

Installation & Compatibility Notes

• Select the correct current rating (16A or 32A) for your load and circuit protection
• Select the correct pin configuration to match your supply: 3P (230V single phase), 4P (380V 3-phase), or 5P (380V 3-phase + neutral)
• Ensure your matching socket outlet or appliance inlet is the same current rating and pin configuration
• IP44 rating is suitable for splash-protected indoor and semi-outdoor environments – not suitable for full immersion
• Installation should be carried out by a suitably qualified electrician in accordance with applicable standards
• If unsure of the correct pin configuration or current rating for your application, contact Zisabo before ordering

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you are unsure which plug top is correct for your system, contact Zisabo with your supply voltage, current rating, and pin configuration requirements and we will assist where possible.
