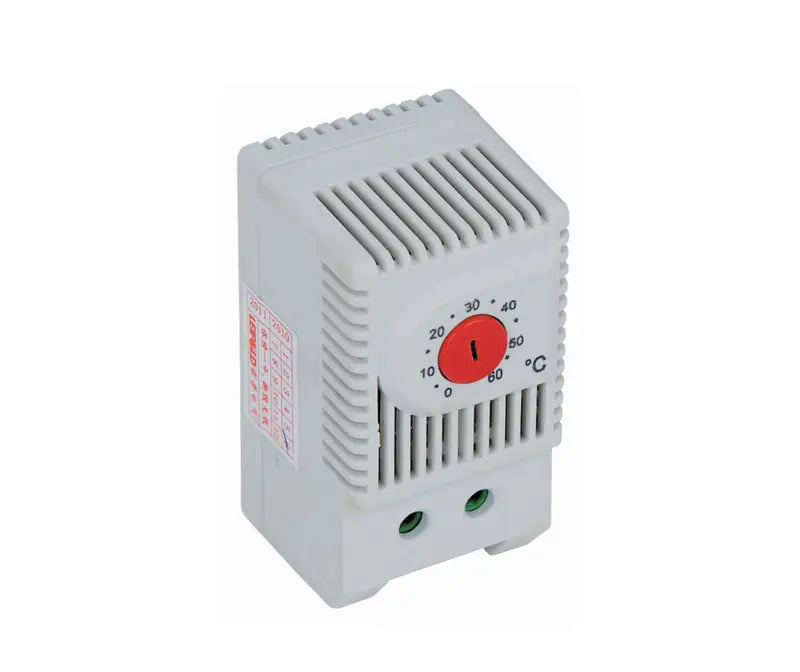

Mechanical Bi-Metal Thermostat, DIN Rail, 10A 250VAC, NC, NO or NO+NC | MCE JWT6011R, JWT6011F & JWT6012

This mechanical bi-metal thermostat for DIN rail mounting, available with normally closed, normally open or combined contacts from MCE Electric is suitable for installers, electricians and maintenance teams, and is a practical choice for panel and enclosure temperature control (heating or cooling).

• Application: Panel and enclosure temperature control (heating or cooling)
• Available options: 3 models - select contacts above
• Rating: 10A - 250VAC
• Mounting: DIN rail

Key Features

• Product type: Mechanical bi-metal thermostat
• Contacts: 1 N/C (6011R), 1 N/O (6011F), 1 N/O + 1 N/C (6012)
• Rating: 10A - 250VAC
• Compact 60 x 33 x 43mm DIN rail body

Typical Applications

• Panel and enclosure temperature control (heating or cooling)
• Fan and heater thermostat control in distribution boards

Technical Specifications

What’s Included

• 1 x Mechanical Bi-Metal Thermostat (model as selected)

Please note: Installation fittings, enclosures, cables, electrical protection and accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the required contact type (N/C, N/O or both) and the temperature range needed before ordering.
• Check the load, contact rating and wiring requirements against the specification table.
• Installation should be carried out by a suitably qualified person where required, with the supply isolated.
• Specifications are taken from the MCE Electric catalogue. Contact Zisabo if you need a detail that is not listed.
