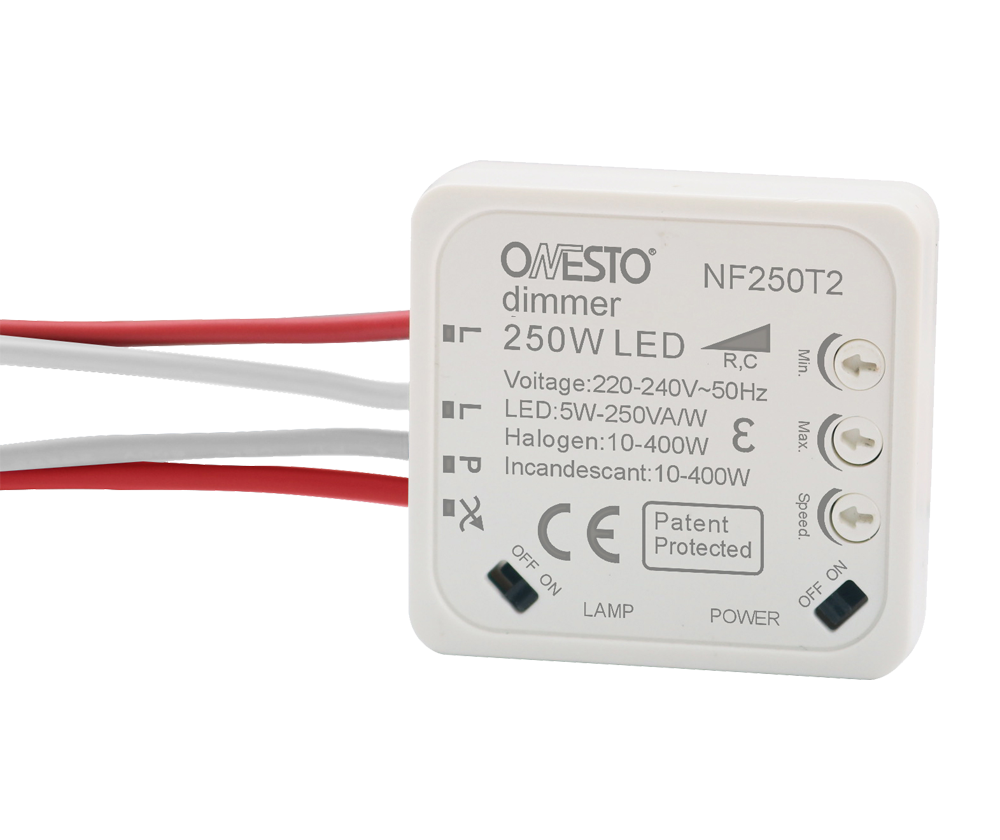

O-lite NF250T2 Multi-Way Trailing Edge Dimmer – 5W-250W, Min-Max Level & Memory

The O-lite NF250T2 is an advanced 5W-250W trailing edge dimmer for LED lamps, offering multi-way control (dimming from more than one switch position) plus adjustable minimum/maximum dimming level, dimming speed, and power & light memory that restores the last-used brightness after a power cut. It dims up to 35 O-lite LED GU10's.

• Application: Advanced multi-way dimming control for dimmable LED circuits
• Key specification: Trailing edge dimming, multi-way control, adjustable min brightness level, IP20, FOR LED LAMPS
• Load rating: 5W-250W, dims a maximum of 35 O-lite LED GU10's
• Advanced features: Min-max dimming level, dimming speed adjustment, power & light memory

Key Features

• Multi-way control allows dimming from more than one switch location (unlike the standard 1-way NF-series dimmers)
• Adjustable minimum brightness level prevents LED flicker at very low dim settings
• Power & light memory restores the last brightness setting after a power interruption
• Adjustable dimming speed to fine-tune the fade response
• Patent protected design

Typical Applications

• Rooms with multiple switch locations needing synchronised dimming control
• Installations where consistent brightness recall after power cuts is important

Technical Specifications

What's Included

• 1 x O-lite NF250T2 multi-way trailing edge dimmer

Please note: GU10 lamps, mounting plate/switch cover and wiring are not included unless specifically listed above. Quantities of dimmable GU10's are calculated using O-lite's own LED GU10 range — dimmable quantities may vary with other brands.

Installation & Compatibility Notes

• Confirm the total connected LED load does not exceed 250W before ordering.
• For a simpler single-location, 1-way dimmer, see O-lite's NF100T/NF150T/NF250T range instead.
• This is a mains-voltage electrical component — installation should be carried out by a suitably qualified electrician.
