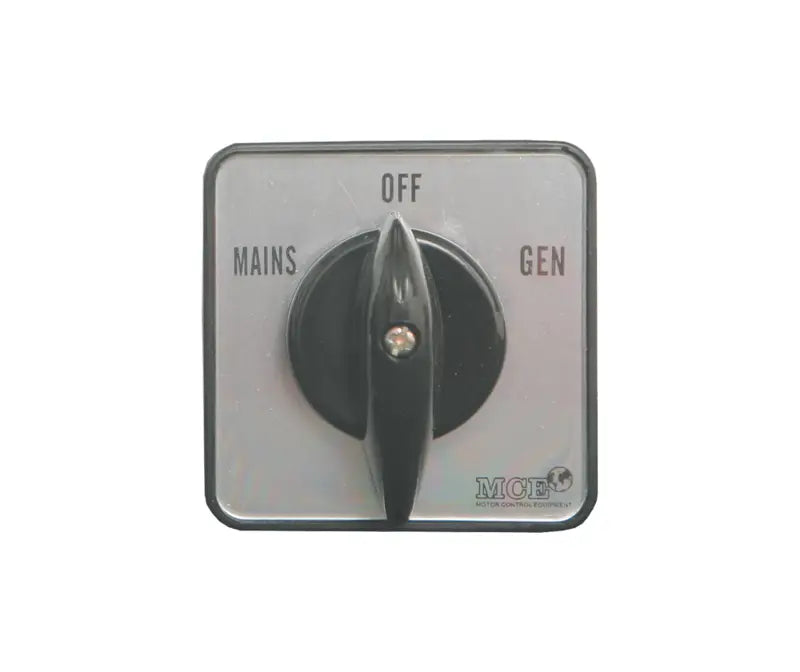

Panel Mount Change Over Switch 10A–125A, 2-4 Pole | MCE C Series

The MCE C Series Panel Mount Change Over Switch is a manual rotary switch that transfers a load between two supplies, such as municipal mains and a generator or inverter. It suits electricians, panel builders and maintenance teams who need a compact changeover for switchboards and control panels in ratings from 10A to 125A.

• Application: Manual mains / generator changeover on panels and switchboards
• Current ratings: 10A to 125A (2P up to 80A, 3P and 4P up to 125A)
• Poles: 2, 3 and 4 pole versions
• Mounting: Panel (door) mounting
• Brand: MCE Electric

Key Features

• Rotary changeover switching between two supplies so both cannot be connected at the same time
• Three pole configurations in one range so the switch can match single-phase or three-phase supplies
• Wide current range from 10A to 125A for domestic, commercial and light industrial panels
• Panel mounting for neat installation in enclosures and switchboard doors

Typical Applications

• Generator to mains changeover
• Inverter or solar backup transfer
• Machine and motor supply selection
• Switchboards and control panels
• Domestic, commercial or light industrial use

Technical Specifications

Variant Reference

What's Included

• 1 x Panel Mount Change Over Switch in the selected current rating and pole configuration

Please note: Enclosures, cables, lugs and mounting accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Select the current rating above the full load current of the circuit being switched.
• Choose 2P for single-phase, 3P for three-phase and 4P where the neutral must also be switched.
• Check panel cut-out and mounting depth before ordering.
• Installation must be carried out by a suitably qualified electrician in line with SANS 10142.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application.

Need help choosing? Send Zisabo your supply type, load current and number of poles required and we will assist where possible.
