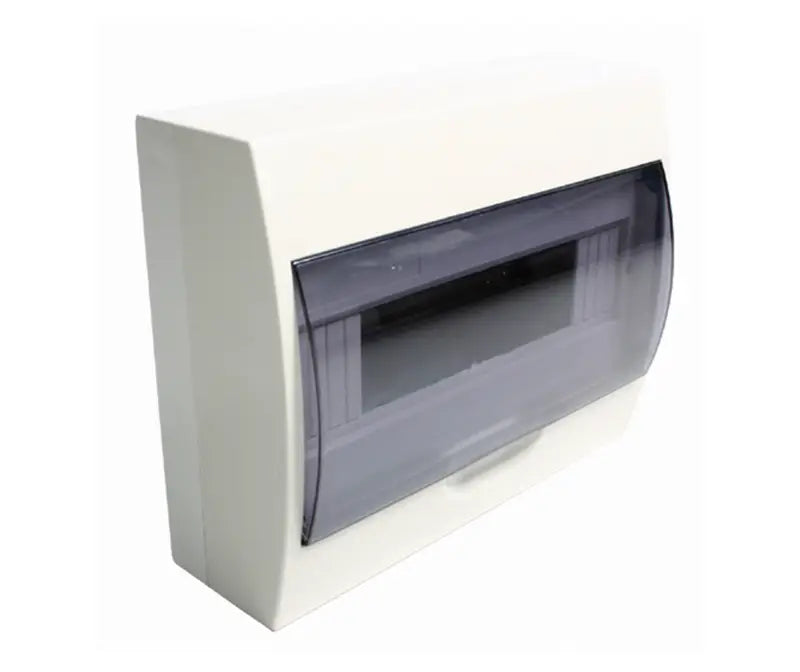

• MCE plastic surface mounting distribution board with grey lid
1 1

MCE Electrical

Plastic Surface Distribution Board, 2–45 Way, White with Grey Lid | MCE DB-P-S

Plastic Surface Distribution Board, 2–45 Way, White with Grey Lid | MCE DB-P-S

R 50.80
R 50.80
Sale Sold out
Learn how Mobicred works
Taxes included. Shipping calculated at checkout.
Ways

The MCE plastic surface mounting distribution board is a white IP41 DB enclosure with a grey lid, designed to house MCBs and earth leakage devices on the wall surface. Eleven sizes from 2 way to 45 way suit electricians, contractors and homeowners wiring domestic and light commercial circuits.

  • Application: Surface mounted MCB distribution board
  • Capacity: 2 way up to 45 way (3 x 15)
  • IP rating: IP41
  • Colour: White with grey lid
  • Material: Plastic
  • Mount type: Surface

Key Features

  • Eleven sizes so you can match the board to the number of circuits.
  • Complete with earth and neutral bar.
  • Single-row boards up to 18 way, with multi-row 24, 36 and 45 way options.
  • Surface mounting means no chasing into walls.

Typical Applications

  • Domestic distribution boards
  • Sub-boards for garages, workshops and outbuildings
  • Light commercial installations
  • Board replacements and upgrades

Technical Specifications

Part No Dimensions L x W x D (mm) Modules Layout
DB-2W-P-S 140 x 90 x 85 2 1 x 2 Way
DB-4W-P-S 210 x 112 x 85 4 1 x 4 Way
DB-6W-P-S 210 x 148 x 85 6 1 x 6 Way
DB-8W-P-S 210 x 184 x 85 8 1 x 8 Way
DB-10W-P-S 210 x 222 x 85 10 1 x 10 Way
DB-12W-P-S 210 x 256 x 85 12 1 x 12 Way
DB-15W-P-S 310 x 200 x 85 15 1 x 15 Way
DB-18W-P-S 222 x 364 x 85 18 1 x 18 Way
DB-24W-P-S 325 x 270 x 85 24 2 x 12 Way
DB-36W-P-S 473 x 305 x 95 36 3 x 12 Way
DB-45W-P-S 473 x 326 x 95 45 3 x 15 Way
Brand MCE Electric
Colour White with grey lid
Mount type Surface
IP rating IP41

What’s Included

  • 1 x plastic surface mounting distribution board with earth and neutral bar (selected size)

Please note: MCBs, earth leakage units, busbars, cables and fixings are not included unless specifically listed above.

Installation & Compatibility Notes

  • Count the circuits you need now and allow spare ways for future expansion.
  • Confirm your breakers are standard DIN rail modules that suit the board.
  • This board is IP41 rated for indoor use. For outdoor or damp areas choose a weatherproof IP65 board.
  • Wiring and board installation must be carried out by a suitably qualified person, with a certificate of compliance issued where required.

Warranty & Support

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? Contact Zisabo with your number of circuits and installation location and we will help you choose the right board.
