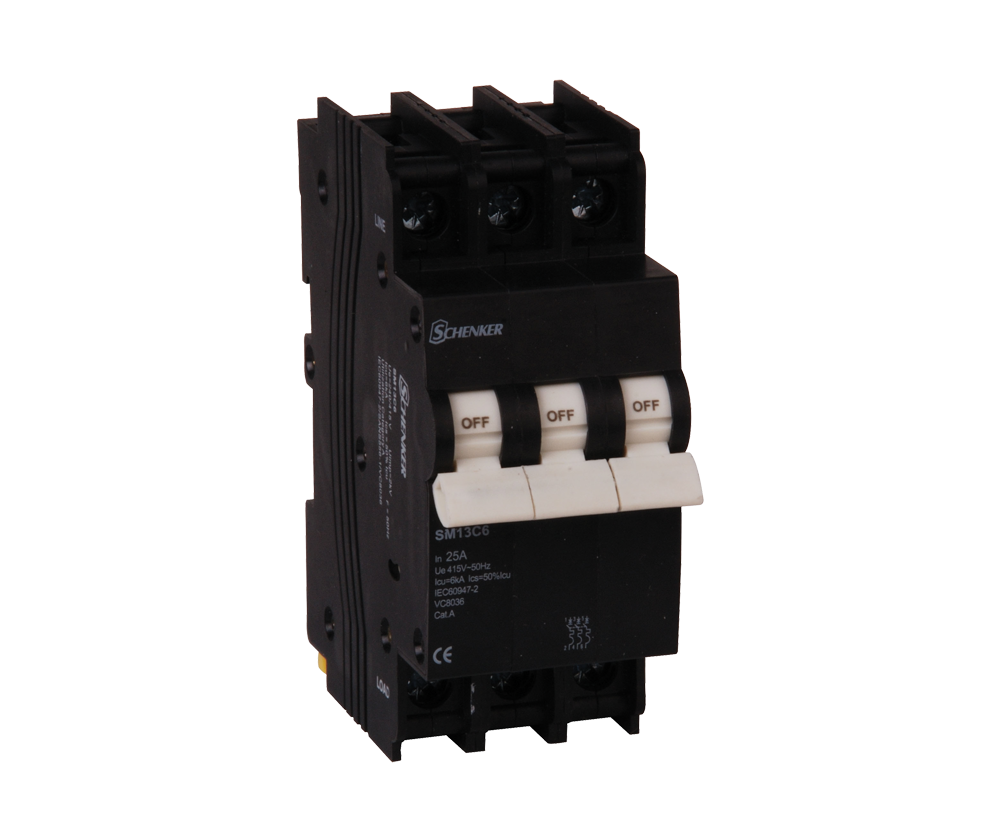

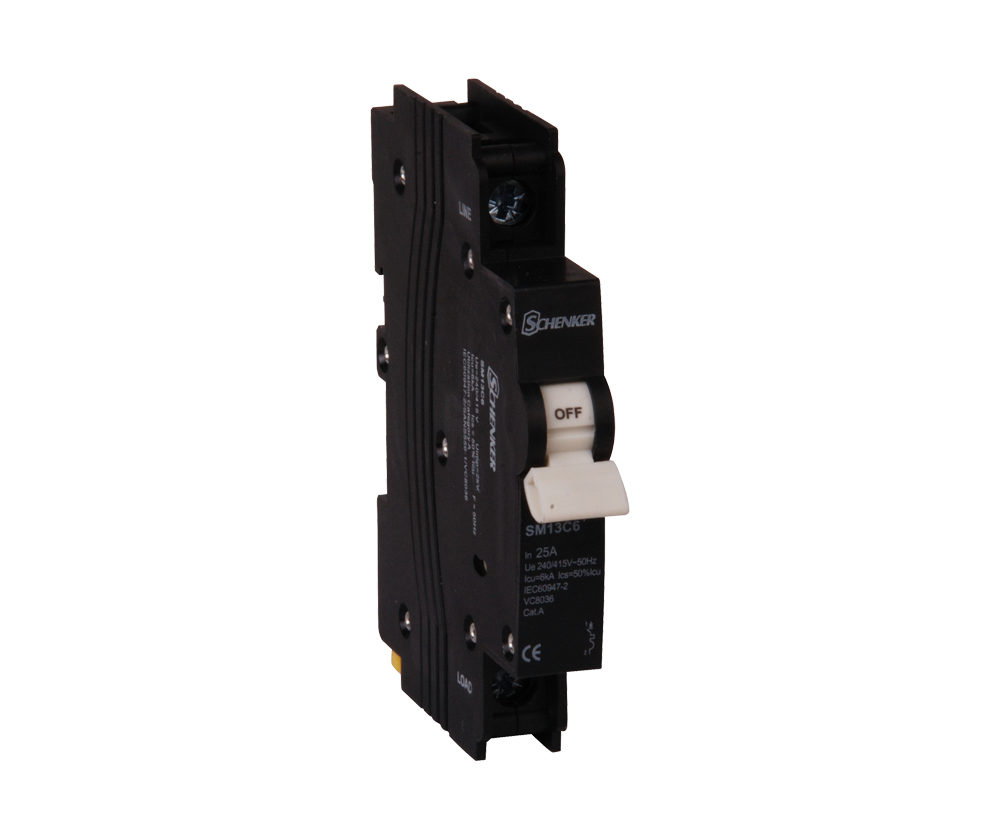

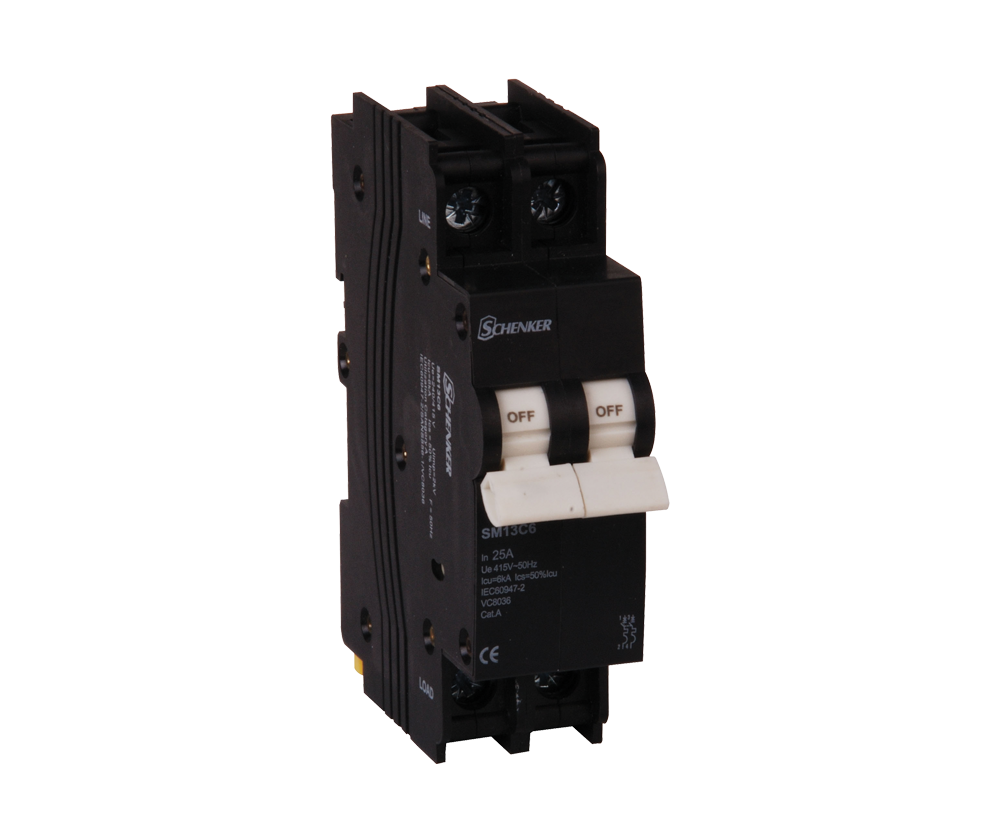

Schenker | 13mm MCB, 6kA C Curve, 1-3 Pole

The Schenker SM13C6 is a 13mm module width miniature circuit breaker (MCB) with a 6kA breaking capacity and C curve trip characteristic, for protection and control of circuits against short circuits and overloads. It suits electricians and installers wiring domestic and commercial distribution boards where a higher breaking capacity than the 3kA range is needed, using the 13mm Schenker mini rail system.

• Application: Circuit protection against short circuits and overloads, higher breaking capacity installations
• Key specification: 6kA breaking capacity, C curve, 13mm module width
• Ratings: 1A to 63A across 1, 2 and 3 pole versions
• Voltage rating: 240/415VAC, 50/60Hz

Key Features

• SABS approved, in accordance with IEC 60947-2 and VC8036
• 6kA breaking capacity — higher than the SM13C3 3kA range, for installations with higher prospective fault current
• C curve trip characteristic, suitable for general domestic and commercial circuits
• 13mm module width, compatible with the Schenker SM13 mini rail system and SCU distribution boards
• Wide range of current ratings (1A-63A) across 1, 2 and 3 pole versions to match your circuit design

Typical Applications

• Domestic distribution board circuit protection where higher breaking capacity is specified
• Commercial and light industrial circuit protection
• General overload and short-circuit protection on 13mm Schenker distribution boards

Technical Specifications

What's Included

• 1 x Schenker SM13C6 MCB (amperage and pole count per variant selected)

Please note: Mini rail, distribution board, busbar and wiring accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the correct amperage rating for your circuit load and cable size before ordering — an incorrectly rated breaker can leave a circuit unprotected or trip nuisance.
• Confirm this is the correct pole count (1P/2P/3P) for your supply configuration.
• Flagged for confirmation: the supplier price list shows the 3 Pole 6A, 10A, 16A, 20A and 25A ratings (SM13C6-306/310/316/320/325) priced the same as the 3kA range (R325.40/cost R198.10) rather than in line with the rest of the 6kA 3 Pole range (R424.30/cost R258.30, which the 1A-4A and 32A-63A 3 Pole ratings and the matching D Curve versions all use). This looks like a likely price list data entry error rather than an intentional discount — contact Zisabo to confirm current pricing on these specific 5 ratings before ordering.
• Installation should be carried out by a suitably qualified electrician.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure which rating, pole count or breaking capacity is correct for your installation, contact Zisabo and we will assist where possible.
