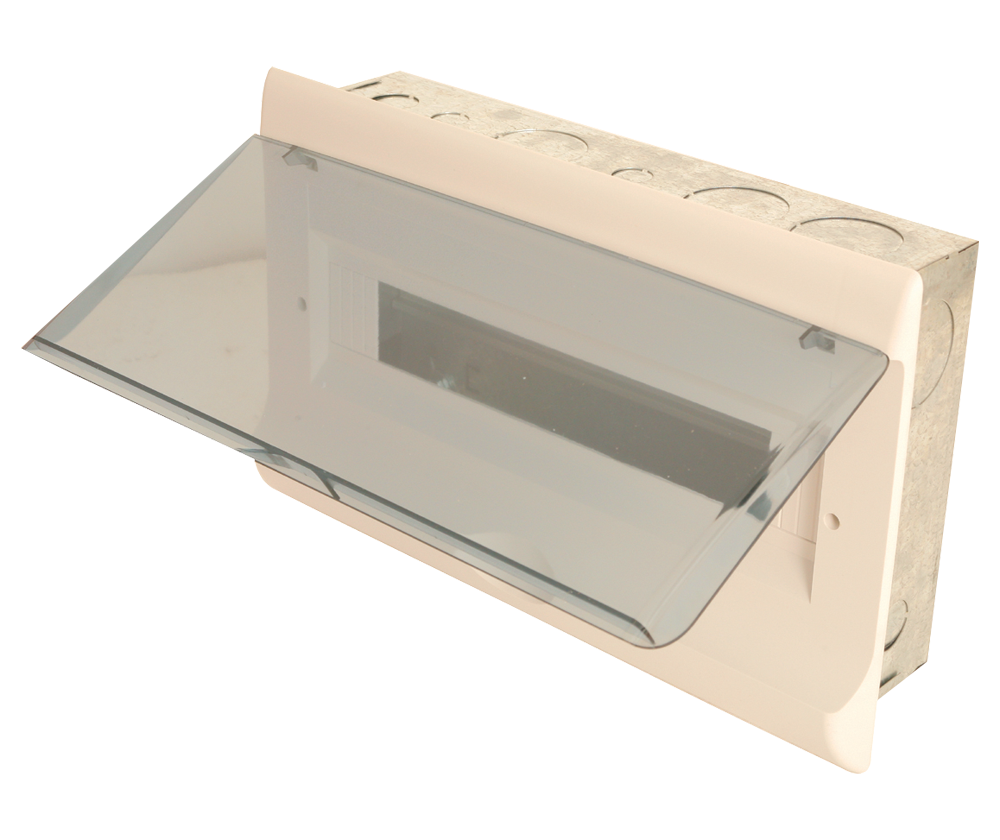

Schenker | Adjustable Flush Mounting Distribution Board, 24 Way

The Schenker SDB1-24W-A-F is an adjustable flush-mounting distribution board with earth and neutral bars included, sized to accept either 19mm-pitch (SMC1) or 13mm-pitch (SM13) Schenker circuit breakers. It suits electricians and installers building a flush-mounted distribution board where the exact breaker mix may vary.

• Application: Flush-mounted distribution board for Schenker circuit breakers, with earth and neutral bars included
• Key specification: 360(L) x 220(W) x 80(H)mm, IP41
• Way count: 12 Modules / 12 Way using SMC1 (19mm) breakers, or 24 Modules / 24 Way using SM13 (13mm) breakers
• Earth & neutral bars: Included

Key Features

• Adjustable board that accepts either 19mm-pitch (SMC1) or 13mm-pitch (SM13) Schenker breakers, giving flexibility in how many ways you fit
• Earth and neutral bars included, unlike the standard SCU range where these are supplied separately
• IP41 rated for standard indoor flush-mount installation
• Flush mounting for a clean finish set into a wall

Typical Applications

• Domestic and light commercial flush-mounted distribution boards
• Installations mixing breaker pitches or needing flexibility in way count

Technical Specifications

What's Included

• 1 x Schenker SDB1-24W-A-F flush mounting distribution board enclosure
• Earth bar
• Neutral bar

Please note: Circuit breakers and other DIN/mini rail devices are not included unless specifically listed above. A smaller 20-way version (SDB1-20W-A-F) exists in this range but is not currently listed — contact Zisabo to check availability.

Installation & Compatibility Notes

• Decide whether you'll be fitting 19mm-pitch (SMC1) or 13mm-pitch (SM13) breakers, as this determines your effective way count (12 vs 24).
• Installation should be carried out by a suitably qualified electrician.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this board is correct for your installation, contact Zisabo with your breaker pitch and way count requirements, and we will assist where possible.
