Solar PV Fuse Holder 1000VDC, 1 Pole | Onesto

The Solar PV Fuse Holder is a 1-pole, 1000VDC rated holder for PVH-series solar PV fuses, used to fuse individual strings in a combiner box or array. It is suitable for solar installers and system designers building or servicing DC combiner circuits, with three series available to match the required current rating.

• Application: 1-pole PV string fusing in combiner boxes
• Voltage rating: 1000VDC

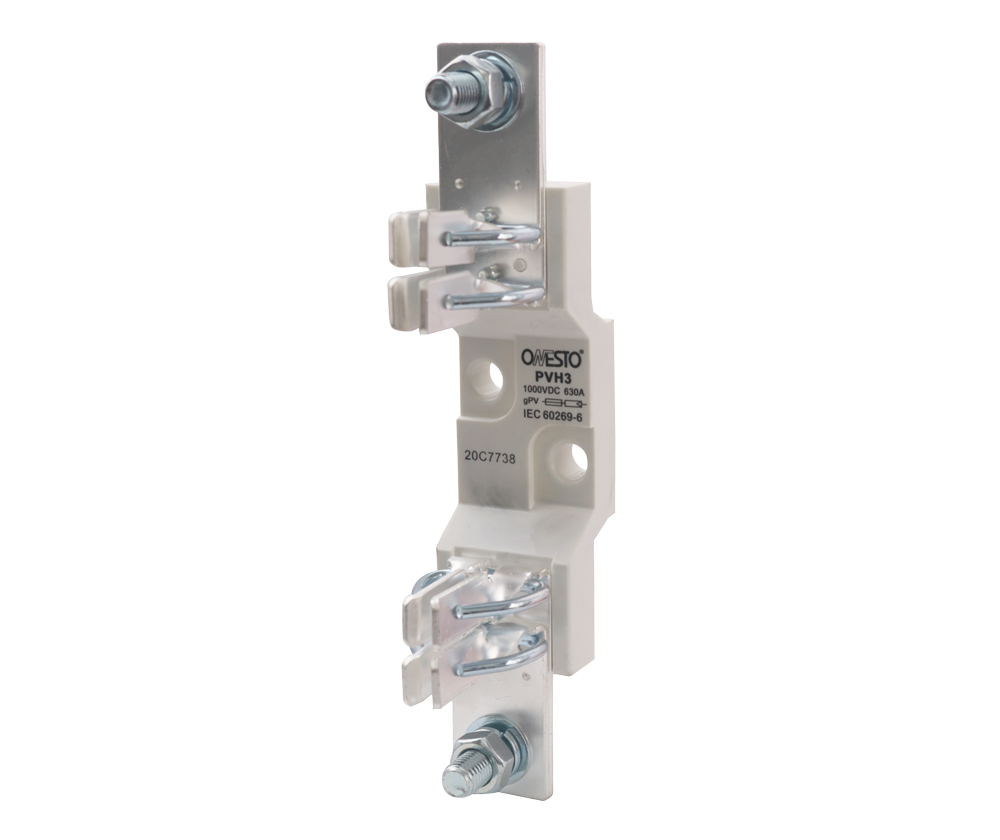

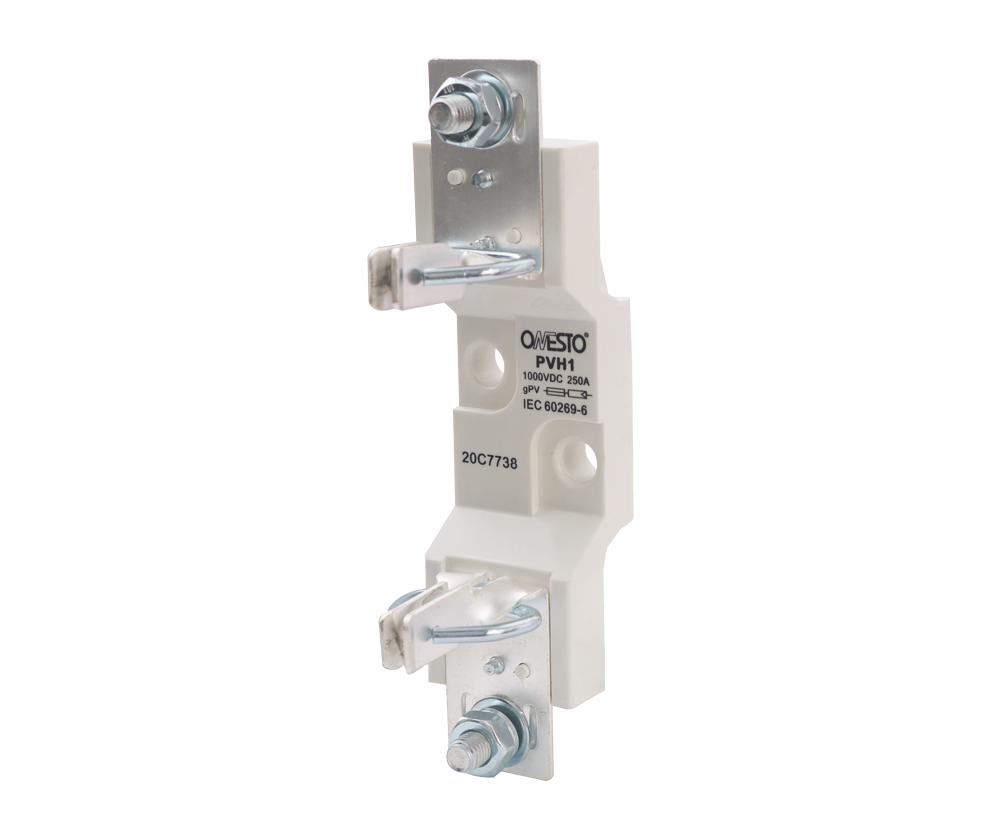

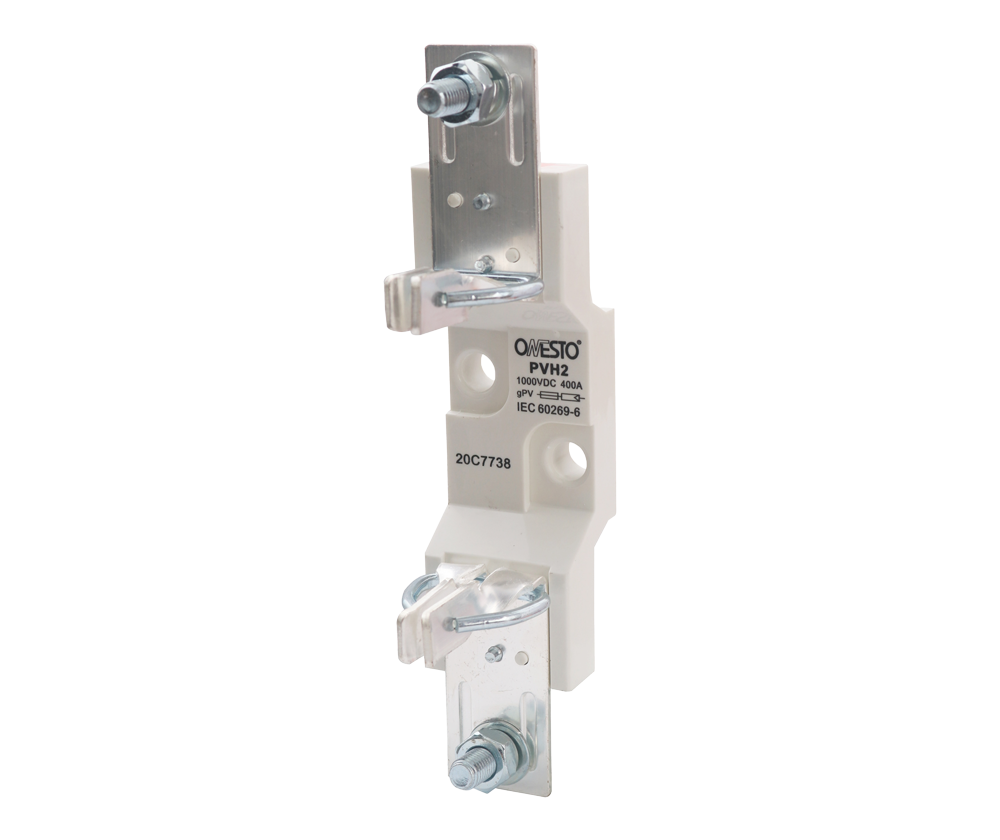

• Series options: PVH1-FH (50-160A), PVH2-FH (200-250A), PVH3-FH (315-630A)
• Compatibility: Matched to PVH1/PVH2/PVH3 fuses

Key Features

• 1000VDC rating suits modern high-voltage PV string configurations
• Three series cover 50A through to 630A in a single 1-pole holder format
• Designed as a matched pair with Onesto PVH-series fuses
• Compatible with the PVH-FP fuse puller for safe servicing

Typical Applications

• Solar PV string fusing
• DC combiner box construction
• Grid-tied and off-grid solar arrays
• Solar installer and EPC contractor use

Technical Specifications

What's Included

• 1 x Solar PV Fuse Holder 1000VDC, 1 Pole (series as selected)

Please note: PVH fuses and DC cabling are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the correct PVH series and current rating for your array string before ordering.
• Confirm the fuse in use matches the holder's PVH series.
• Installation should be carried out by a suitably qualified electrician where required.
