Surface Mount Appliance Inlet – IP44 & IP67 | 16A to 63A | 3P, 4P & 5P | MCE

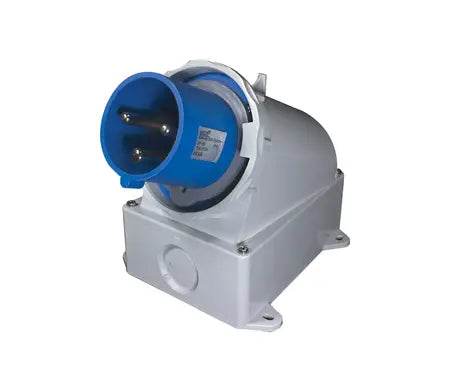

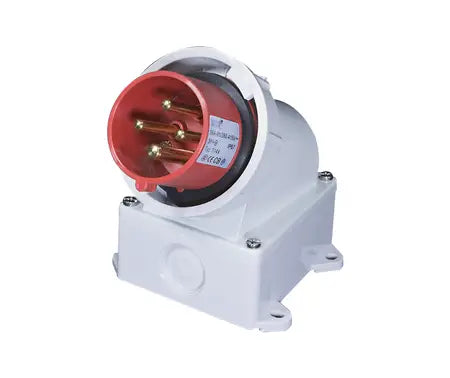

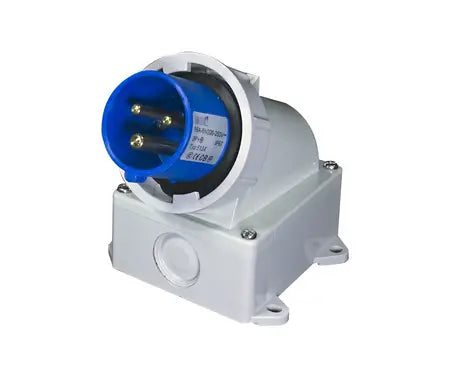

The MCE Surface Mount Appliance Inlet range is a set of IEC 60309 / CEE industrial inlets that mount on the outside of a machine, generator housing or enclosure to give it a standard plug-in power connection. They suit electricians, panel builders, equipment manufacturers and maintenance teams who need a robust, standard inlet in 16A, 32A or 63A with a choice of IP44 or IP67 protection.

• Application: Surface-mounted power inlet for generators, machinery and equipment
• Current ratings: 16A and 32A (IP44 and IP67), 63A (IP67 only)
• Configurations: 3P (2P+E) 230V, 4P (3P+E) 380V and 5P (3P+N+E) 380V
• Protection: IP44 splash-proof or IP67 waterproof, depending on variant
• Standard: IEC 60309 / CEE format, compatible with matching CEE plugs and couplers

Key Features

• Surface-mount body for fitting directly onto equipment housings, enclosure walls and frames
• IP44 versions for covered or splash-prone industrial areas, IP67 versions (code ending -X) for exposed and wet outdoor use
• Standard CEE pin and sleeve layout, so it accepts matching IEC 60309 plugs and couplers of the same rating and pin count
• Three current ratings and three pin configurations in one range, so you can match the inlet to the equipment supply

Typical Applications

• Generator and mobile power plant inlets
• Machinery and equipment power entry points
• Welding and workshop equipment
• Temporary site power and event power distribution
• Pump stations, plant rooms and outdoor installations

Technical Specifications

Variant Reference

What's Included

• 1 x Surface Mount Appliance Inlet in the selected rating, pin configuration and IP rating

Please note: Plugs, couplers, cables, glands and mounting enclosures are not included.

Installation & Compatibility Notes

• Confirm your supply voltage and phase configuration first: 3P for single-phase 230V, 4P for three-phase without neutral, 5P for three-phase with neutral.
• Match the inlet current rating and pin count to the plug or coupler you will connect to it.
• Choose IP44 for covered or splash-prone areas and IP67 (-X codes) for exposed outdoor or wet environments. 63A is IP67 only.
• Fit suitable cable glands and seal entries correctly to maintain the IP rating.
• Installation must be carried out by a suitably qualified electrician in accordance with SANS 10142.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application. If you are unsure which variant is correct for your installation, contact us before ordering.

Need help choosing? Send Zisabo your supply voltage, current rating, number of pins and the environment the inlet will be used in, and we will assist where possible.
