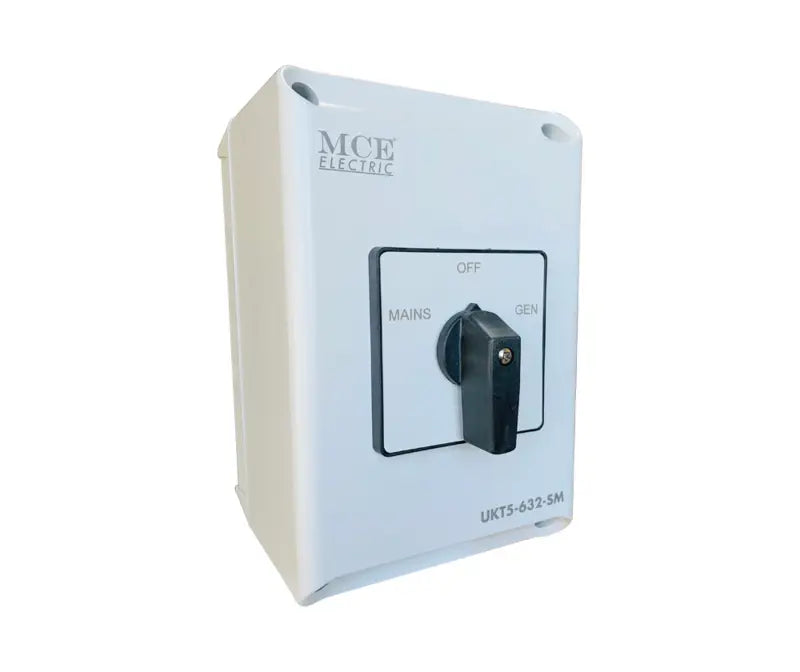

Surface Mount Change Over Switch IP65, 20A–100A, 2-4 Pole | MCE UKT PVC Enclosed

The MCE UKT Surface Mount Change Over Switch is a manual changeover switch supplied in a PVC IP65 enclosure. It is used to switch a load between mains and a generator, inverter or second supply, and suits electricians, installers and maintenance teams who need a ready-enclosed changeover for walls, plant rooms and outdoor positions.

• Application: Manual mains / generator changeover
• Current ratings: 20A to 100A
• Poles: 2, 3 and 4 pole versions
• Enclosure: Surface mount PVC, IP65
• Brand: MCE Electric

Key Features

• Supplied in a PVC surface mount enclosure, so no separate enclosure is needed
• IP65 rated enclosure for dust and water jets
• Seven current ratings and three pole configurations in one range
• Motor ratings from 7.5kW up to 45kW at 20A to 100A (AC3)

Typical Applications

• Generator to mains changeover
• Solar and inverter backup transfer
• Pumps and motor supply selection
• Outdoor and wall-mounted installations
• Domestic, commercial or light industrial use

Technical Specifications

What's Included

• 1 x Surface Mount Change Over Switch in PVC IP65 enclosure, in the selected rating and poles

Please note: Cables, glands and lugs are not included unless specifically listed above.

Installation & Compatibility Notes

• Choose a rating above the full load current of the circuit.
• Use 2P for single-phase, 3P for three-phase and 4P where the neutral must also be switched.
• Use suitable glands to maintain the IP65 rating.
• Installation must be carried out by a suitably qualified electrician in line with SANS 10142.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application.

Need help choosing? Send Zisabo your supply type, load current and pole requirement and we will assist where possible.
