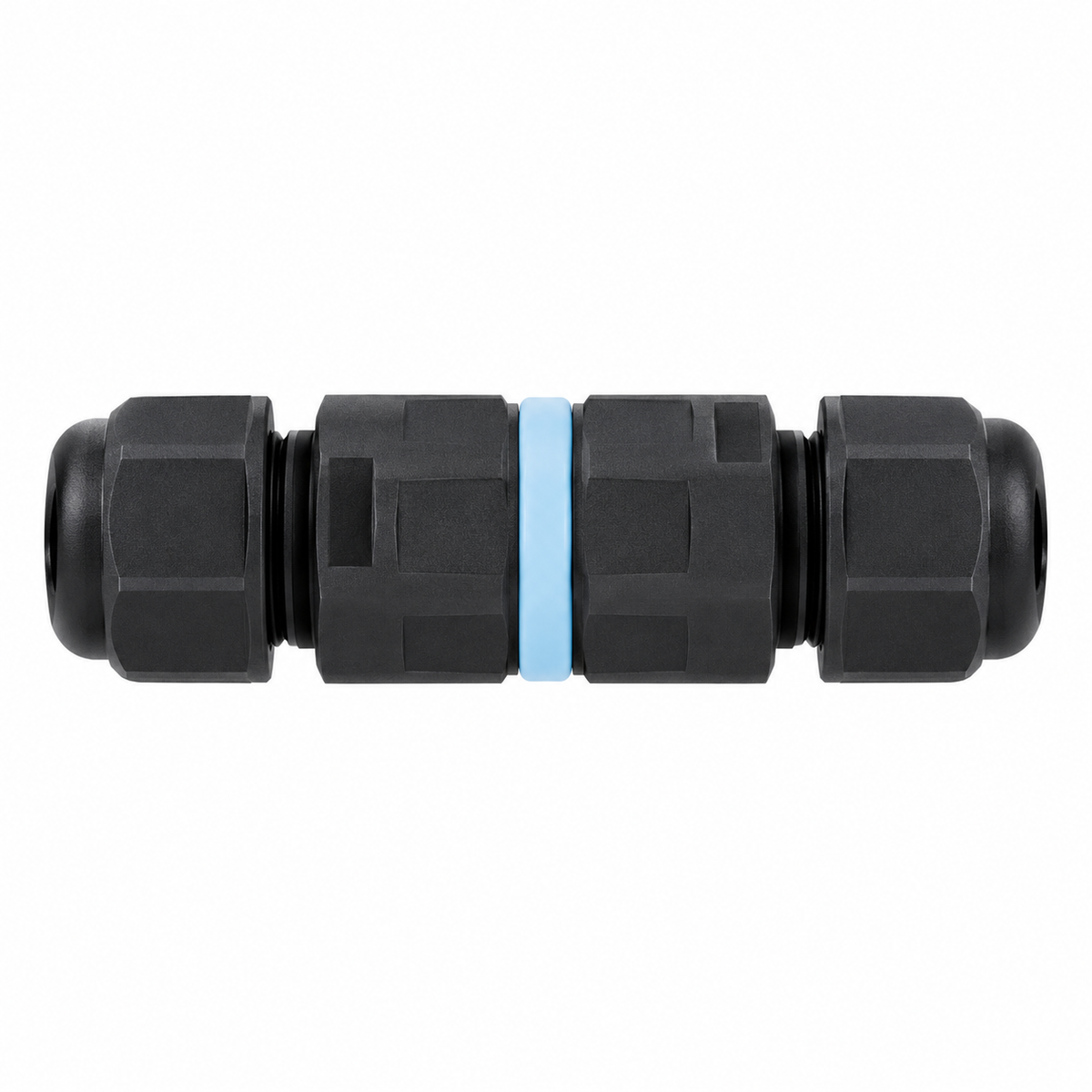

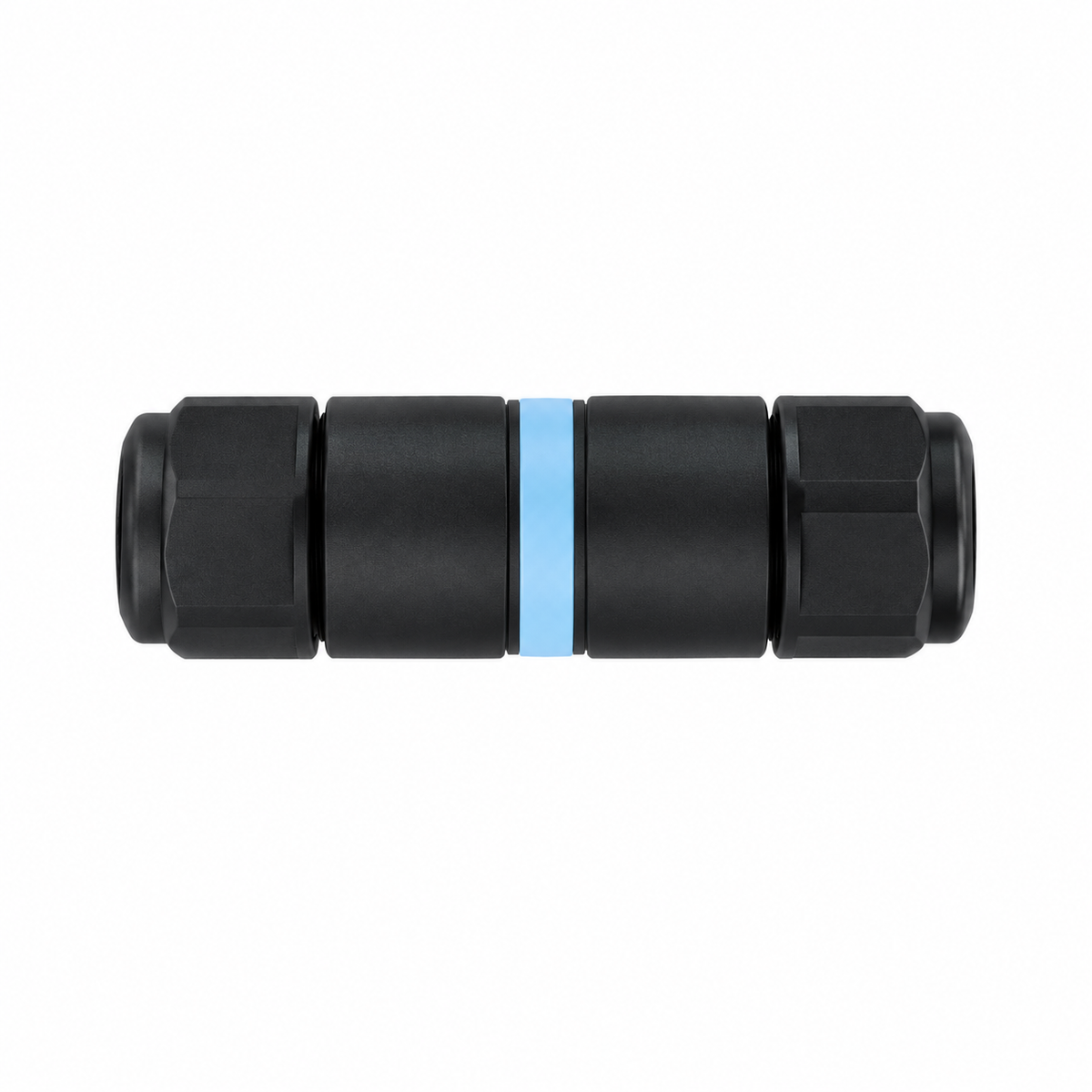

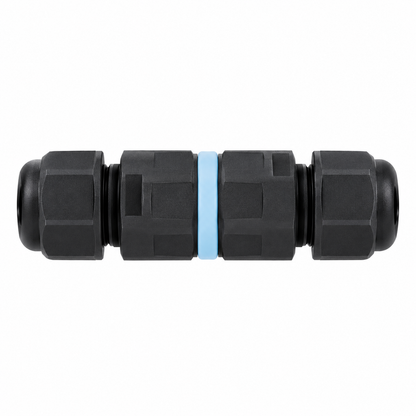

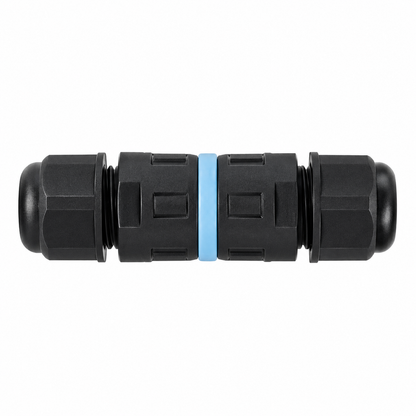

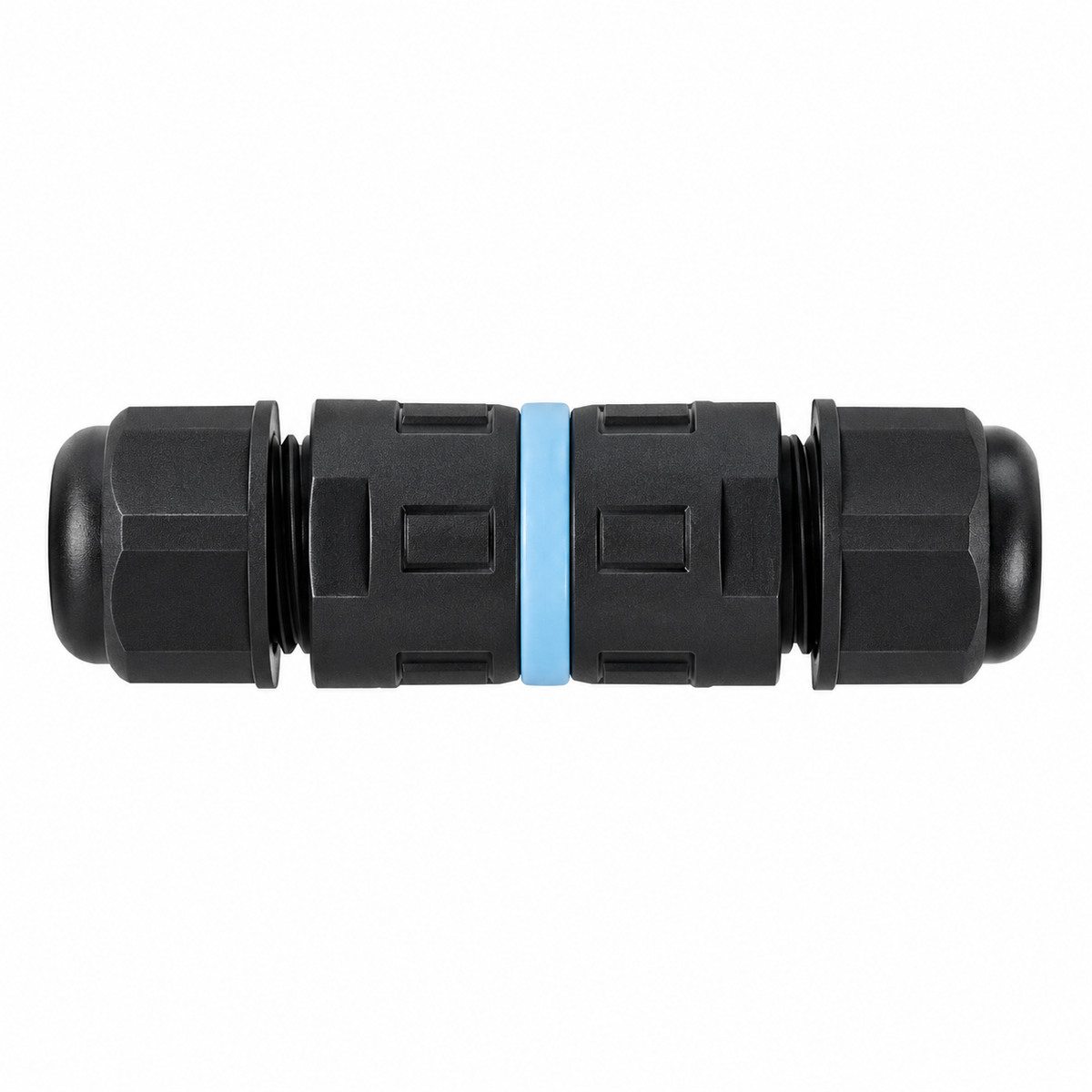

Waterproof Inline Quick Cable Connector IP68, 450V 24A | MCE WCC Series 3 to 5 Pin

The MCE WCC Series inline quick cable connector is an IP68 waterproof connector for joining two cable lengths without soldering or taping. It is suitable for electricians, installers and maintenance teams who need a sealed, fast cable joint for outdoor lighting, garden and pool equipment, pumps and other wet or exposed locations. Available in 3, 4 and 5 connection versions, so the buyer can match the number of cores in the cable.

• Protection: IP68 sealed connection for wet and outdoor locations
• Rating: 450V, 24A
• Connections: 3, 4 or 5 pin versions
• Wire size: 0.5mm² to 2.5mm²
• Installation: Quick, tool-light connection with no soldering
• Temperature range: -40°C to +105°C

Key Features

• Sealed IP68 body helps keep moisture and dust out of the cable joint
• Quick connection accepts conductors from 0.5mm² up to 2.5mm²
• Cable gland sizes of 20mm (3 pin) and 25mm (4 and 5 pin) to suit common cable sizes
• Wide operating temperature range of -40°C to +105°C
• Easy installation with no soldering or heat-shrink required

Typical Applications

• Outdoor and garden lighting cable joints
• Pool, pond and water feature equipment wiring
• Pump and borehole cable extensions
• Irrigation controllers and solenoid wiring
• Domestic, commercial or light industrial cable joining

Technical Specifications

What's Included

• 1 x MCE WCC inline quick cable connector in the selected model (3, 4 or 5 pin)

Please note: Cable, electrical protection, tools and any other accessories are not included unless specifically listed above.

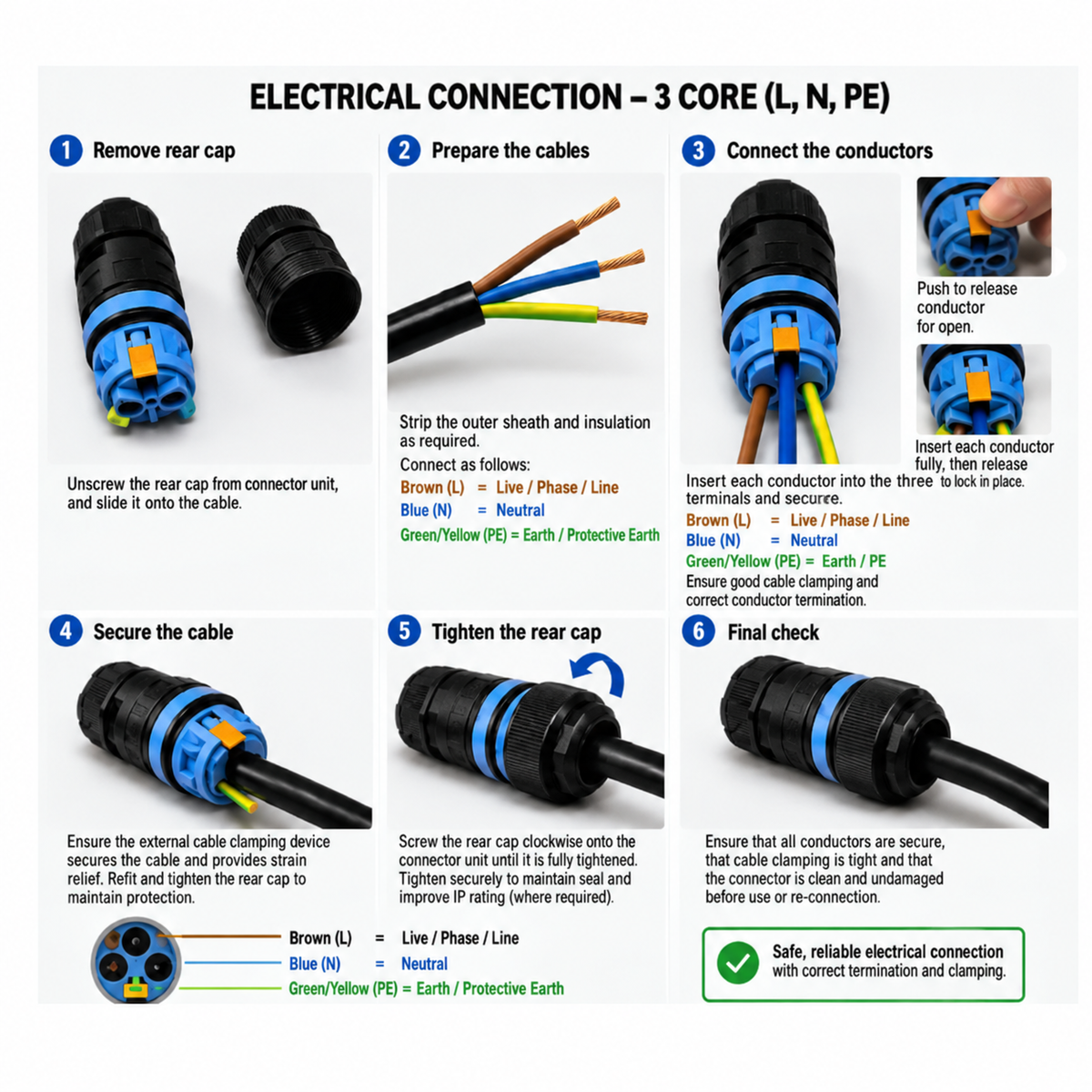

Installation Guide

Electrical connection – 3 core (L, N, PE) example:

1. Remove rear cap: Unscrew the rear cap from the connector unit and slide it onto the cable.
2. Prepare the cables: Strip the outer sheath and insulation as required. Brown (L) = Live / Phase / Line, Blue (N) = Neutral, Green/Yellow (PE) = Earth / Protective Earth.
3. Connect the conductors: Push the release tab to open the terminal, insert each conductor fully into its terminal, then release to lock it in place. Ensure good cable clamping and correct conductor termination.
4. Secure the cable: Ensure the external cable clamping device secures the cable and provides strain relief. Refit and tighten the rear cap to maintain protection.
5. Tighten the rear cap: Screw the rear cap clockwise onto the connector unit until it is fully tightened. Tighten securely to maintain the seal and improve the IP rating (where required).
6. Final check: Ensure all conductors are secure, the cable clamping is tight and the connector is clean and undamaged before use or re-connection.

Please note: The guide shows a 3 core example. For 4 and 5 pin versions, terminate each conductor in the same way and make sure every conductor is in the correct terminal. Installation should be carried out by a suitably qualified person with the supply isolated.

Installation & Compatibility Notes

• Select the version with the same number of connections as your cable cores (for example, 3 pin for Live, Neutral and Earth).
• Check that your cable outer diameter falls within the gland range for the model selected, and that conductor size is between 0.5mm² and 2.5mm².
• Confirm the circuit voltage and current are within 450V and 24A.
• Installation should be carried out by a suitably qualified person, with the supply isolated, where electrical work is required.
• Make sure the cable gland and rear cap are fully tightened so the IP68 seal is effective.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you are unsure which connector suits your cable, contact Zisabo with your cable type, number of cores, cable diameter and application, and we will assist where possible.
