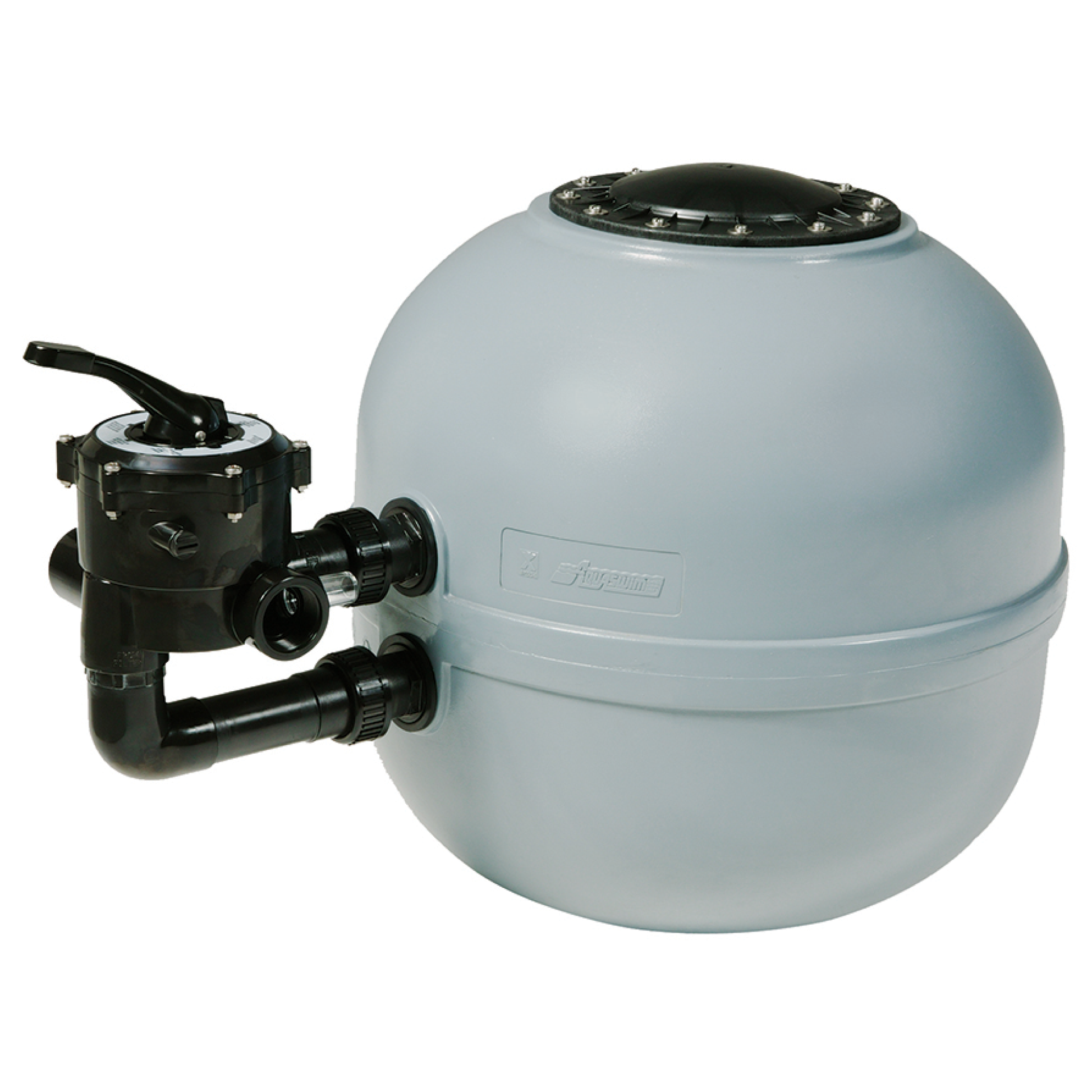

BADU | Aquaswim Filter, Side Mounted High Rate Sand Filter

• Application: Sand filtration for residential swimming pools
• Key specification: 80-160kg sand capacity depending on size, 9.5-14.5 m³/h flow rate at 80kPa
• Recommended pool size: 15 000 - 85 000 litres depending on size and pump
• Construction: Seamless one-piece moulded polyethylene tank, non-corrosive high-flow ABS internal components
• Sizes available: Aquaswim 2, Aquaswim 3, Aquaswim 4 (2/3/4 bags of sand)

Key Features

• Non-corrosive, high-flow ABS internal components for long service life
• Automatic internal air relief system for safer, easier operation
• Seamless one-piece moulded polyethylene tank - strong and reliable
• Smooth-operating side-mounted multiport valve for easy selection of standard operating features
• 24-month ex-factory warranty on the tank from date of purchase
• 60-month ex-factory warranty on the multiport valve and internal parts from date of purchase

Typical Applications

• Residential swimming pool filtration
• New pool installations or filter replacements
• Ideal for use with a matched BADU pump (0.25kW-0.75kW depending on size, see table below)

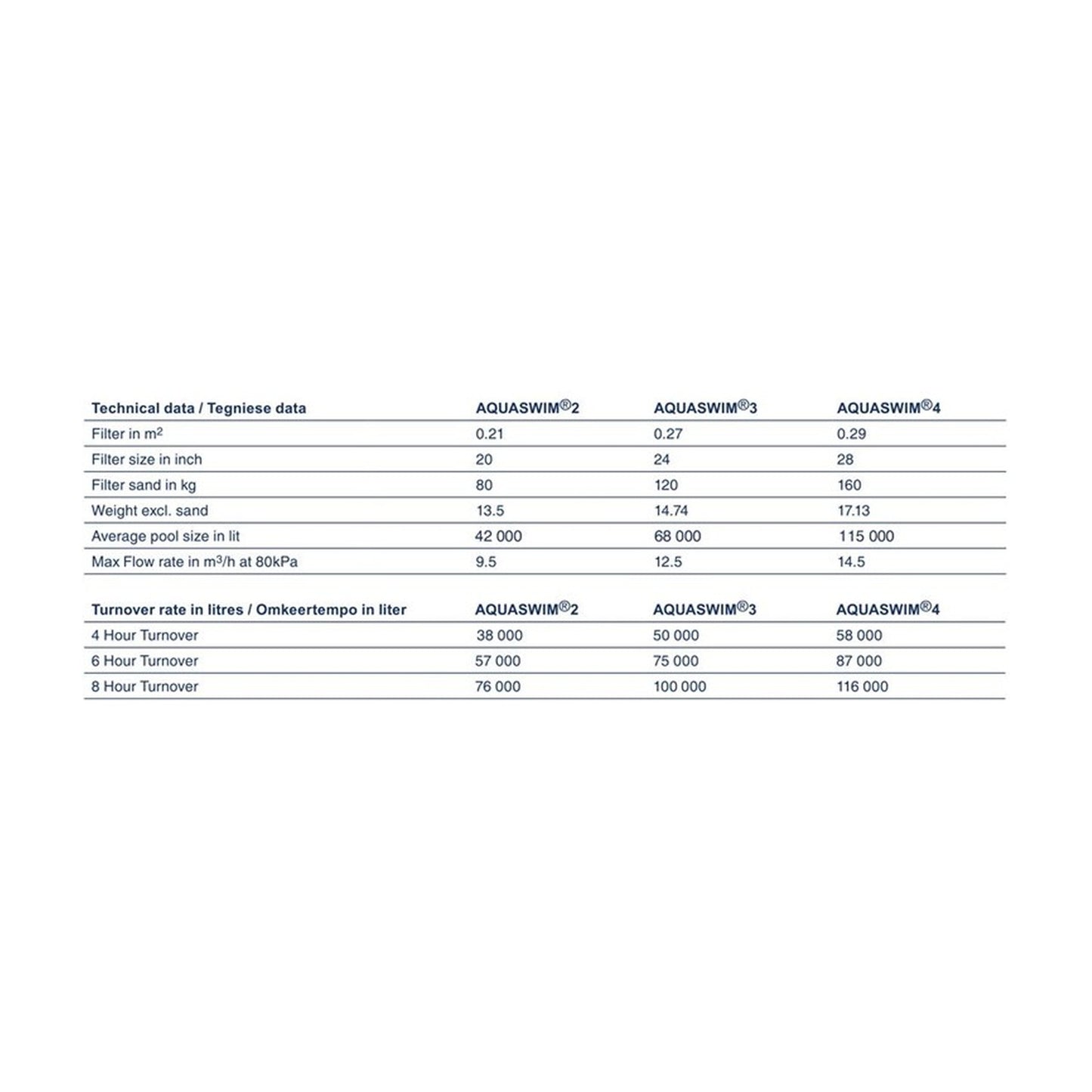

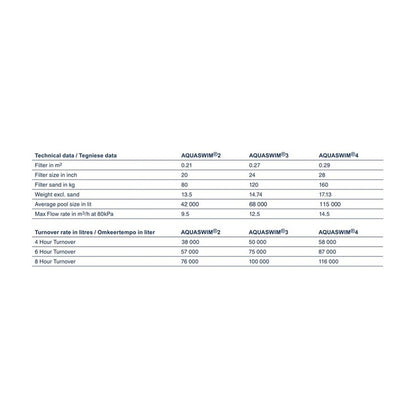

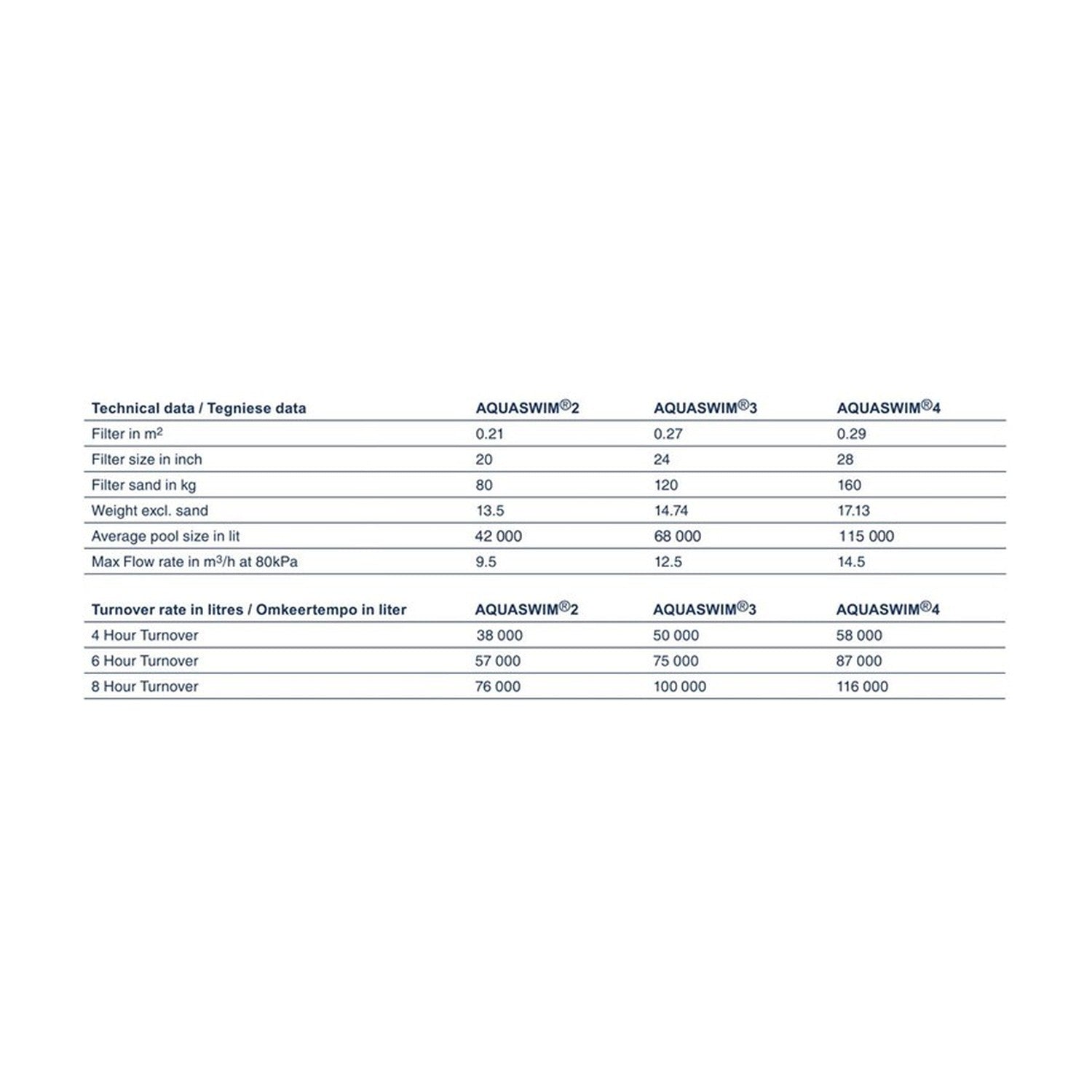

Technical Specifications

What's Included

• 1 x Aquaswim sand filter tank (size as selected)
• 1 x Side-mounted multiport valve

Please note: Filter sand, pump, plumbing fittings and installation accessories are not included unless specifically listed above.

Installation & Compatibility Notes

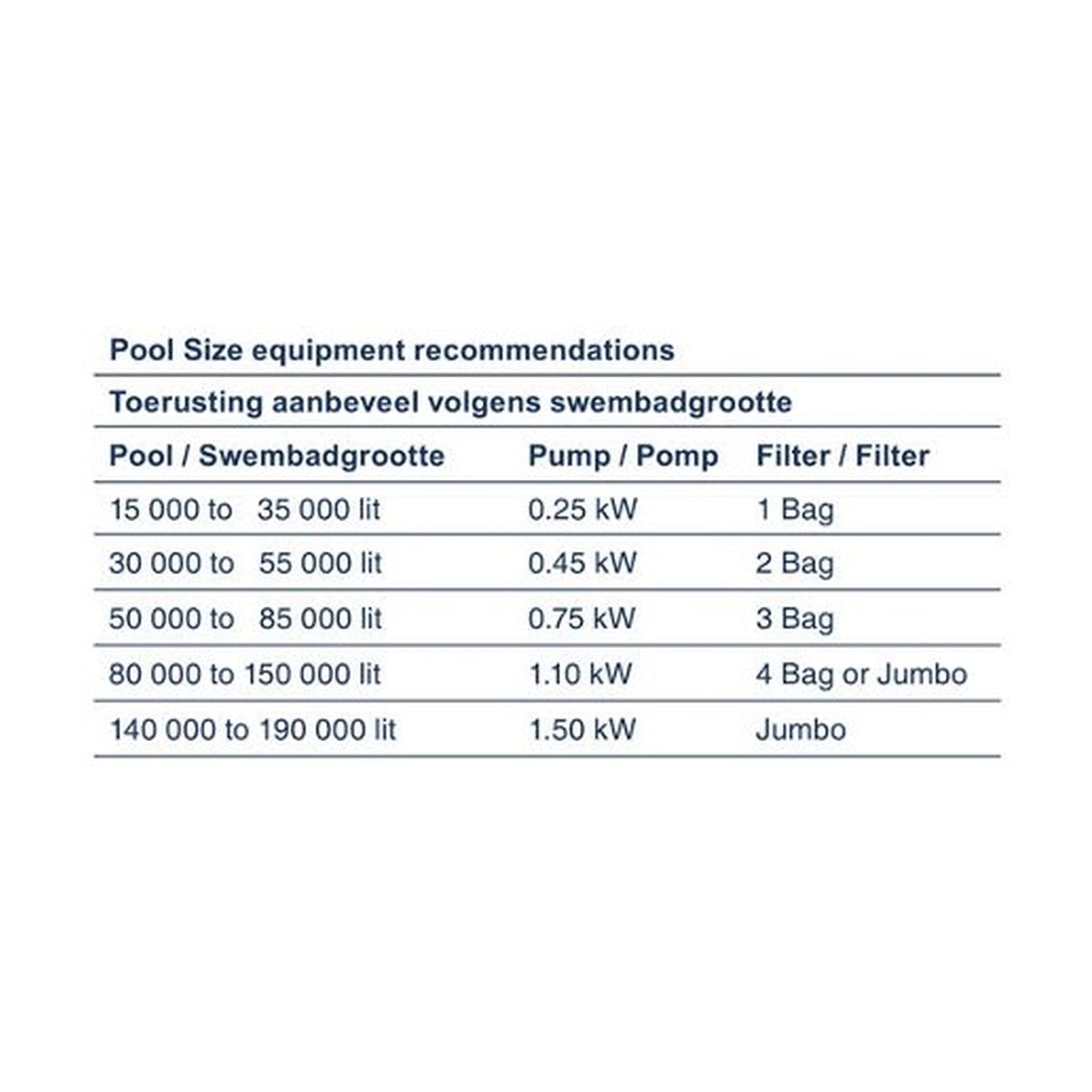

Select the correct size for your pool volume and desired turnover rate using the table above. Confirm your pump is correctly matched to the filter size - an undersized or oversized pump/filter pairing can affect filtration performance. Use a qualified pool installer for all plumbing and pump connections, and contact Zisabo if you are unsure which filter size is right for your pool. For pools over 85 000 litres, see our Jumbo Filter range.

Warranty & Support

This Aquaswim filter is supplied with Speck's ex-factory warranty: 24 months on the tank and 60 months on the multiport valve and internal parts, both from date of purchase and subject to normal operating conditions. Zisabo supplies quality pool filtration and pump products with practical support to help customers choose the correct item for their pool. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.
