BADU | Koi Pond or Water Feature Filter, Side Mounted High Rate, Koi Range

BADU | Koi Pond or Water Feature Filter, Side Mounted High Rate, Koi Range

R 4,147.10
R 4,147.10
Sale Sold out
Learn how Mobicred works
Taxes included. Shipping calculated at checkout.
Color
Size

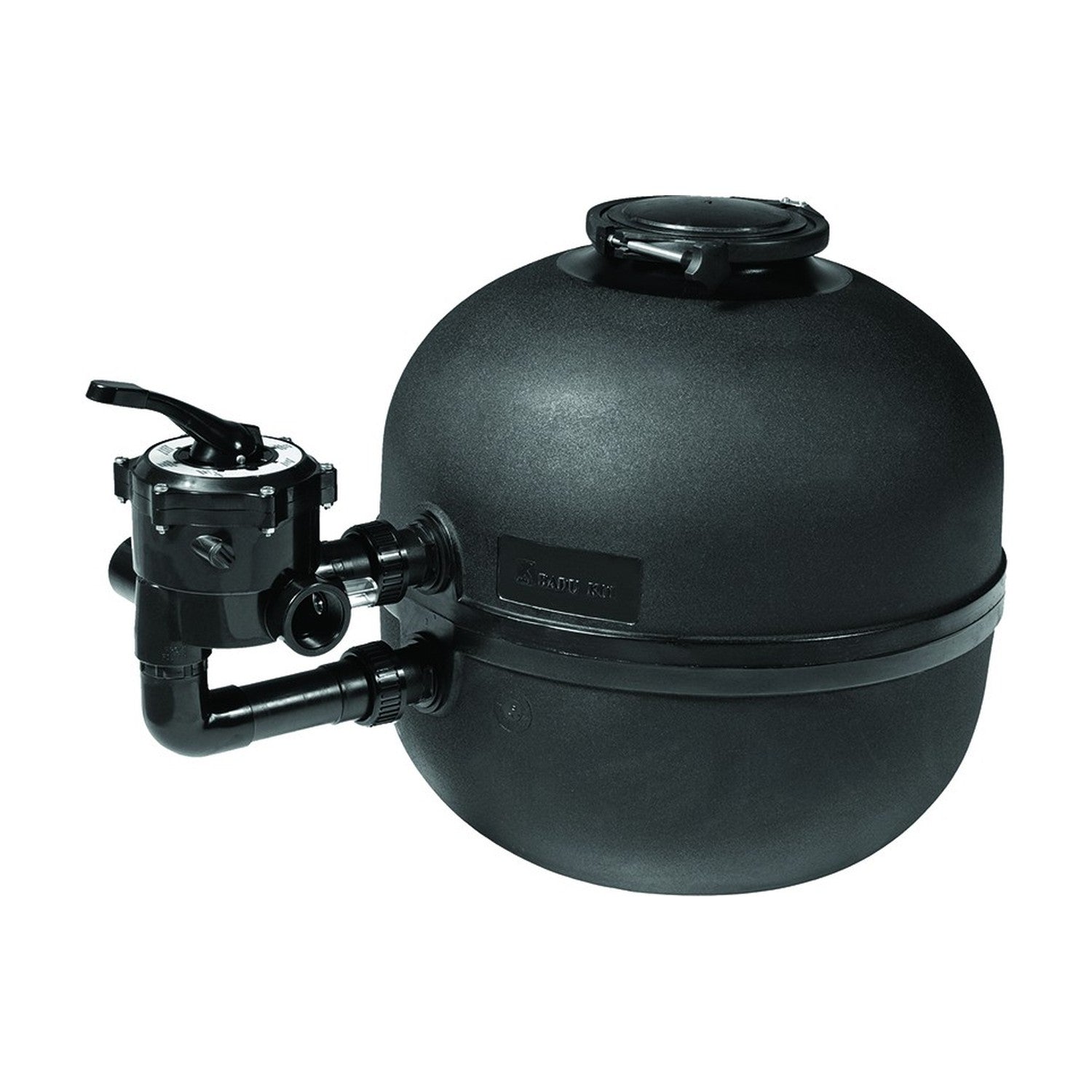

The BADU Koi sand filter range is manufactured by Speck Pumps with all the special features and quality that a koi enthusiast requires, giving your koi pond or water feature the filtration it deserves. It has a unique quick-release lid for easy manual backwashing and maintenance, together with a smooth-operating side-mounted multiport valve, and is available in 1, 2, 3 and 4 Bag sizes.
  • Application: Sand filtration for koi ponds and water features
  • Key specification: 40-160kg medium capacity depending on size, 6-14.5 m³/h flow rate at 80kPa
  • Recommended pond size: 15 000 - 150 000 litres depending on size and pump
  • Construction: Roto-moulded one-piece polyethylene tank for extra strength and leakage prevention
  • Fish-safe materials: Non-corrosive, UV-resistant and non-toxic for long-lasting, healthy water
  • Sizes available: BADU Koi 1, 2, 3 and 4 (1/2/3/4 bags of filter medium)

Key Features

  • Unique quick-release lid for easy manual backwashing and maintenance
  • Roto-moulded, one-piece polyethylene tank for extra strength and leakage prevention
  • Automatic internal air relief system - no pressure build-up inside the tank
  • Non-corrosive, UV-resistant and non-toxic materials for long-lasting, fish-friendly filtration
  • 12 angled free-flow internal collector arms for improved water filtration, mimicking nature for healthier fish
  • Smooth-operating side-mounted multiport valve for easy selection of standard operating features
  • 18-month ex-factory warranty on the tank, 60-month ex-factory warranty on the multiport valve, lid clamp ring and internal parts

Typical Applications

  • Koi pond filtration
  • Ornamental water feature filtration
  • New pond installations or filter replacements

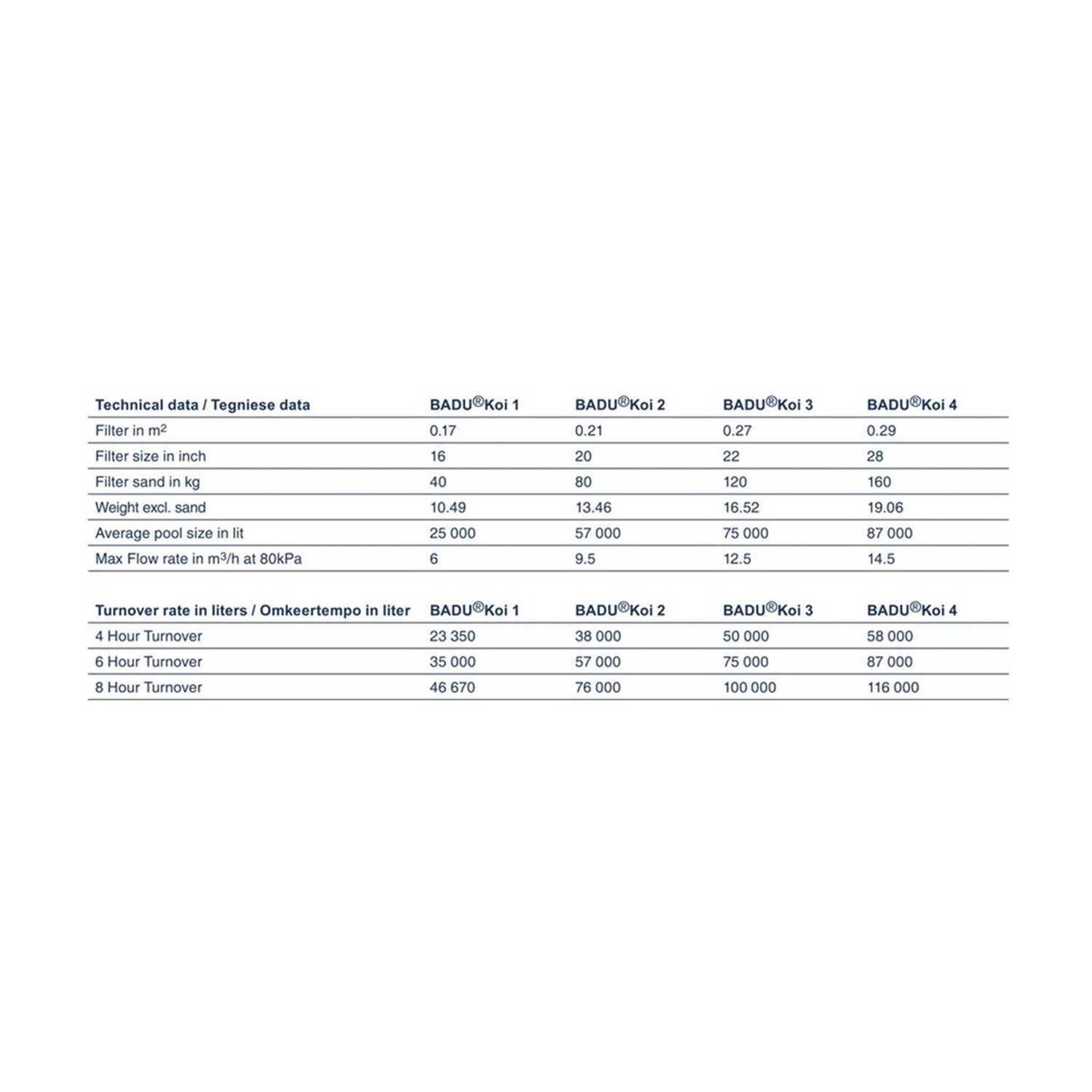

Technical Specifications

Brand Speck Pumps
Model BADU Koi 1 BADU Koi 2 BADU Koi 3 BADU Koi 4
Filter area 0.17 m² 0.21 m² 0.27 m² 0.29 m²
Filter medium required 40kg 80kg 120kg 160kg
Weight (excl. medium) 10.49kg 13.46kg 16.52kg 19.06kg
Flow rate at 80kPa 6 m³/h 9.5 m³/h 12.5 m³/h 14.5 m³/h
Average pond size 25 000L 57 000L 75 000L 87 000L
4 hour turnover 23 350L 38 000L 50 000L 58 000L
6 hour turnover 35 000L 57 000L 75 000L 87 000L
8 hour turnover 46 670L 76 000L 100 000L 116 000L
Dimensions (H x L x W) 540 x 780 x 460mm 610 x 860 x 520mm 630 x 920 x 580mm 750 x 920 x 610mm
Recommended pump 0.2-0.25kW (15 000-30 000L) 0.45kW (30 000-55 000L) 0.75kW (50 000-85 000L) 1.10kW (80 000-150 000L)
Tank warranty 18 months ex-factory from date of purchase
Multiport valve, lid clamp ring & internal parts warranty 60 months ex-factory from date of purchase

What's Included

  • 1 x BADU Koi sand filter tank (size as selected)
  • 1 x Side-mounted multiport valve with standard valve

Please note: Filter medium, pump, plumbing fittings and installation accessories are not included unless specifically listed above.

Installation & Compatibility Notes

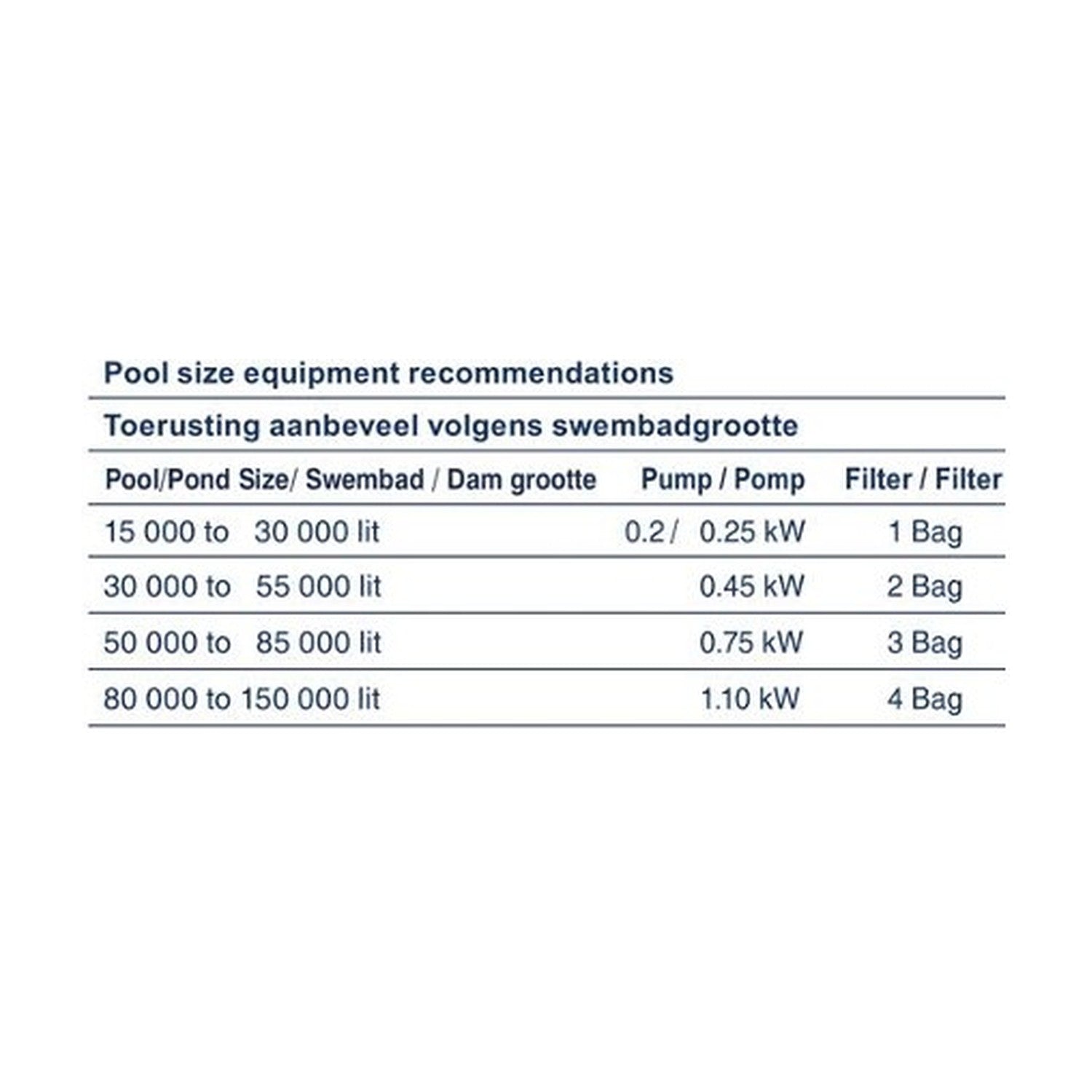

Select the correct size for your pond volume and desired turnover rate using the table above, and pair it with a correctly sized pump (0.2kW-1.10kW depending on size). Use a qualified installer for all plumbing and pump connections, and contact Zisabo if you are unsure which filter size is right for your koi pond or water feature.

Warranty & Support

This BADU Koi filter is supplied with Speck's ex-factory warranty: 18 months on the tank, and 60 months on the multiport valve, lid clamp ring and internal parts, both from date of purchase and subject to normal operating conditions. Zisabo supplies quality pool and pond filtration products with practical support to help customers choose the correct item for their water feature. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Guarantees

18-month ex-factory warranty on tank from date of purchase 60-month ex-factory warranty on multiport valve, lid clamp ring and internal parts from date of purchase + Store Refund Policy

Materials

Polyethylene

Shipping

Instore/Online | 3-5 Days

Additional Information

• Sand not included
• Quick-Release Lid: Facilitates easy manual backwashing and maintenance.
• Durable Construction: Made from a one-piece polyethylene tank designed to prevent leaks and withstand harsh conditions.
• Automatic Air Relief System: Maintains optimal pressure levels inside the tank.
•Non-Corrosive Materials: UV-resistant, non-toxic, ensuring durability and safety.
• Enhanced Filtration: Equipped with twelve angled free-flow internal collector arms for superior water filtration.

Technical information
