DAB e.SYBOX Max Electronic Pressurisation System
DAB e.SYBOX Max Electronic Pressurisation System
Available on back-order This item is available on back-order. You can still place your order — see the Shipping tab below for estimated lead times.
Commercial Constant-Pressure System for Buildings, Apartments and High-Demand Water Supply

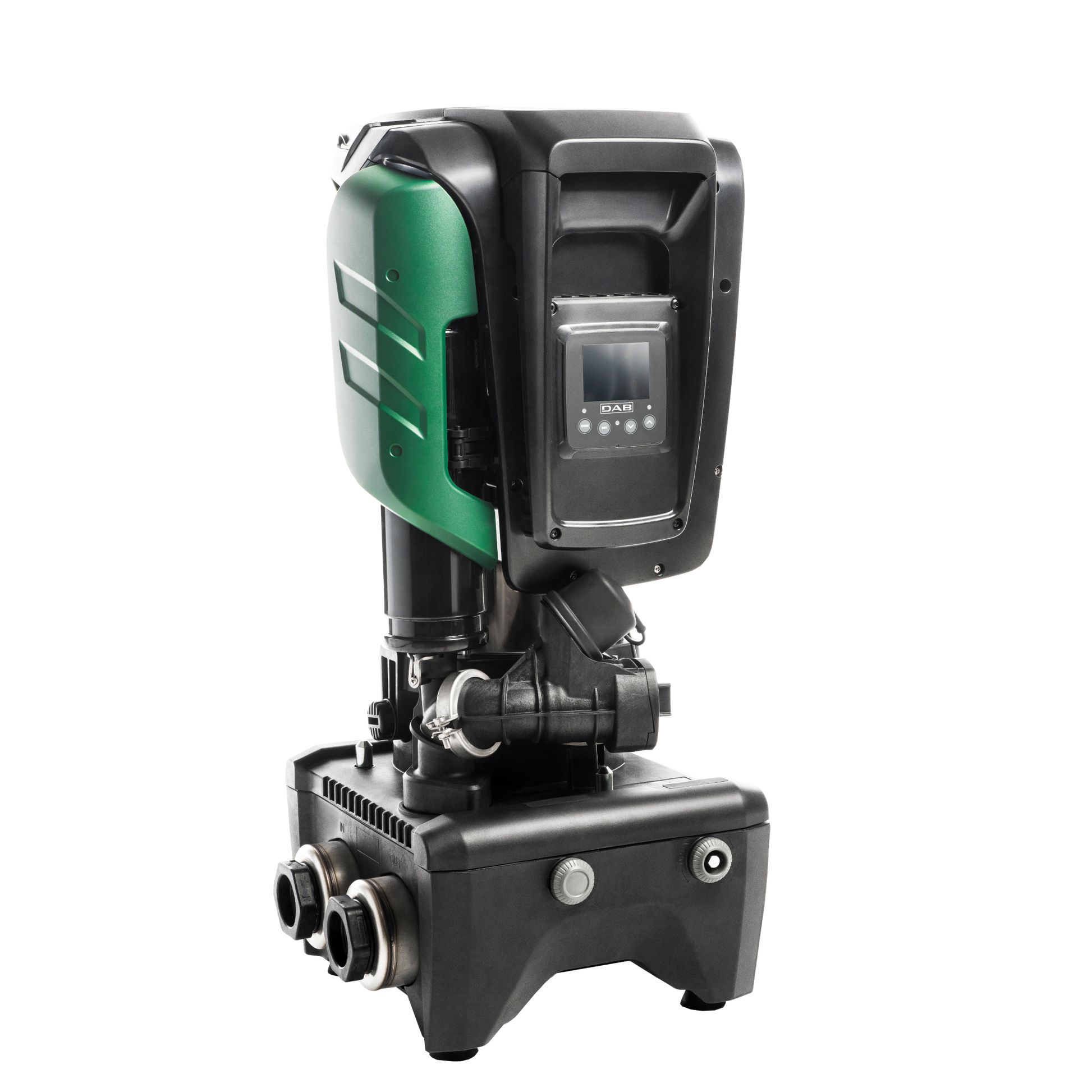

The DAB e.SYBOX Max Electronic Pressurisation System is a premium modular booster system for commercial, agricultural and building-service water pressure applications. Designed for medium to large apartments, high-rise buildings, commercial properties and high-demand clean-water systems, the e.SYBOX Max delivers intelligent constant-pressure performance with inverter control, Wi-Fi connectivity and modular pump configurations.
Unlike a basic booster pump, the e.SYBOX Max is designed as a technical pressurisation platform. Each unit combines an electronic vertical multi-impeller pump, variable frequency drive, pressure sensors, display, Wi-Fi module, non-return valve and integrated expansion tank. Systems can be configured as single, double, triple or quadruple pump sets depending on the building demand and selected e.SYDOCK Max base.
Quote-Led Technical Product: Confirm Sizing Before Ordering
This is a high-value commercial pressurisation system. Correct selection depends on the number of users, floors, apartments, bathrooms, peak demand, pipe layout, water source, required pressure, available power supply and whether single, double, triple or quadruple pump operation is required.
Please contact Zisabo before ordering so we can confirm the correct e.SYBOX Max model, dock configuration and accessories for your project.
Best For
- Commercial building water pressure systems
- Medium and large apartment buildings
- High-rise residential buildings
- Guesthouses, lodges and hospitality properties
- Agricultural clean-water pressurisation
- Large domestic properties with high simultaneous demand
- Building-service applications requiring constant pressure
- Projects requiring BMS integration or remote monitoring
Available e.SYBOX Max Pump Models
| Model | DAB Code | Power | Best For |
|---|---|---|---|
| e.SYBOX Max 45/120 M | 60217358 |
2.2kW |
Commercial and building-service systems requiring single-phase supply |
| e.SYBOX Max 45/120 T | 60217356 | 2.2kW 380–480V three phase |
Three-phase commercial pressure systems |
| e.SYBOX Max 60/120 M | 60199039 | 2.2kW 208–240V single phase |
Higher-pressure single-phase building applications |
| e.SYBOX Max 60/120 T | 60199035 | 2.2kW 380–480V three phase |
Commercial and agricultural three-phase pressure systems |
| e.SYBOX Max 85/120 T | 60195100 | 3kW 380–480V three phase |
High-rise and higher-head commercial applications |
Key Specifications
| Brand | DAB |
| Range | e.SYBOX Max |
| System Type | Electronic commercial pressurisation system |
| Configuration Options | Single, double, triple or quadruple pump systems, depending on dock configuration |
| Operating Range | Up to 17.4m³/h per single pump unit, depending on model |
| Max Head | Up to 96m, depending on selected model |
| Constant Pressure Range | 1–12 bar, 3 bar default setting |
| Nominal Pressure | PN12 / 1200kPa |
| Connections | 1¼” / 2”, depending on configuration |
| Power Options | Single-phase 208–240V and three-phase 380–480V options |
| Installation | Fixed vertical installation |
| Protection Rating | IPX5 motor protection |
| Connectivity | Built-in Wi-Fi and DConnect compatibility |
| Water Type | Clean water only, free from solids and abrasive particles |
Premium Commercial Benefits
- Constant pressure: VFD/inverter control adjusts pump speed according to building demand
- Modular system design: single, double, triple or quadruple configurations are possible
- High-rise capability: suitable for medium/large apartments and high buildings when correctly sized
- Remote monitoring: large display, Wi-Fi module and DConnect service support monitoring and configuration
- Efficient motor technology: water-cooled permanent magnet motor supports high efficiency and energy saving
- On-site assembly concept: modular design allows easier assembly directly at the installation site
- Integrated components: pump, sensors, display, non-return valve and expansion tank built into each unit
- BMS integration support: compatible with e.sy I/O accessory for Building Management System interface
Recommended Applications
- Medium and large apartment buildings
- High-rise residential buildings
- Commercial building water pressure systems
- Agricultural clean-water pressurisation
- Guesthouses, lodges and hospitality properties
- Large estates and multi-user properties
- Building-service water supply systems
- Systems requiring remote monitoring or BMS integration
Not Suitable For
- Dirty water, grey water, sewage or sludge
- Water containing sand, grit or abrasive particles
- Deep borehole pumping
- DIY domestic installations without technical sizing
- Hot water circulation unless confirmed by a qualified technical selection
- Industrial processes requiring specialist pump engineering
System Configuration Guide
| Configuration | Typical Use Case | Buyer Note |
|---|---|---|
| Single pump | Smaller commercial or high-demand residential pressure systems | Requires matching e.SYDOCK Max base |
| Two-pump system | Medium buildings, larger apartments and demand sharing | Improves capacity and system flexibility |
| Three-pump system | Larger commercial or residential building systems | Requires correct dock and electrical configuration |
| Four-pump system | High-demand systems requiring increased capacity | Requires joint kit and technical confirmation |
Sizing Information We Need
To recommend the correct e.SYBOX Max setup, send us:
- Building type: apartments, commercial, agricultural, hospitality or high-rise
- Number of floors
- Number of apartments, rooms, bathrooms or users
- Peak simultaneous water demand
- Required pressure at highest/furthest outlet
- Water source: tank, municipal supply, borehole storage or other clean-water source
- Available power supply: single-phase or three-phase
- Pipe size, distance and height difference
- Whether BMS integration or remote monitoring is required
- Project location and installation timeline
WhatsApp Zisabo for project sizing: 083 349 8864
Required / Common Accessories
- e.SYDOCK Max: required hydraulic base for single-pump configuration
- 2 e.SYDOCK Max: base configuration for two-pump systems
- 3 e.SYDOCK Max: base configuration for three-pump systems
- Joint Kit: used to connect two double docks for four-unit systems
- Pillar Kit: useful for mounting the control panel on 2 or 3 e.SYDOCK Max units
- Control Panel: required for selected multi-pump power configurations
- e.sy I/O: electronic expansion module for external devices and BMS interface
Important Installation Guidance
e.SYBOX Max systems must be installed and commissioned by a competent installer. Correct performance depends on hydraulic sizing, power supply, system pressure settings, inlet pressure, pipe sizing, dock selection and correct commissioning.
For multi-pump systems, confirm the required dock configuration, control panel and accessories before ordering.
What’s Included
- DAB e.SYBOX Max pump unit, depending on selected model
- Electronic vertical multi-impeller pump
- Variable frequency drive / inverter control
- Integrated display
- Built-in Wi-Fi module
- Pressure sensors
- Non-return valve on delivery
- Integrated expansion tank
Note: e.SYDOCK Max bases, control panels and system accessories may be required depending on configuration and may be sold separately. Confirm the full project requirement with Zisabo before ordering.
Frequently Asked Questions
Is the e.SYBOX Max for homes or commercial buildings?
It is mainly a commercial/building-service pressurisation system, but it can also be suitable for large residential or agricultural clean-water pressure applications where the demand justifies a technical system.
Can it be used for high-rise buildings?
Yes, it is designed for medium/large apartments and high buildings when correctly sized. The selected model and number of pump units must match the building height and demand.
Does it provide constant pressure?
Yes. The integrated variable frequency drive adjusts motor speed according to demand to help maintain constant pressure.
Can it connect to a Building Management System?
Yes. The e.sy I/O expansion module can be used to interface the e.SYBOX Max system with external input/output devices and BMS requirements.
Does it come with the dock/base?
The required e.SYDOCK Max base depends on the system configuration and is often selected separately. Confirm the required dock setup before ordering.
Can it handle dirty water?
No. The e.SYBOX Max is for clean water only and should not be used with sand, sludge, sewage, grey water or abrasive liquids.
Is this a DIY product?
No. This is a commercial technical pressurisation system. Professional installation, commissioning and correct sizing are strongly recommended.
Request a Technical Quote Before You Buy
The DAB e.SYBOX Max is a high-value B2B pressurisation system. Send Zisabo your building layout, number of floors, number of users, required pressure and available power supply so we can help confirm the correct model, dock configuration and accessories before purchase.
Guarantees
Guarantees
Dab-backed 24 month warranty
Materials
Materials
Shipping
Shipping
2 - 3 Business Days
Additional Information
Additional Information
• Operating range: Capacity up to 17,4 m3/h (single pump unit); Head up to 96 m.
• Type of pumped liquid Clean, free from solid or abrasive substances, not viscous, not aggressive, not crystallized and chemically neutral.
• Liquid temperature +50°C.
• Maximum room temperature +55°C.
• Maximum inlet pressure 5 bar.
• Nominal pressure (PN) 12 bar / 1200 kPa.
• Maximum differential pressure: 9,4 bar (85/120); 6,7 bar (60/120); 5,7 bar
(45/120)
• Constant pressure range: 1-12 bar (3 bar by default).
• Maximum suction height 4 m (with bottom valve)
• Motor protection class IPX5.
• Motor insulation class F.
• Impeller material technopolymer with steel wear rings
• Single phase power input 208-240 V 50/60 Hz.
• Three phase power input 380-480 V 50/60 Hz.
• Type of installation Fixed in vertical position.
• Certification WRAS, NSF61, ACS
