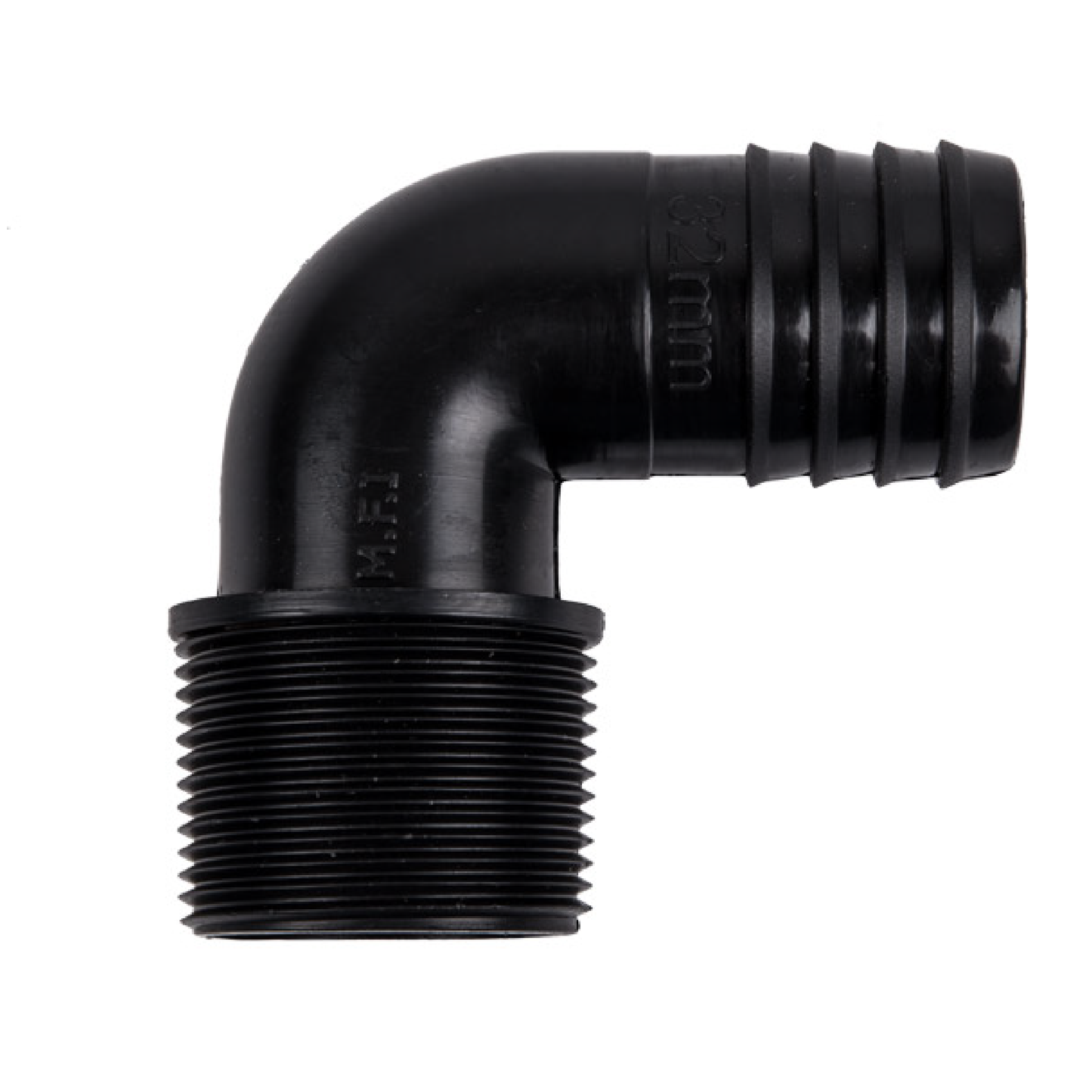

Nylon Insert Male Elbow – Barbed Poly Pipe x BSP Male 90° Elbow, 15mm to 50mm

The Nylon Insert Male Elbow combines a 90° direction change with a BSP male threaded outlet. One end is barbed and inserts into poly pipe; the other is a BSP male thread that screws into any BSP female-threaded fitting, valve, or socket. Use it to turn a poly pipe run and connect directly to a BSP female socket or fitting at the same time – saving one fitting versus using a separate elbow and male adaptor.

• Application: 90° turn in poly pipe with a BSP male thread outlet
• Connection type: Barbed insert x BSP male thread
• Compatible pipe: Class 3 and Class 6 LDPE poly pipe
• Material: Polypropylene (nylon)
• Also available: Insert Elbow (barbed x barbed), Female Elbow (barbed x BSP female)

Key Features

• 90° barbed insert x BSP male – turns a poly pipe run and provides a male thread in one fitting
• Eliminates the need for a separate elbow and male adaptor at turn points
• Polypropylene – UV-stable for outdoor irrigation use
• Suitable for Class 3 and Class 6 LDPE poly pipe

Typical Applications

• Turning a poly pipe lateral at 90° and connecting to a BSP female socket or valve
• Connecting poly pipe to a female-threaded filter, valve, or manifold at an angle
• Farm and garden irrigation lateral routing

Technical Specifications

What's Included

• 1 x Nylon Insert Male Elbow (selected size)

Please note: Poly pipe and clamps not included. Apply PTFE tape to the BSP male thread before assembly.

Installation & Compatibility Notes

Match the barbed end to your poly pipe bore and the BSP male thread to your female socket size. Apply PTFE tape to the male thread. Push the barbed end into the pipe and clamp for sustained pressure applications.

Warranty & Support

Contact Zisabo if you need help choosing between insert elbow types for your layout.
