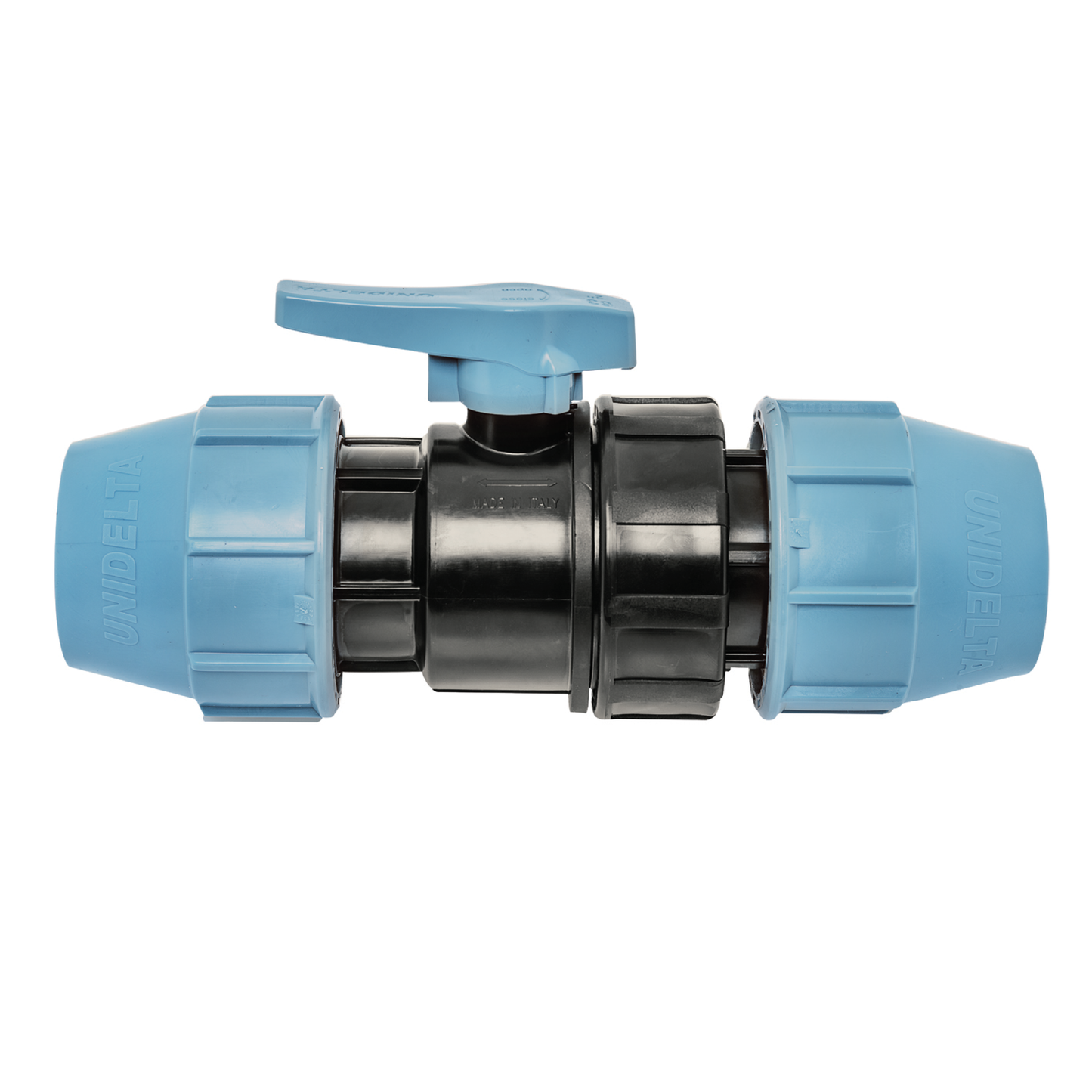

Unidelta Compression Ball Valve | PE Pipe Isolation Valve

The Unidelta Compression Ball Valve | PE Pipe Isolation Valve provides compact shut-off control for polyethylene pipe systems. It is ideal where a durable compression-end valve is needed for water supply, irrigation or general plumbing isolation.

Best for:
Inline isolation and flow shut-off on PE pipe systems used in water distribution, irrigation and general plumbing.
Available sizes:
20mm x 20mm, 25mm x 25mm, 32mm x 32mm, 40mm x 40mm, 50mm x 50mm, 63mm x 63mm
Key advantages
  • Compression-end ball valve for PE pipe systems
  • Quarter-turn flow control and isolation
  • PP body with nitrile rubber seal
  • Suitable for water and irrigation applications

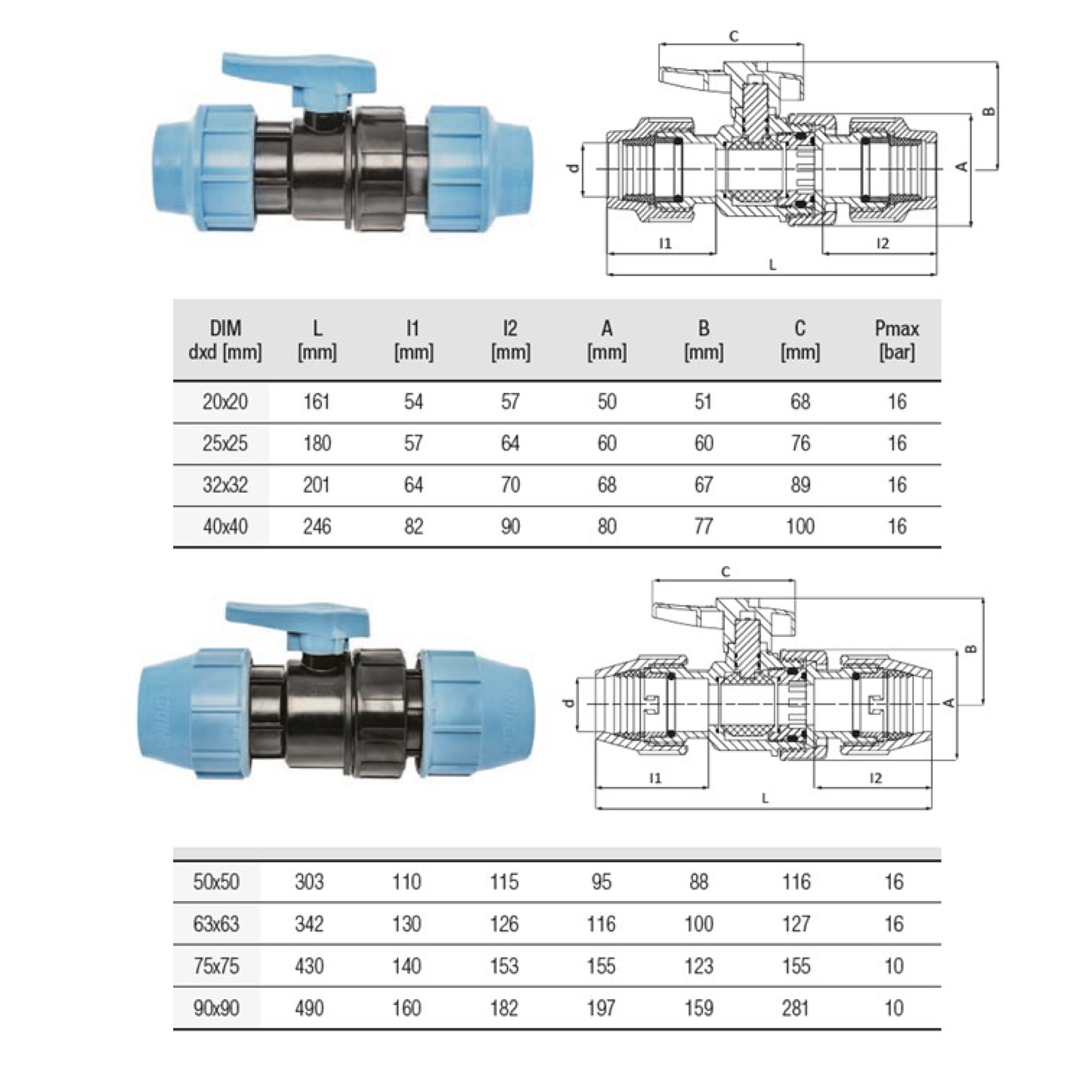

Technical details
Brand Unidelta
Connection system Mechanical compression connection for PE pipe
Pressure rating PN16 on smaller sizes; larger sizes may be PN10 depending on selected variant
Temperature guide Up to 45°C within polyethylene pipe application limits
Material guide Polypropylene (PP-B) with UV protection; NBR/EPDM sealing components; POM/acetal gripping components where applicable.
Standards guide Manufactured to recognised ISO, UNI and DIN reference standards with potable-water suitability guidance.
Installation guidance
  1. Cut the PE pipe square and remove burrs before assembly.
  2. Insert the pipe fully into the fitting body until it reaches the internal stop.
  3. Hand-tighten the nut, then tighten securely using the correct fitting tool where required.
  4. Always pressure-test the installation before covering or commissioning the line.

Guarantees

Manufacturer warranty applies against proven manufacturing defects

Materials

UV-stabilised polypropylene (PP-B)

Shipping

3 - 5 Business Days

Additional Information

Unidelta compression range for PE pipe systems. Select the correct variant size and thread combination before ordering. Pressure rating and suitability may vary by item and installation conditions.
