Unidelta

Unidelta | Compression Clamp Saddle PN10 2 Bolt

Unidelta | Compression Clamp Saddle PN10 2 Bolt

R 33.00
R 33.00
Sale Sold out
Learn how Mobicred works
Taxes included. Shipping calculated at checkout.
Size

Unidelta Compression Clamp Saddle PN10 2 Bolt | PE Pipe Branch Saddle

The Unidelta Compression Clamp Saddle PN10 2 Bolt | PE Pipe Branch Saddle is a Unidelta compression saddle for creating a secure branch take-off on polyethylene pipe. It is suited to irrigation, agricultural, civil and commercial water installations where a neat, reliable saddle connection is required.

Best for:
Branch take-offs on polyethylene pipe for irrigation, agriculture, civil water distribution and commercial plumbing systems.
Available sizes:
20mm x 1/2inch to 50mm x 1inch (12 variants)
Key advantages
  • Reliable branch saddle for PE pipe take-offs
  • Pressure rated: PN10
  • Supplied in selected 2-bolt, 4-bolt or 6-bolt variants
  • Reinforced outlet design for dependable service

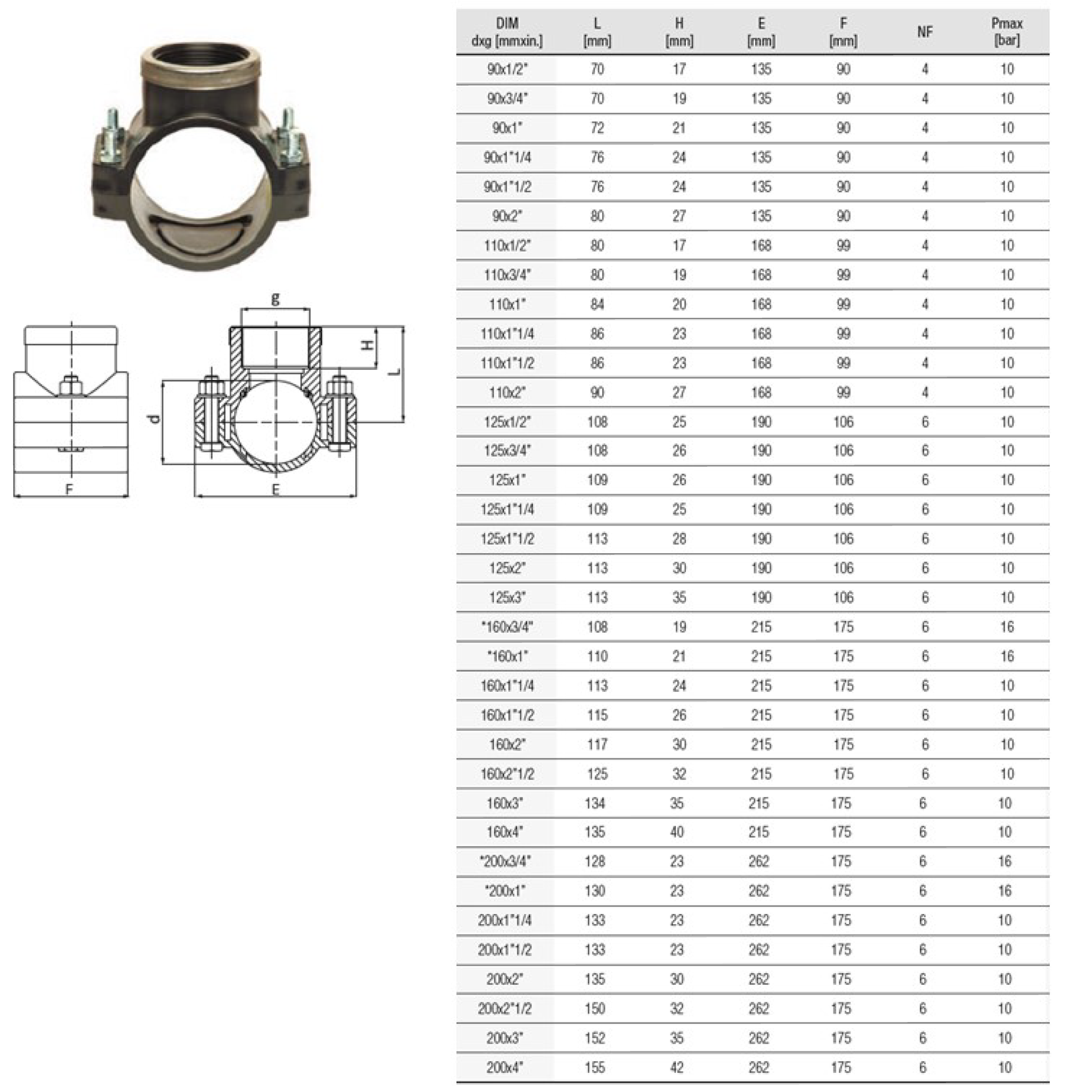

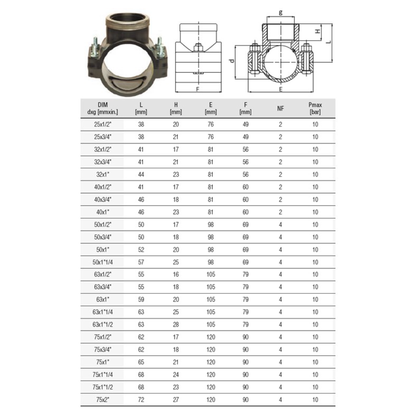

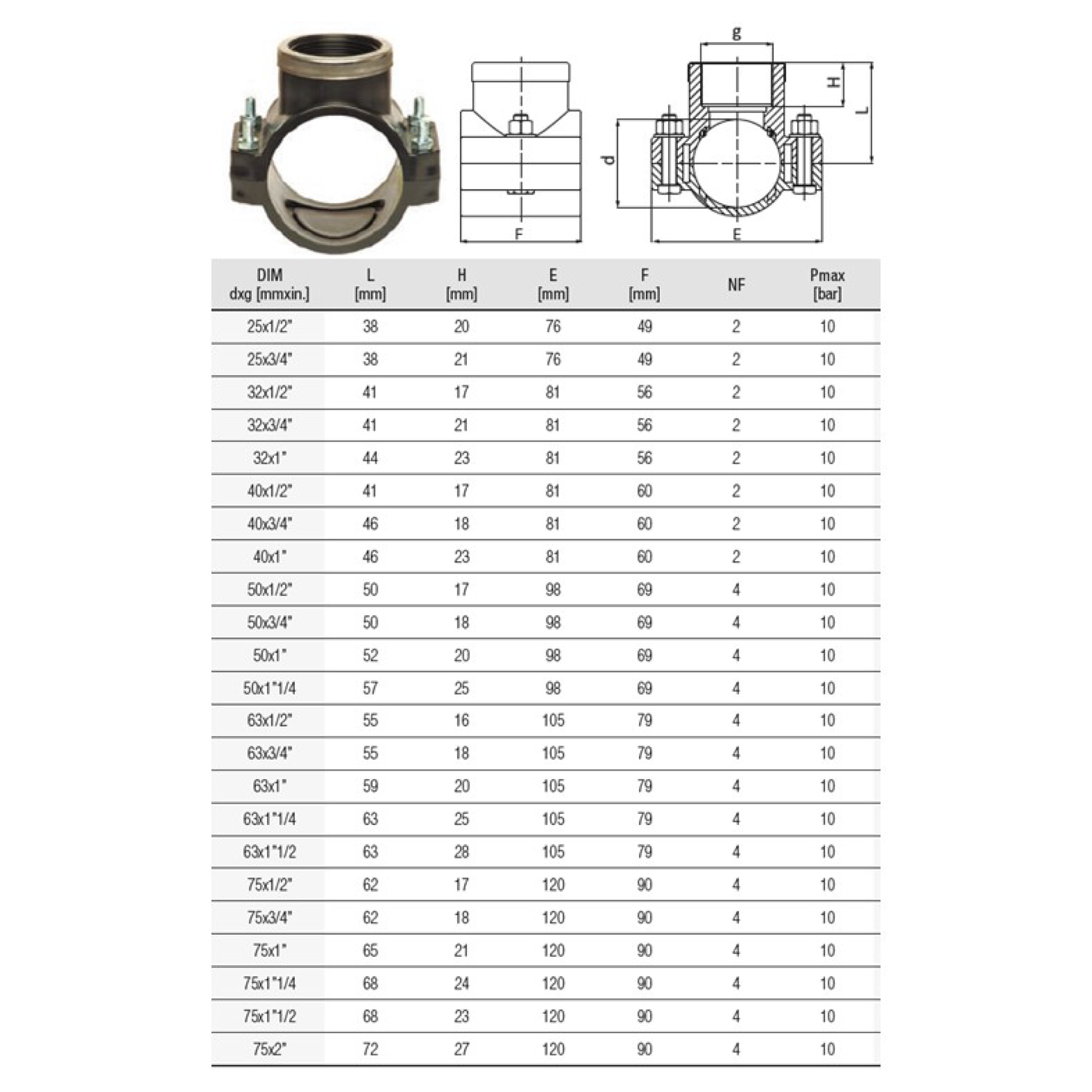

Technical details
Brand Unidelta
Connection system Mechanical compression connection for PE pipe
Pressure rating PN10
Temperature guide Up to 45°C within polyethylene pipe application limits
Material guide UV-stabilised polypropylene saddle body with nitrile rubber gasket and metal reinforcing/hardware components where applicable.
Standards guide Manufactured to recognised ISO, UNI and DIN reference standards with potable-water suitability guidance.
Installation guidance
  1. Cut the PE pipe square and remove burrs before assembly.
  2. Insert the pipe fully into the fitting body until it reaches the internal stop.
  3. Hand-tighten the nut, then tighten securely using the correct fitting tool where required.
  4. Always pressure-test the installation before covering or commissioning the line.

Guarantees

Manufacturer warranty applies against proven manufacturing defects

Materials

UV-stabilised polypropylene body

Shipping

3 - 5 Business Days

Additional Information

Unidelta compression range for PE pipe systems. Select the correct variant size and thread combination before ordering. Pressure rating and suitability may vary by item and installation conditions.

Technical information
